1NZ-FXE ENGINE CONTROL SYSTEM: SFI SYSTEM: P0505: Idle Control System Malfunction

DTC P0505 - Idle Control System Malfunction

MONITOR DESCRIPTION

The idle speed is controlled by the Electronic Throttle Control System (ETCS).
The ETCS is composed of the throttle motor which operates the throttle valve, and the throttle position sensor which detects the opening angle of the throttle valve.
The ECM controls the throttle motor to provide the proper throttle valve opening angle to obtain the target idle speed.

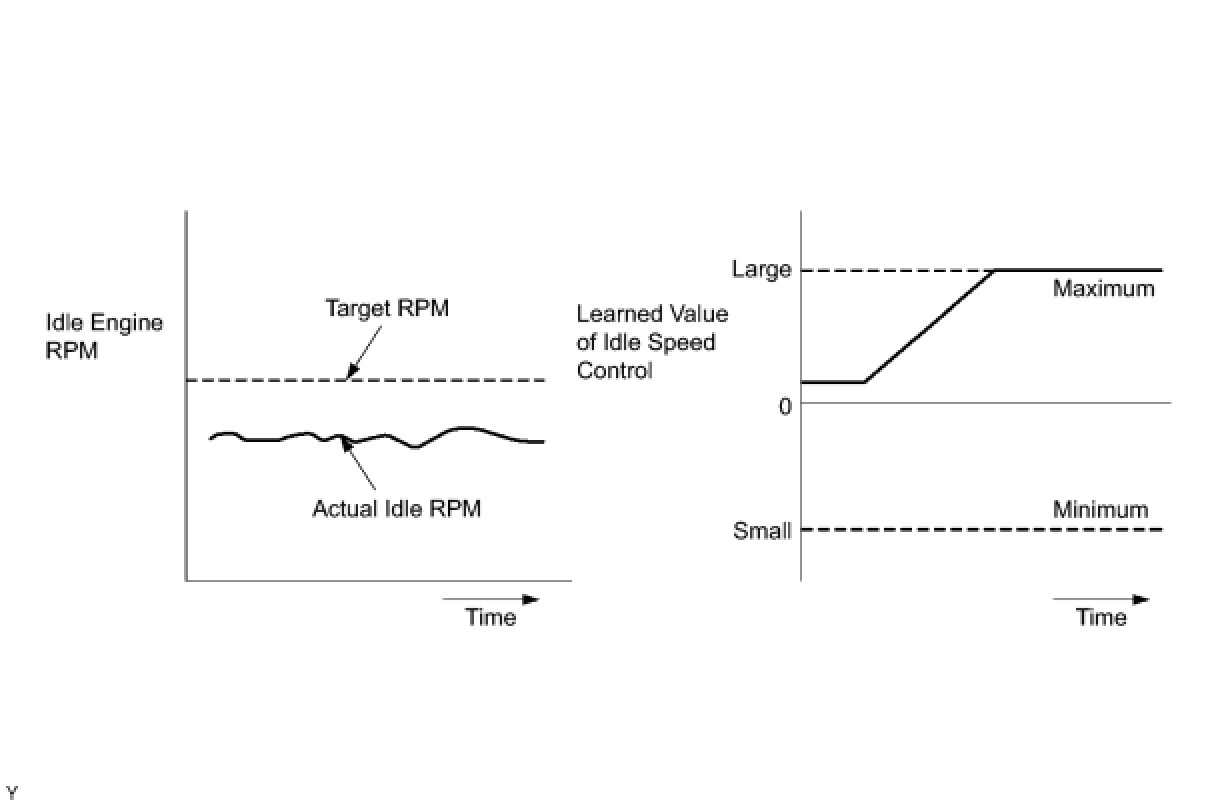

The ECM regulates the idle speed by opening and closing the throttle valve using the ETCS. If the actual idle RPM varies more than a specified amount or a learned value of the idle speed control remains at the maximum or minimum five times or more during a trip, the ECM concludes that there is a problem in the idle speed control ECM function. The ECM will turn on the MIL and a DTC will be set.
Example:
If the actual idle RPM varies from the target idle RPM by more than 200 (*1) rpm five times during a drive cycle, the ECM will turn on the MIL and a DTC will be set.
HINT: *1: RPM threshold varies depending on engine loads.

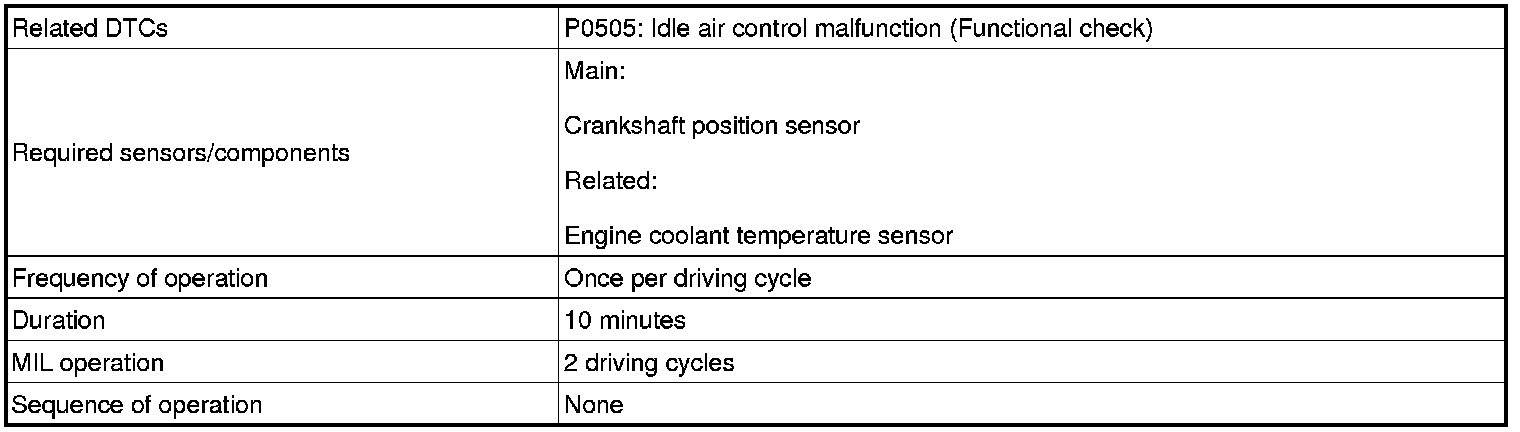

MONITOR STRATEGY

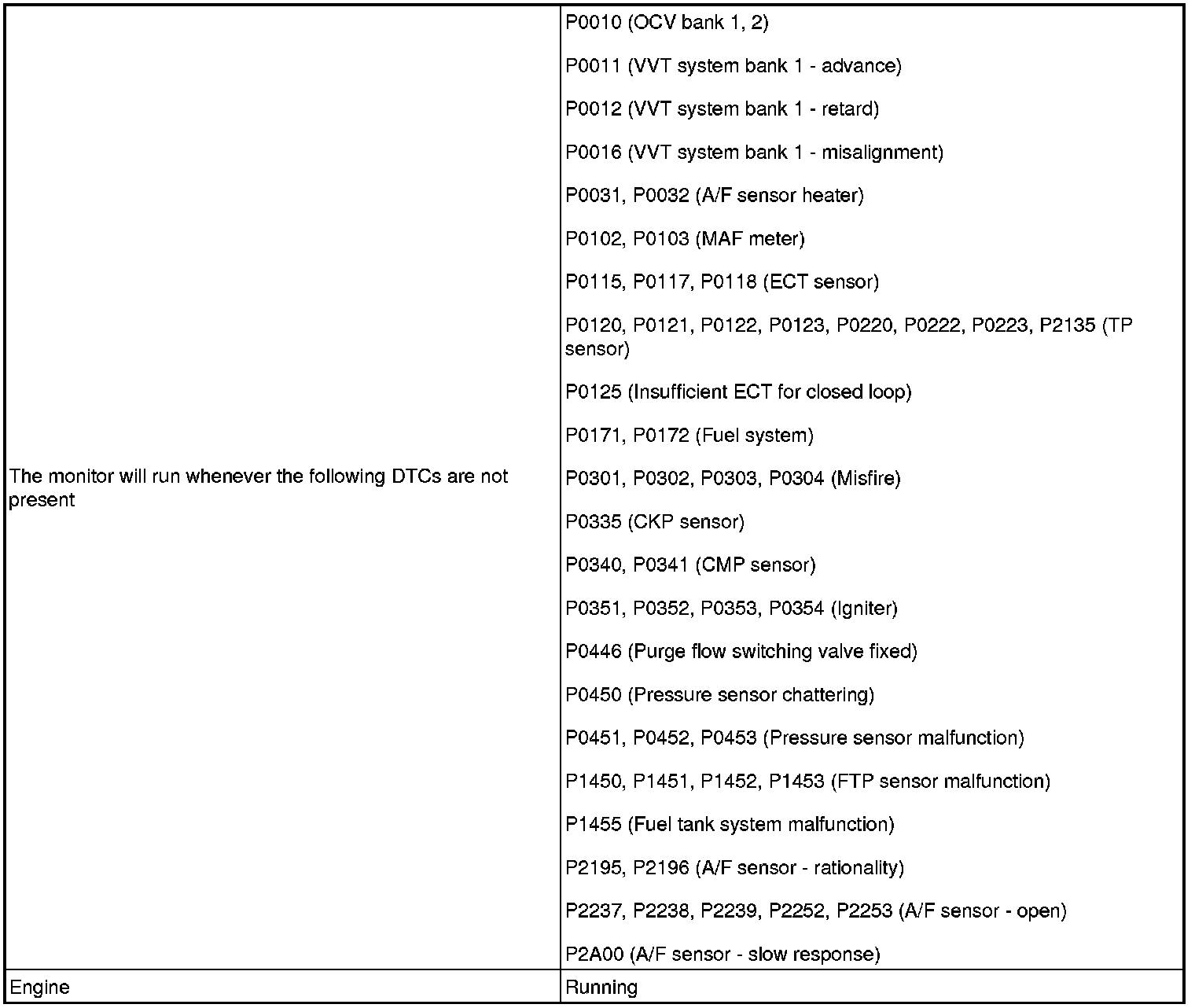

TYPICAL ENABLING CONDITIONS





TYPICAL MALFUNCTION THRESHOLDS





INSPECTION PROCEDURE
HINT: Read freeze frame data using Techstream. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can be helpful in determining whether the vehicle was running or stopped, whether the engine was warmed up or not, whether the air/fuel ratio was lean or rich, as well as other data recorded at the time of a malfunction Freeze Frame Data.

PROCEDURE

1. CHECK OTHER DTC OUTPUT (IN ADDITION TO DTC P0505)
(a) Connect Techstream to the DLC3.
(b) Turn the power switch ON (IG).
(c) Turn Techstream ON.
(d) Enter the following menus: Powertrain / Engine and ECT / Trouble Code.
(e) Read the DTCs.

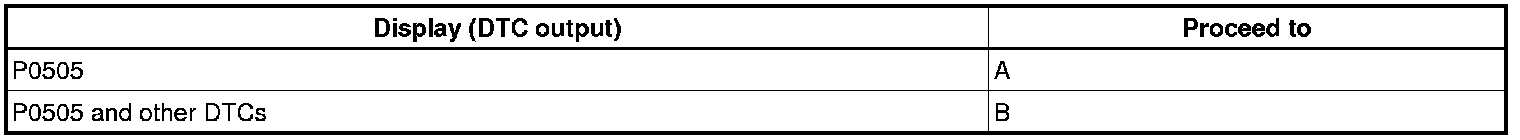

Result:





HINT: If any other codes besides P0505 are output, perform troubleshooting for those DTCs first.

B -- GO TO DTC CHART
A -- Continue to next step.

2. CHECK CONNECTION OF PCV HOSE
OK:
PCV hose is connected correctly and has no damage.
NG -- REPAIR OR REPLACE PCV HOSE
OK -- Continue to next step.

3. CHECK AIR INDUCTION SYSTEM
(a) Check for vacuum leaks in the air induction system.
OK:
No leakage in the air induction system.
NG -- REPAIR OR REPLACE AIR INDUCTION SYSTEM
OK -- CHECK ELECTRIC THROTTLE CONTROL SYSTEM
