P112 HYBRID VEHICLE CONTROL: HYBRID CONTROL SYSTEM: P0A08-264: DC / DC Converter Status Circuit

DTC P0A08-264 - DC / DC Converter Status Circuit

DESCRIPTION

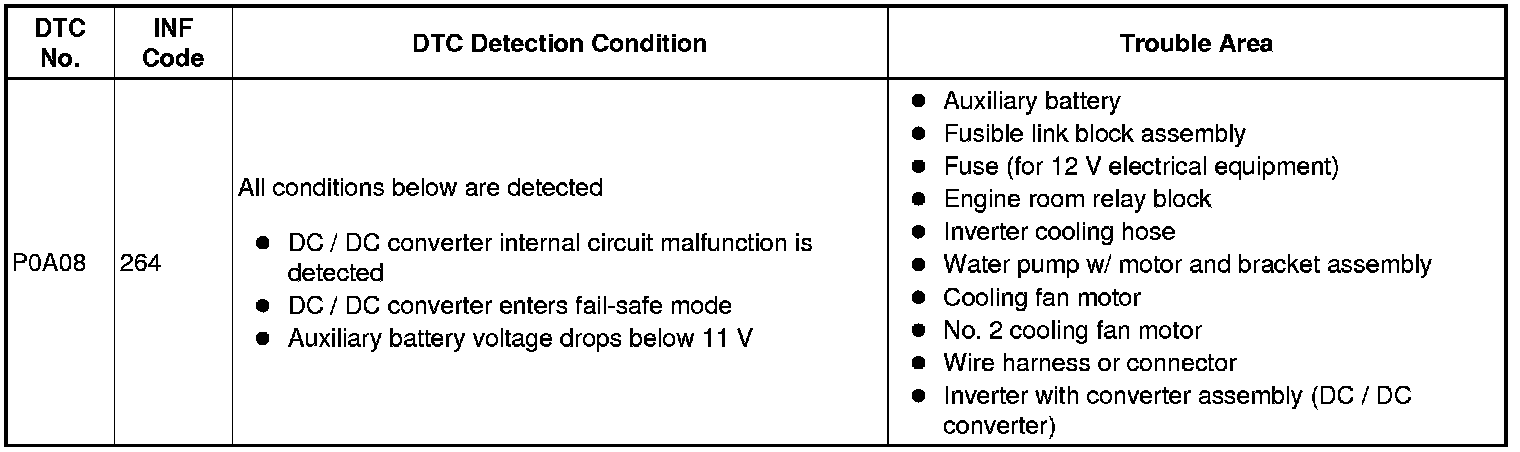

The HV Control ECU monitors the DC / DC converter circuit status via the NODD terminal. If the ECU detects an internal circuit malfunction in the converter and stops converter operation with its fail-safe function, causing the auxiliary battery voltage to drop below 11 V, the ECU outputs DTC P0A08 (INF 264).

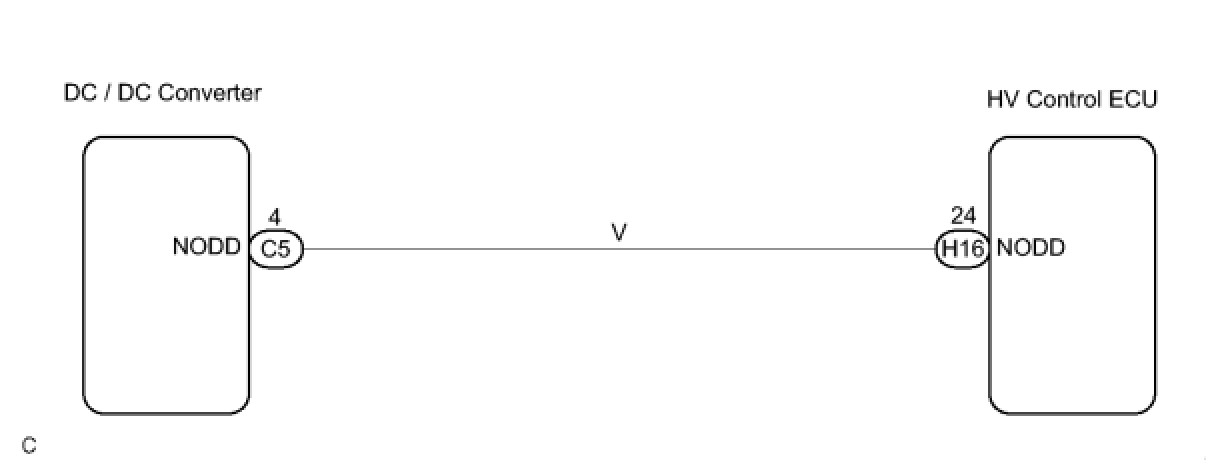

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK FOR DTC
(a) Clear the DTC(s) Hybrid Control System.
(b) Connect the Techstream to the DLC3.
(c) Turn the power switch ON (IG).
(d) Read DTC(s).

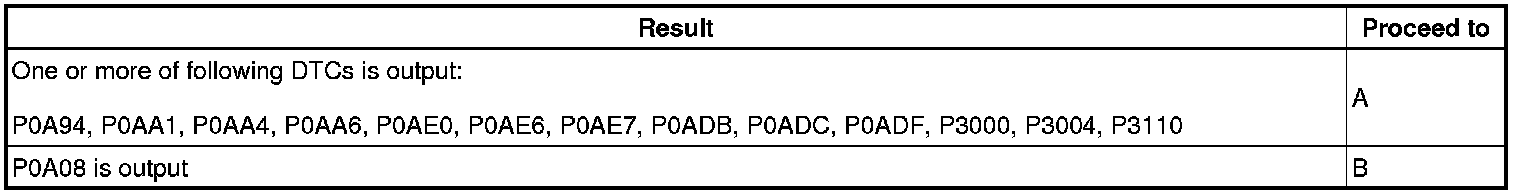

Result:






A -- GO TO DIAGNOSTIC TROUBLE CODE CHART
B -- Continue to next step.

2. CHECK CABLE CONNECTION FROM AUXILIARY BATTERY TERMINAL
(a) Turn the power switch OFF.
(b) Check the auxiliary battery (12 V) cable connections at places listed below:

- The battery positive and negative terminals are not loose.
- The body ground of the battery negative cable is not loose.
- The FL block nut is not loose.
OK:
They are not loose.

NG -- CONNECT OR INSTALL SECURELY
OK -- Continue to next step.

3. CHECK CONNECTION OF CONNECTORS (FUSIBLE LINK BLOCK ASSEMBLY)




(a) Check that the F15 and F16 connectors are securely connected to the fusible link block assembly.
OK:
Connectors are connected securely.
NG -- CONNECT OR INSTALL SECURELY
OK -- Continue to next step.

4. CHECK CONNECTOR (FUSIBLE LINK BLOCK ASSEMBLY)
(a) Check that the F15 and F16 connector terminals do not have burnout.
OK:
There is no burnout.
NG -- REPAIR OR REPLACE CONNECTOR
OK -- Continue to next step.

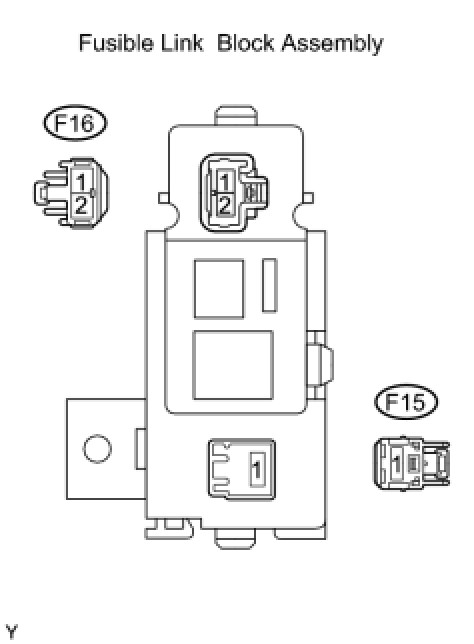

5. INSPECT FUSIBLE LINK BLOCK ASSEMBLY

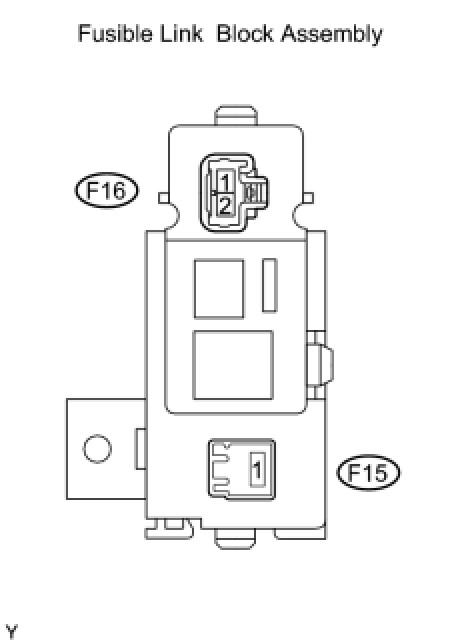

(a) Measure the resistance between the F15 fusible link block assembly and body ground.
Standard resistance:





If the result is not as specified, proceed to NG-A.

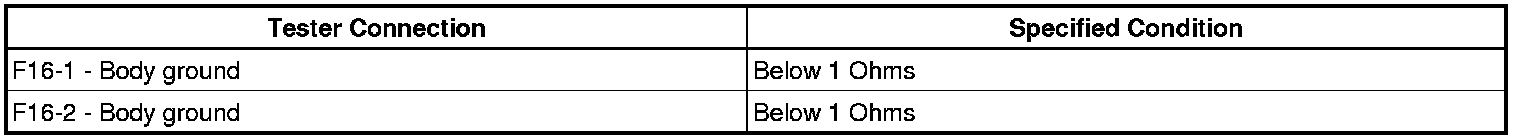

(b) Measure the resistance between the F16 fusible link block assembly and body ground.
Standard resistance:





- If the result is not as specified, proceed to NG-B.

NG-B -- REPLACE DC/DC-S FUSE AND REPAIR THE SHORT CIRCUITS
NG-A -- REPLACE FUSIBLE LINK BLOCK ASSEMBLY AND REPAIR THE SHORT CIRCUITS
OK -- Continue to next step.

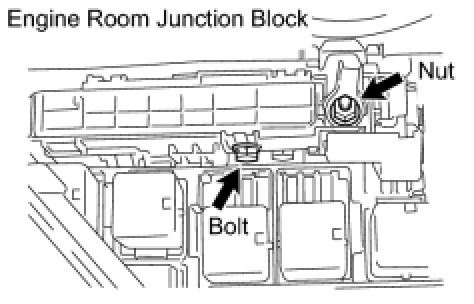

6. CHECK INSTALLATION CONDITION OF DC / DC FUSE (ENGINE ROOM JUNCTION BLOCK)




(a) Check the installation condition of the DC / DC fuse.
OK:
No bolts or nuts are loose.
NG -- TIGHTEN BOLT OR NUT
OK -- Continue to next step.

7. CHECK FUSIBLE LINK BLOCK ASSEMBLY (100A DC / DC)
(a) Disconnect the battery negative terminal.




(b) Measure the resistance of the DC/DC fuse.
Standard resistance:
Below 1 Ohms
NG -- CHECK INVERTER WITH CONVERTER ASSEMBLY (AMD TERMINAL)
OK -- Continue to next step.

8. CHECK CONNECTION OF CONNECTORS (HV CONTROL ECU)

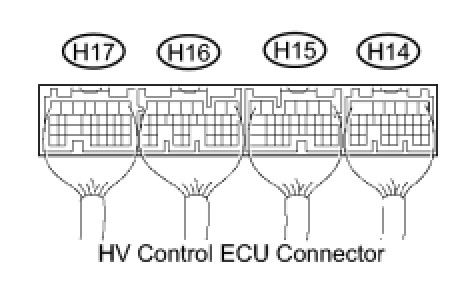

(a) Check that the H14, H15, H16 and H17 ECU connectors are securely connected.
OK:
Connectors are connected securely.
NG -- CONNECT SECURELY
OK -- Continue to next step.

9. CHECK CONNECTION OF CONNECTORS (INVERTER WITH CONVERTER ASSEMBLY)

Inverter with converter assembly:
CAUTION: Be sure to wear insulated gloves.
(a) Turn the power switch OFF.
(b) Remove the service plug grip Hybrid Control System.
CAUTION: Keep the removed service plug grip in your pocket to prevent other technicians from reconnecting it while you are servicing the vehicle.
NOTE: After removing the service plug grip, do not operate the power switch as it may damage the hybrid vehicle control ECU.
(c) Leave the vehicle as is for 5 minutes.
HINT: It takes 5 minutes for the high voltage condenser in the inverter to discharge its electricity.
(d) Remove the inverter cover Removal.

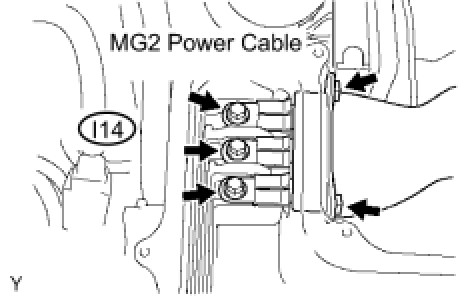

(e) Remove the 5 bolts to disconnect the MG2 power cable.

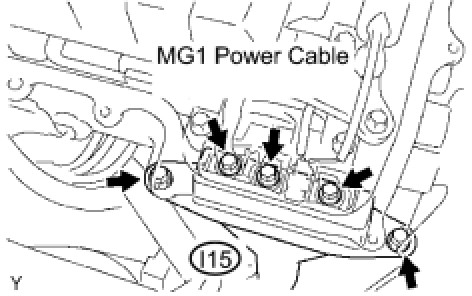

(f) Remove the 5 bolts to disconnect the MG1 power cable.

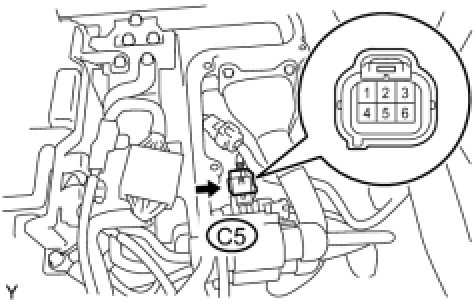

(g) Check the connection condition of the C5 connector.
OK:
Connector has been connected securely.
NG -- CONNECT SECURELY
OK -- Continue to next step.

10. CHECK CONNECTION OF CONNECTOR (INVERTER WITH CONVERTER ASSEMBLY)

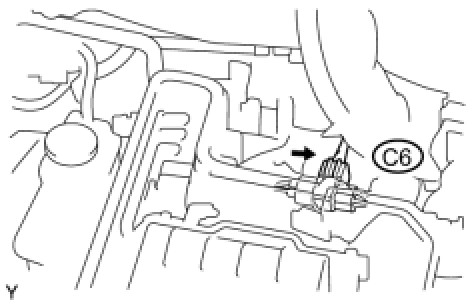

(a) Check that the C6 connector is connected securely.
OK:
Connector is connected securely.
OK -- CHECK HARNESS AND CONNECTOR (INVERTER WITH CONVERTER ASSEMBLY - BATTERY AND BODY GROUND)
NG -- Continue to next step.

11. CHECK INVERTER WITH CONVERTER ASSEMBLY




(a) Disconnect the C6 connector.
(b) Check that the C6 connector terminal does not have burnout.
OK:
There is no burnout.
NG -- REPAIR OR REPLACE CONNECTOR
OK -- CONNECT SECURELY
12. CHECK HARNESS AND CONNECTOR (INVERTER WITH CONVERTER ASSEMBLY - BATTERY AND BODY GROUND)

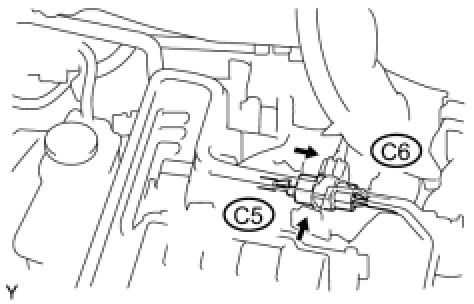

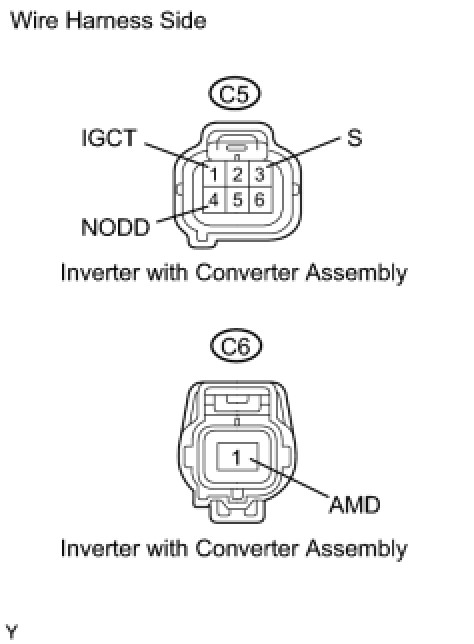

(a) Disconnect the C5 and C6 converter inverter connectors.
(b) Turn the power switch ON (IG).
(c) Measure the voltage of the wire harness side connectors.
Standard voltage:





(d) Measure the resistance between the wire harness side connector.
Standard resistance:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

13. CHECK OPERATION OF INVERTER WITH CONVERTER ASSEMBLY




(a) Connect the C5 and C6 converter inverter connectors.
(b) Set the electrical tester with the AC/DC 400 A probe to the wire harness of the C6 connector.
(c) Connect the I14 and I15 connectors (color: orange) to the inverter.
(d) Install the inverter cover.
(e) Install the service plug grip.
(f) Turn the power switch ON (READY).
(g) Wait 5 minutes.
(h) Operate the electrical devices as listed below:

- Set the light control switch to High beam.
- Set the heater blower fan to HI.
- Turn on the defogger.
- Depress the brake pedal.
- Press all the switches of the window regulator master switch at the same time.
- Turn the steering wheel to the right or left.
(i) Measure the amperage and voltage.
Standard amperage:






Standard voltage:






OK -- CHECK COOLANT LEVEL OF INVERTER WITH CONVERTER ASSEMBLY
NG -- Continue to next step.

14. INSPECT FUSE
(a) Remove the EPS-H, HEAD MAIN-H, H-LP LO LH, H-LP LO RH, H-LP HI LH, and H-LP HI RH fuses from the engine room relay block.
(b) Remove the DEF-H, PWR-H, FR-DOOR, STOP, M/HTR, A/C (HTR) fuses from the driver side junction block.
(c) Measure the resistance of the fuses.
Standard resistance:
Below 1 Ohms
NG -- REPLACE FUSE AND REPAIR THE SHORT CIRCUITS
OK -- Continue to next step.

15. CHECK COOLANT LEVEL OF INVERTER WITH CONVERTER ASSEMBLY
(a) Check the coolant level in the reservoir tank.
OK:
Coolant level in the reservoir tank is between F and L line.
NG -- ADD COOLANT
OK -- Continue to next step.

16. CHECK INVERTER COOLANT HOSE
(a) Check if the inverter cooling hoses are bent, twisted, damaged or clogged.
OK:
Hoses are not bent, twisted, damaged, or clogged.
NG -- REPAIR OR REPLACE HOSE
OK -- Continue to next step.

17. CHECK CONNECTOR CONNECTION CONDITION (WATER PUMP CONNECTOR AND SHORT CONNECTOR)

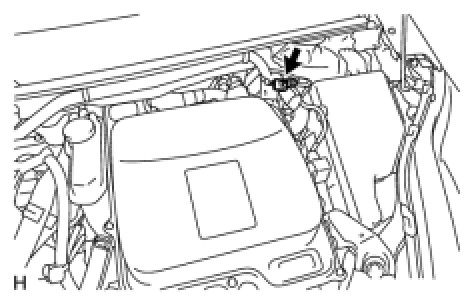

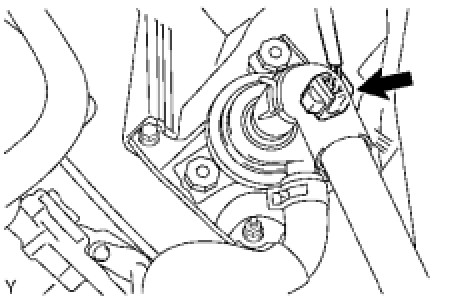

(a) Check the connection condition of the water pump connector.
OK:
Connector has been connected securely and there is no poor connection.




(b) Check the connection condition of the short connector.
OK:
Connector has been connected securely and there is no poor connection.
NG -- CONNECT SECURELY
OK -- Continue to next step.

18. CHECK OPERATION OF WATER PUMP WITH MOTOR ASSEMBLY
(a) Turn the power switch ON (IG).
(b) Check the operation of the motor.
OK:
Coolant surface in reservoir tank has waves.
NG -- CHECK WATER PUMP W/ MOTOR AND BRACKET ASSEMBLY
OK -- Continue to next step.

19. CHECK CONNECTION CONDITION OF COOLING FAN MOTOR CONNECTOR (LOOSENESS AND POOR CONNECTION)

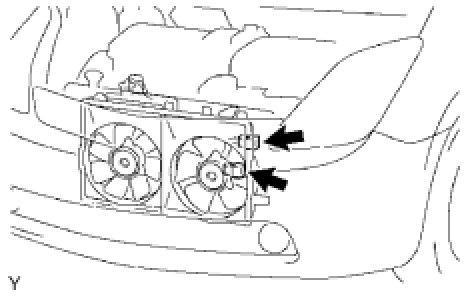

(a) Check the connection condition of the fan connectors.
OK:
Connectors have been connected securely.
NG -- CONNECT SECURELY
OK -- Continue to next step.

20. INSPECT COOLING FAN MOTOR
(a) Inspect cooling fan motor Testing and Inspection.
NG -- REPLACE COOLING FAN MOTOR
OK -- REPLACE INVERTER WITH CONVERTER ASSEMBLY
21. CHECK WATER PUMP W/ MOTOR AND BRACKET ASSEMBLY




(a) Remove the water pump w/ motor and bracket assembly.
(b) Connect the battery positive terminal to terminal 2 and the battery negative terminal to terminal 1.
(c) Check that the water pump w/ motor and bracket assembly operates properly.
NOTICE:
- Do not connect the positive and negative poles of the battery to the wrong terminals.
- Complete the check within 10 seconds of connection.

OK:
Water pump w/ motor and bracket assembly operates properly.
NG -- REPLACE WATER PUMP W/ MOTOR AND BRACKET ASSEMBLY
OK -- REPAIR OR REPLACE HARNESS OR CONNECTOR (WATER PUMP W/MOTOR AND BRACKET ASSEMBLY POWER SOURCE CIRCUIT)
22. CHECK INVERTER WITH CONVERTER ASSEMBLY (AMD TERMINAL)
(a) Disconnect the battery negative terminal.




(b) Disconnect the C6 connector.

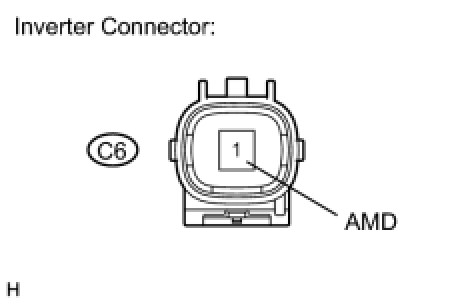

(c) Measure the resistance between the C6 connector terminal of the inverter with converter assembly and body ground.
Standard resistance:





(d) Connect the C6 connector.
NG -- REPLACE INVERTER WITH CONVERTER ASSEMBLY AND FUSIBLE LINK BLOCK (DC/DC FUSE)
OK -- REPLACE FUSIBLE LINK BLOCK (DC/DC FUSE) AND REPAIR THE SHORT CIRCUITS
