P0A0D-350

P112 HYBRID VEHICLE CONTROL: HYBRID CONTROL SYSTEM: P0A0D-350: High Voltage System Inter-Lock Circuit High

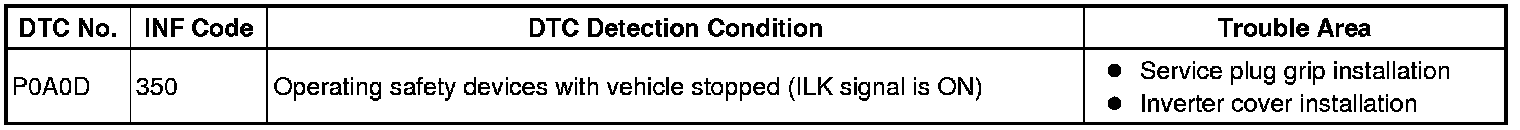

DTC P0A0D-350 - High Voltage System Inter-Lock Circuit High

DESCRIPTION

If the HV control ECU detects the operation of the safety devices (removal of the service plug grip and inverter cover) while the vehicle is stopped (vehicle speed below 3 mph [5 km/h]), it will shut down the system main relays. If the safety devices are correctly reinstalled, it will resume the normal operation after the power source is supplied again. If it does not, there is a possibility of an open circuit, so perform the same inspection as the DTC P0A0D (INF 351).






INSPECTION PROCEDURE

PROCEDURE

1. CHECK SERVICE PLUG GRIP INSTALLATION
(a) Check that the service plug grip has been installed properly.
OK:
The service plug grip has been installed properly
NG -- CORRECTLY REINSTALL
OK -- Continue to next step.

2. CHECK INVERTER COVER INSTALLATION
(a) Check that the inverter cover has been installed properly.
OK:
The Inverter cover has been installed properly
NG -- CORRECTLY REINSTALL
OK -- GO TO DTC P0A0D-351
