P112 HYBRID VEHICLE CONTROL: HYBRID CONTROL SYSTEM: P0A1D-134: Hybrid Powertrain Control Module

DTC P0A1D-134 - Hybrid Powertrain Control Module

DTC P0A1D-135 - Hybrid Powertrain Control Module

DTC P0A1D-570 - Hybrid Powertrain Control Module

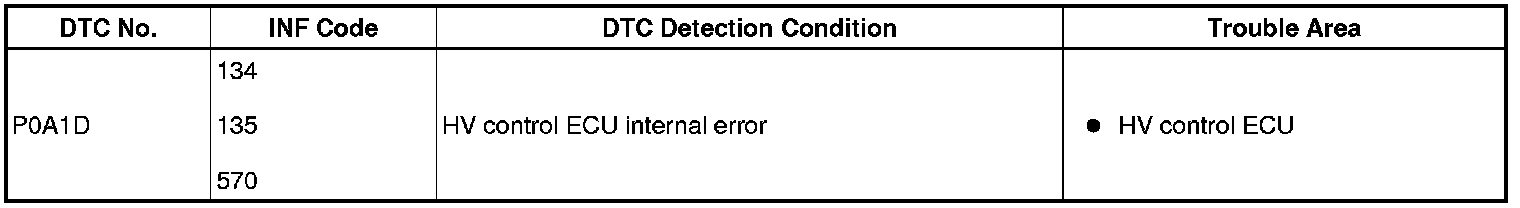

DESCRIPTION

The HV control ECU performs self-checks to detect an internal operating malfunction in the ECU.






MONITOR DESCRIPTION

The HV control ECU performs diagnostic monitoring to verify proper operation of vehicle systems.
One of these monitors the rationality of internal analog (signal) to digital conversions.
The HV control ECU monitors the internal A/D (Analog / Digital Converter) value. If there is an A/D malfunction, the HV control ECU will illuminate the MIL and set a DTC.

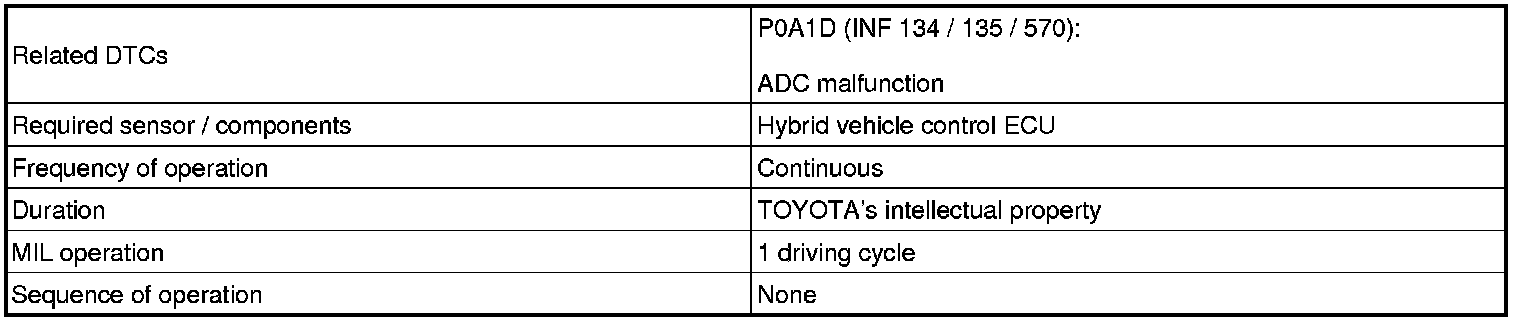

MONITOR STRATEGY





TYPICAL ENABLING CONDITIONS





TYPICAL MALFUNCTION THRESHOLDS





COMPONENT OPERATING RANGE





INSPECTION PROCEDURE

If any of the above information (INF) codes are present, replace the HV control ECU.

PROCEDURE

1. REPLACE HYBRID VEHICLE CONTROL ECU
(a) Replace the hybrid vehicle control ECU Removal.
NEXT -- COMPLETED
