P1151

1NZ-FXE ENGINE CONTROL SYSTEM: SFI SYSTEM: P1151: Coolant Heat Storage Tank

DTC P1151 - Coolant Heat Storage Tank

DESCRIPTION





This system uses an electric pump to supply hot coolant stored in the coolant heat storage (CHS) tank into the cylinder head of the engine, in order to optimize engine starting combustion and reduce the amount of unburned gas that is discharged while the engine is started. Before the engine starts, the ECM operates the electric water pump to direct the hot coolant in the CHS tank into the engine, in order to heat the cylinder head (this process is called "preheat mode"). The duration of the operation of the electric water pump is variable, depending on the temperature of the cylinder head. During normal operation of the engine, the water valve opens the passage between the cylinder head and the heater and closes the passage between the cylinder head and the tank. During the preheat mode in which the cylinder head is heated, the water valve opens the passage between the tank and the cylinder head, in order to allow the coolant to flow from the tank to the cylinder head. At this time, in order to warm up the intake port quickly before the engine is started, the coolant flows in the reverse direction.
This system consists of the CHS tank, CHS water pump, CHS tank outlet temperature sensor, water valve, and a soak timer that is built in the ECM.






MONITOR DESCRIPTION

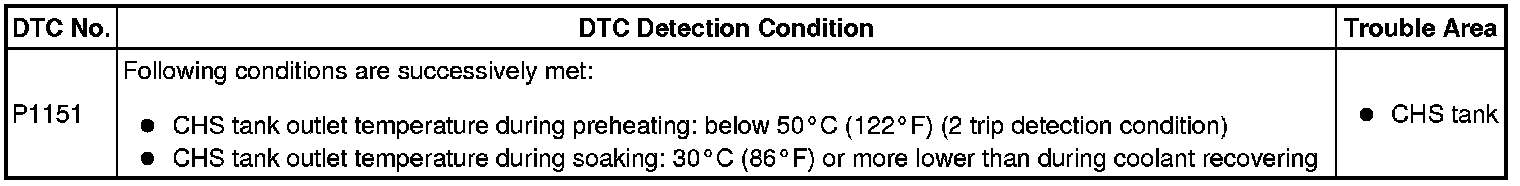

The ECM detects a malfunction in the coolant heat storage (CHS) system with the CHS tank coolant temperature, the position of the water valve, the running condition of the engine and the operating condition of the soak timer. The soak timer built in the ECM prompts the ECM to actuate the water pump 5 hours after the HV main system has been turned OFF by using the power switch. The ECM then checks the heat retention condition of the CHS tank. In order to ensure the reliable malfunction detection, the ECM detects the CHS tank heat retention malfunction in two ways. Thus, when the following two detection conditions are consecutively met, the ECM determines that the heat retention has deteriorated and sets a DTC.
(1) During preheating, the CHS tank outlet water temperature is below 50°C (122°F) (2 trip detection logic).
(2) During soaking, the CHS tank outlet temperature is more than 30°C (86°F) lower than that during the got coolant recovery.

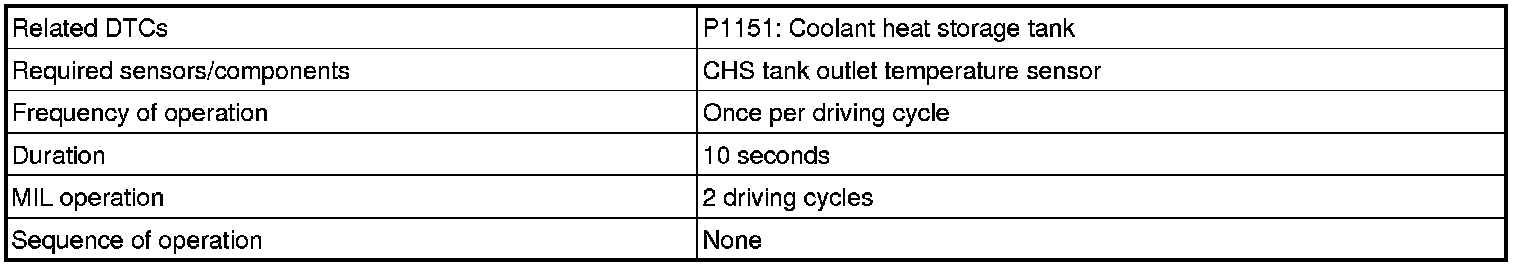

MONITOR STRATEGY

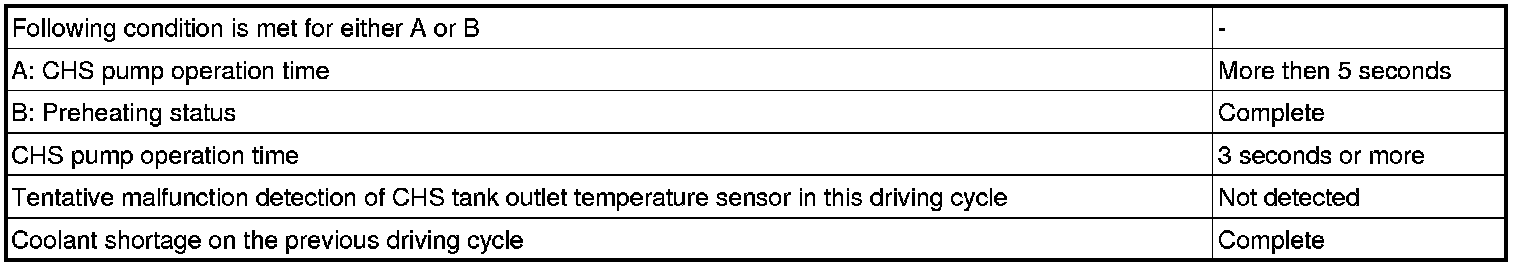

TYPICAL ENABLING CONDITIONS

All:

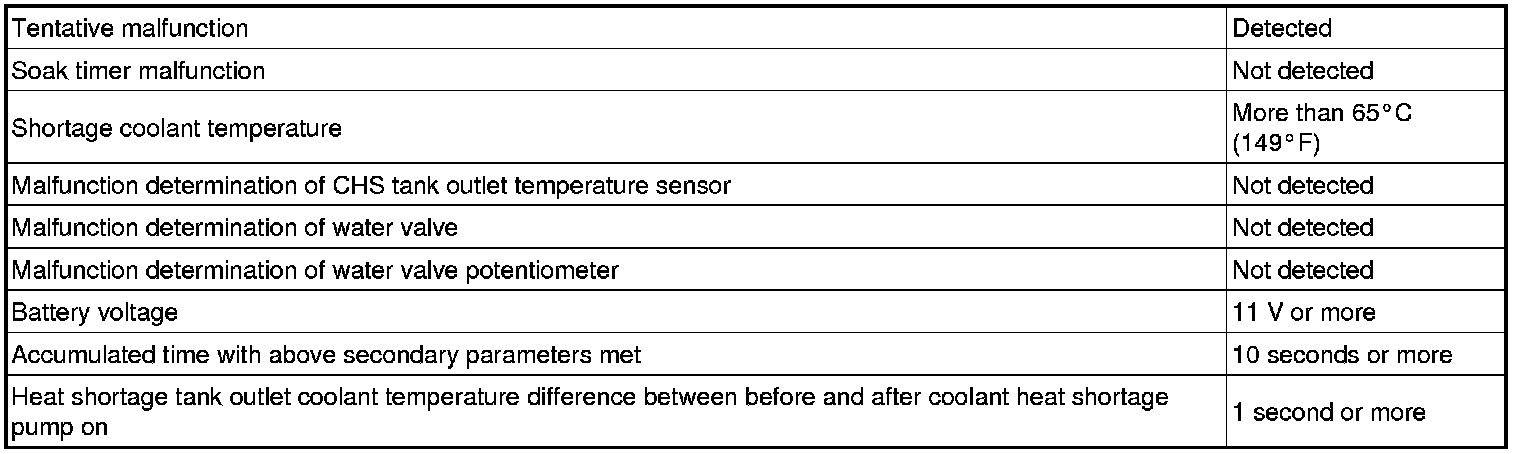

Case 1:





Case 2:





TYPICAL MALFUNCTION THRESHOLDS

Case 1:





Case 2:





INSPECTION PROCEDURE
CAUTION: Be careful when replacing any part in the system or changing the coolant because the coolant in the heat storage tank is hot even if the engine and the radiator are cold.
NOTE: If air breeding is not performed completely, this DTC may be detected after changing the coolant.
HINT:
- To check the coolant heat storage (CHS) system, the ECM may cause the water pump of the CHS system to operate 5 hours after the power switch has been turned OFF.
- Read freeze frame data using Techstream. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can be helpful in determining whether the vehicle was running or stopped, whether the engine was warmed up or not, whether the air/fuel ratio was lean or rich, as well as other data recorded at the time of a malfunction Freeze Frame Data.

PROCEDURE

1. REPLACE COOLANT HEAT STORAGE TANK
NEXT -- REPAIR COMPLETED
