P112 HYBRID VEHICLE CONTROL: HYBRID CONTROL SYSTEM: P3108-535: A/C Amplifier Communication Circuit Malfunction

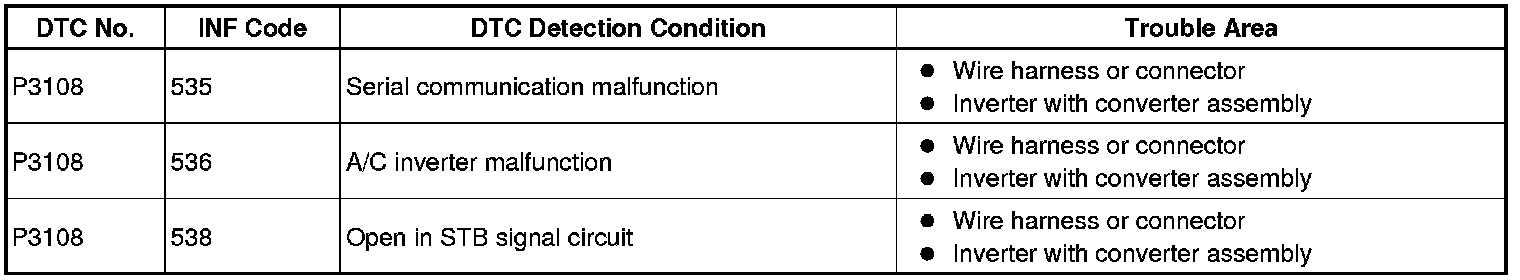

DTC P3108-535 - A/C Amplifier Communication Circuit Malfunction

DTC P3108-536 - A/C Amplifier Communication Circuit Malfunction

DTC P3108-538 - A/C Amplifier Communication Circuit Malfunction

DESCRIPTION

The HV control ECU detects a wiring malfunction in the serial communication line of the A/C inverter.

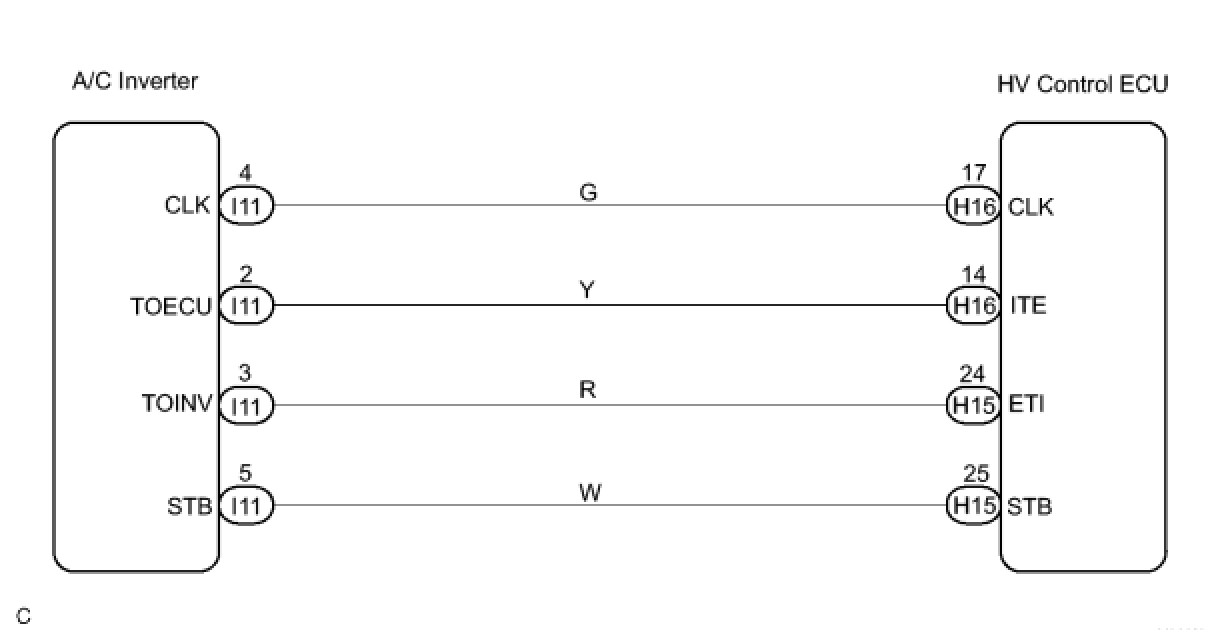

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK HARNESS AND CONNECTOR (HYBRID VEHICLE CONTROL ECU - A/C INVERTER)

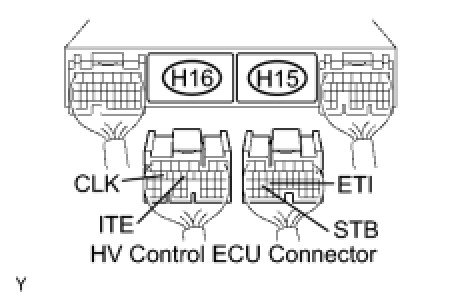

(a) Disconnect the H15 and H16 HV control ECU connectors.

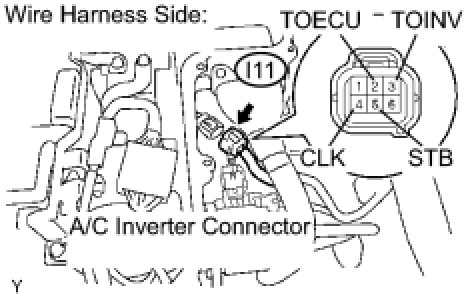

(b) Disconnect the I11 A/C inverter connector.
(c) Turn the power switch ON (IG).
(d) Measure the voltage between the terminals of the HV control ECU connector and body ground.

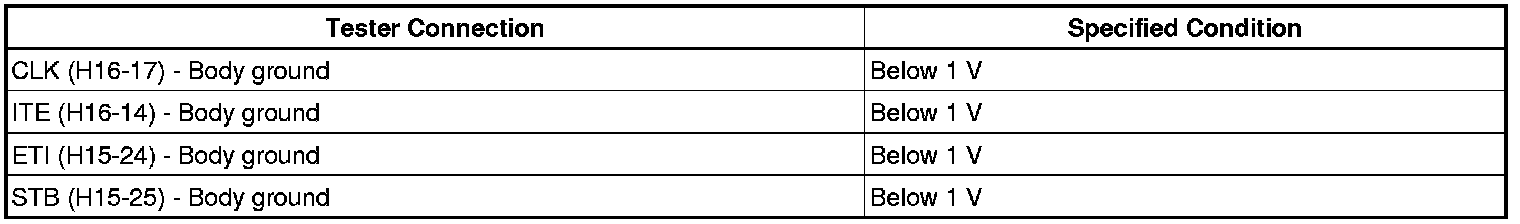

Standard voltage:





(e) Turn the power switch OFF.
(f) Measure the resistance between the wire harness side connectors.

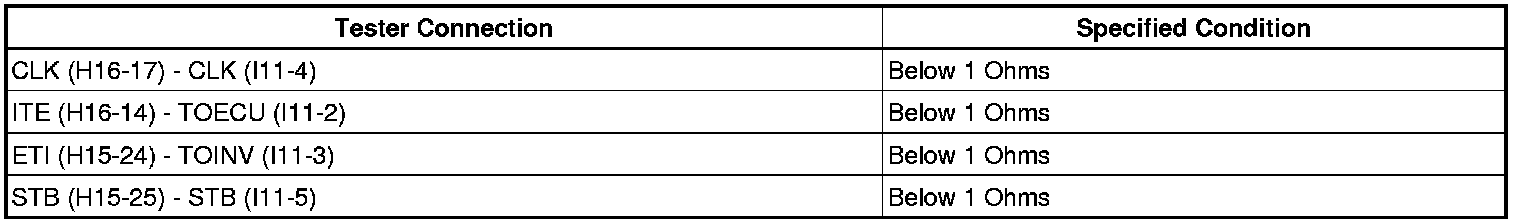

Standard resistance (Check for open):

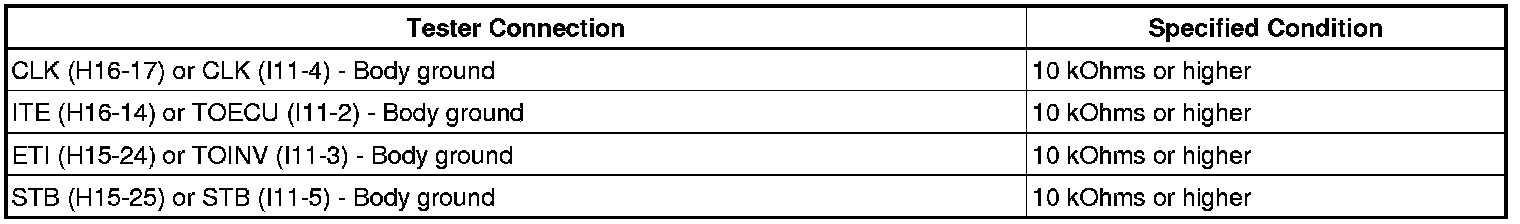

Standard resistance (Check for short)





(g) Reconnect the A/C inverter connector.
(h) Reconnect the HV control ECU connectors.
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- REPLACE INVERTER WITH CONVERTER ASSEMBLY
