Installation

NAVIGATION: NAVIGATION ANTENNA: INSTALLATION

INSTALLATION





1. INSTALL NAVIGATION ANTENNA ASSEMBLY

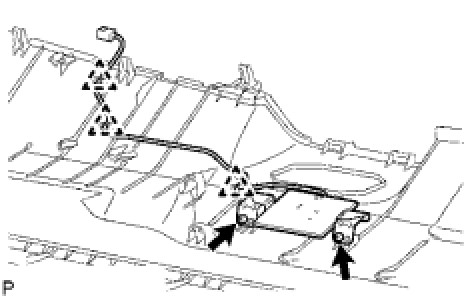

(a) Install the navigation antenna with the 2 screws and attach the 3 clamps.
2. INSTALL INSTRUMENT PANEL SUB-ASSEMBLY
(a) Install the instrument panel Installation.
3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
4. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
