Removal

AUDIO / VISUAL: RADIO ANTENNA CORD: REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE ROOF HEADLINING ASSEMBLY
(a) Remove the roof headlining Removal.

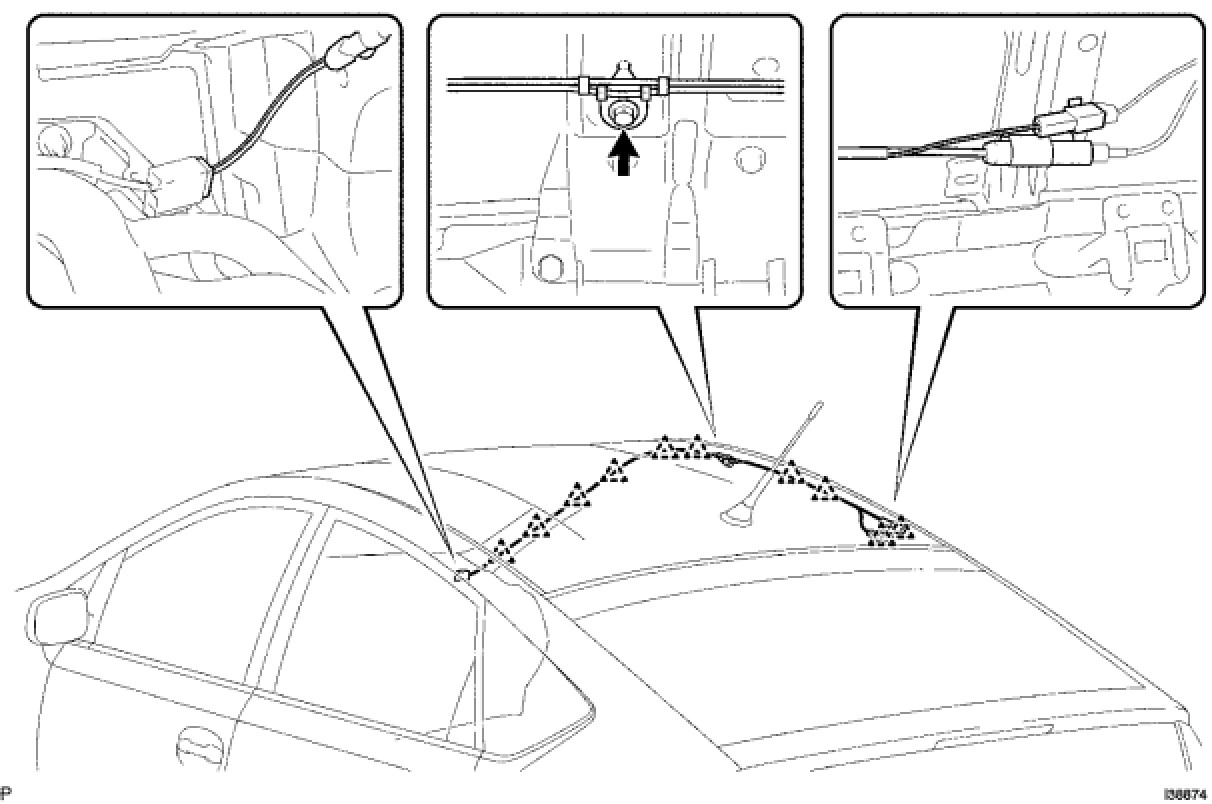

3. REMOVE ANTENNA CORD SUB-ASSEMBLY





(a) Disconnect the connector.
(b) Remove the 10 clamps, ground bolt and antenna cord.
4. REMOVE INSTRUMENT PANEL SUB- ASSEMBLY
(a) Remove the instrument panel Removal.

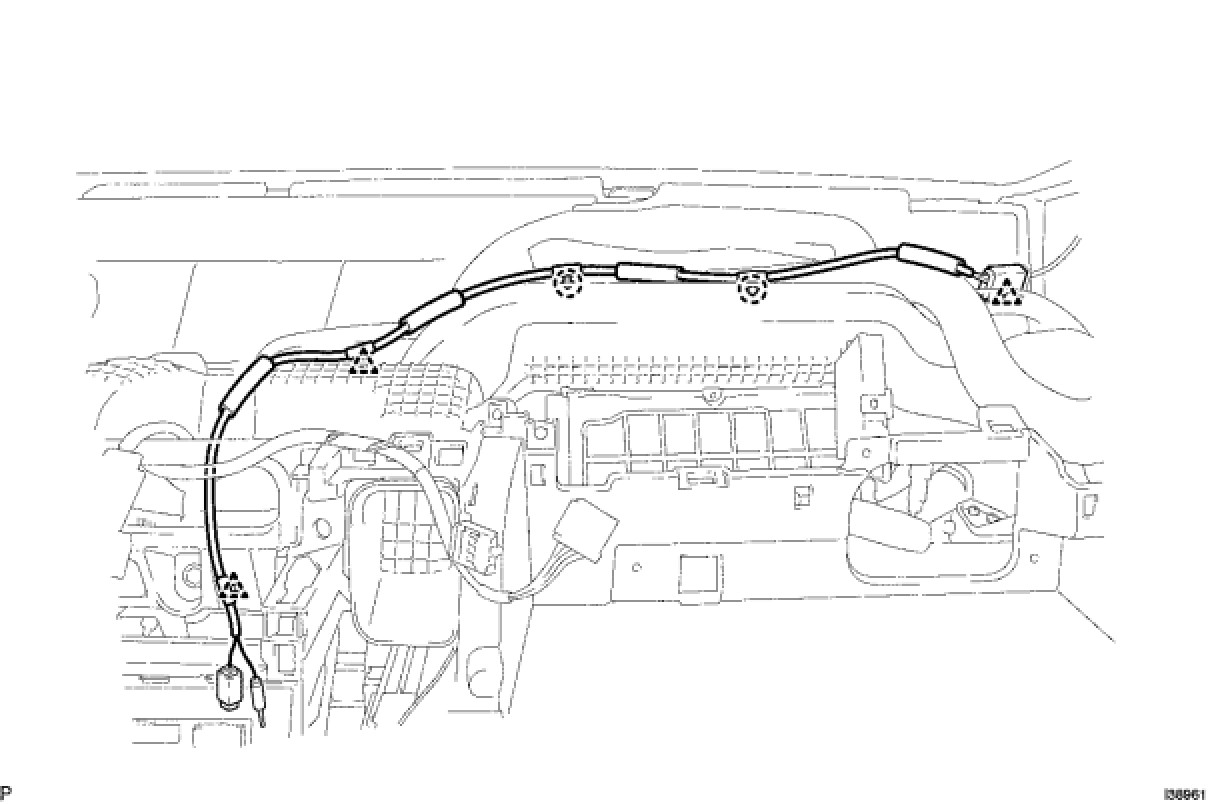

5. REMOVE NO. 2 ANTENNA CORD SUB-ASSEMBLY
(a) Disconnect the connector.
(b) Detach the 3 clamps and 2 claws, and then remove the antenna cord.
