Installation

AUDIO / VISUAL: RADIO ANTENNA HOLDER: INSTALLATION

INSTALLATION

1. INSTALL ANTENNA (CORD / POLE SEPARATE TYPE) HOLDER ASSEMBLY

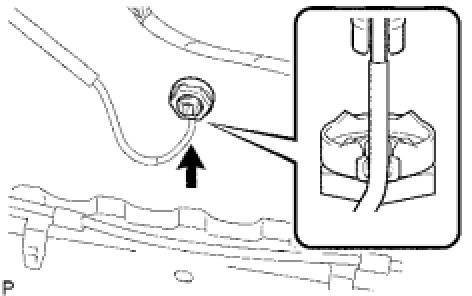

(a) Install the antenna holder assembly on the roof and align the antenna cord with the antenna nut cutout.
(b) Tighten the antenna holder assembly with the antenna nut.
Torque: 5.0 Nm (51 kgf-cm, 44 in-lbf)
(c) Attach the clamp.
(d) Connect the connector.
2. INSTALL ROOF HEADLINING ASSEMBLY
(a) Install the roof headlining Installation.
3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
4. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
