Removal

AUDIO / VISUAL: RADIO ANTENNA HOLDER: REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE ROOF HEADLINING ASSEMBLY
(a) Remove the roof headlining Removal.
3. REMOVE ANTENNA (CORD / POLE SEPARATE TYPE) HOLDER ASSEMBLY





(a) Disconnect the connector.

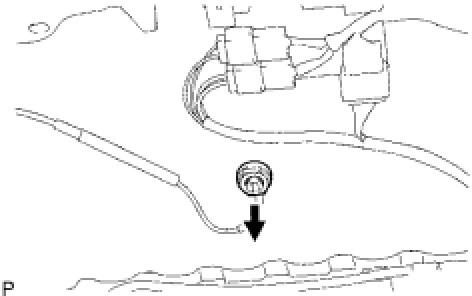

(b) Remove the antenna nut.

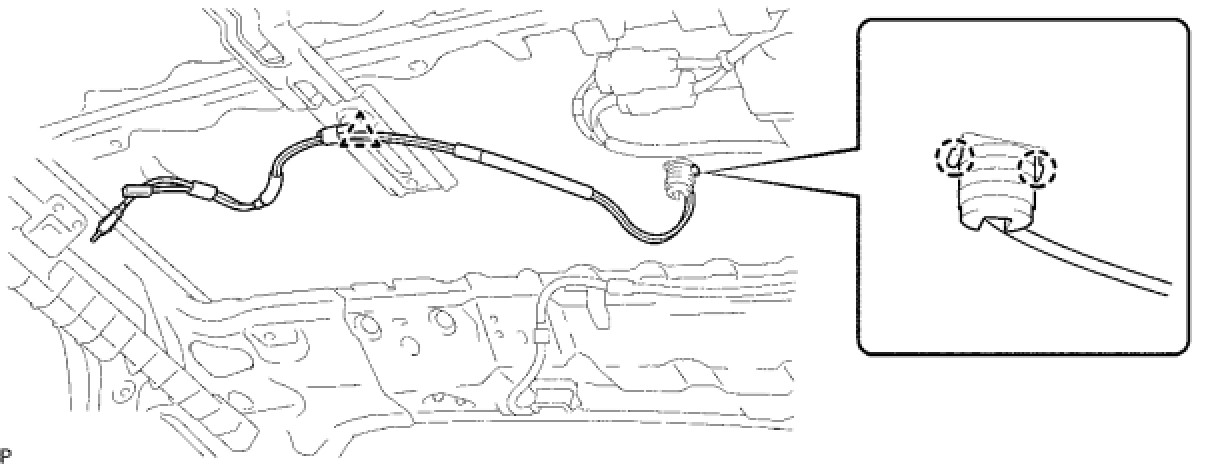

(c) Remove the clamp and detach the 2 claws to remove the antenna holder.
