ENGINE IMMOBILISER: TRANSPONDER KEY ECU (w/o Smart Key System): INSTALLATION

INSTALLATION

1. INSTALL TRANSPONDER KEY ECU

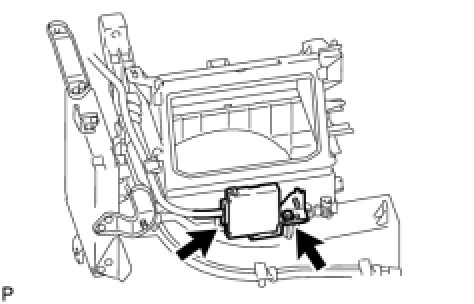

(a) Install the transponder key ECU with the screw.
(b) Connect the connector.
2. INSTALL TRANSPONDER KEY BRACKET (w/ Bracket)

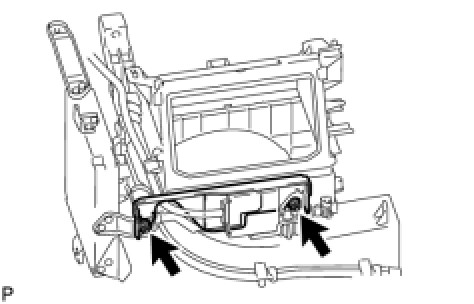

(a) Install the transponder key bracket with the 2 nuts.
3. INSTALL AIR CONDITIONER UNIT ASSEMBLY
HINT: Refer to the procedure for Install Air Conditioner Unit Assembly Installation.

4. INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY
HINT: Refer to the procedure for Install Lower Instrument Panel Sub-assembly Installation.

5. REGISTER ECU COMMUNICATION ID
NOTE: When replacing the transponder key ECU, perform initialization Engine Immobiliser System (W/O Smart Key System).

6. REGISTER KEY
NOTE: When replacing the transponder key ECU, perform initialization Engine Immobiliser System (W/O Smart Key System).
