Installation

DOOR LOCK: TRANSMITTER BATTERY: INSTALLATION

INSTALLATION

1. INSTALL TRANSMITTER BATTERY
NOTE: Take care when handing these precision electronic components.

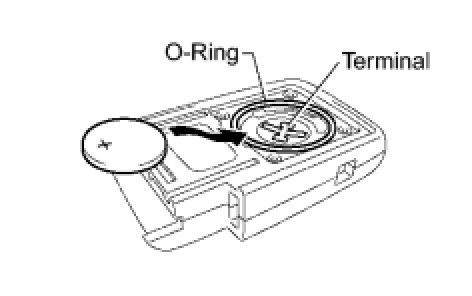

(a) Install a new battery (lithium battery: CR1632) with the positive (+) side up, as shown in the illustration.
NOTICE:
- Be sure that the positive (+) side and the negative (-) side of the transmitter battery are matched up correctly.
- Be careful not to bend the transmitter battery electrode during insertion.
- Keep the transmitter case interior free of dust and oil.

(b) Check that the O-ring is not distorted or slipped off, and install the cover.
(c) Install the 4 screws.
NOTE: Incomplete installation of the cover will cause defective contact between the battery and terminal.

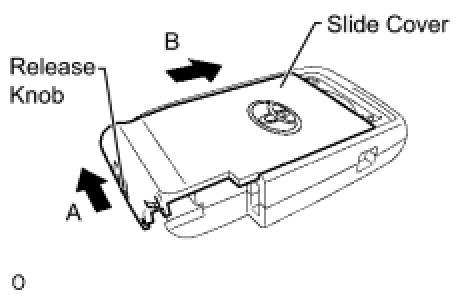

(d) Push and hold the release knob in the direction indicated by the arrow labeled A. Push in the slide cover in the direction indicated by the arrow labeled B and install the slide cover.

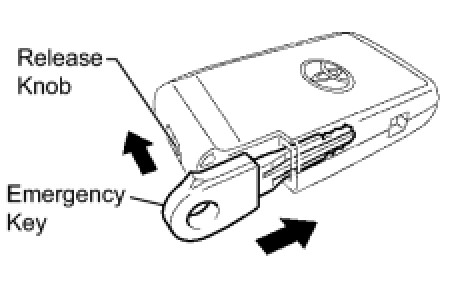

(e) Push and hold the release knob in the direction indicated by the arrow. Insert the emergency key into the case.
HINT: After installation, press any of the transmitter's switches. Check that the LED illuminates.
