How To Proceed With Troubleshooting

DOOR LOCK: WIRELESS DOOR LOCK CONTROL SYSTEM (w/ Smart Key System): HOW TO PROCEED WITH TROUBLESHOOTING

HOW TO PROCEED WITH TROUBLESHOOTING
HINT:
- Use these procedures to troubleshoot the wireless door lock control system.
- *: Use the Techstream.

1. VEHICLE BROUGHT TO WORKSHOP
NEXT -- Continue to next step.

2. INSPECT BATTERY VOLTAGE
Standard voltage:
11 to 14 V
If the voltage is below 11 V, recharge or replace the battery before proceeding
NEXT -- Continue to next step.

3. INSPECT COMMUNICATION FUNCTION OF LARGE-SCALE MULTIPLEX COMMUNICATION SYSTEM (BEAN)*
(a) Using the Techstream, check if the Multiplex Communication System (MPX) is functioning normally Multiplex Communication System.

Result:





B -- Go to MULTIPLEX COMMUNICATION SYSTEM
A -- Continue to next step.

4. CHECK FOR DTC*
(a) Check for DTCs Wireless Door Lock Control System (w/ Smart Key System) and note any codes that are output.
(b) Delete the DTC.
(c) Recheck for DTCs. Try to prompt the DTC by simulating the original activity that the DTC suggests.

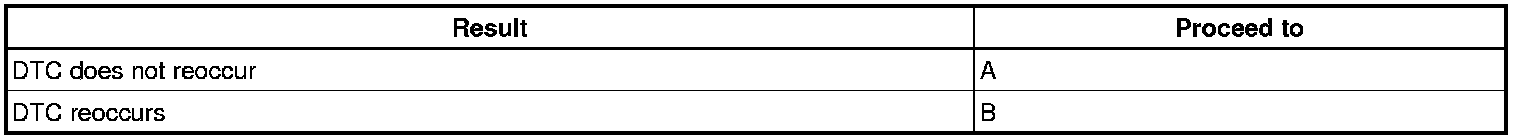

Result:





B -- Go to step 7
A -- Continue to next step.

5. PROBLEM SYMPTOMS TABLE

Result:





B -- Go to step 7
A -- Continue to next step.

6. OVERALL ANALYSIS AND TROUBLESHOOTING*
(a) Operation check Operation Check
(b) DATA LIST / ACTIVE TEST Wireless Door Lock Control System (w/ Smart Key System)
(c) Terminals of ECU Wireless Door Lock Control System (w/ Smart Key System)
(d) Inspection Testing and Inspection
NEXT -- Continue to next step.

7. ADJUST, REPAIR OR REPLACE
NEXT -- Continue to next step.

8. CONFIRMATION TEST
NEXT -- END
