Operation Check








THEFT DETERRENT: THEFT DETERRENT SYSTEM: OPERATION CHECK

OPERATION CHECK

1. OUTLINE OF THEFT DETERRENT SYSTEM
(a) When the theft deterrent system detects that the vehicle is being tampered with, the vehicle horns and security horn will sound and hazard warning lights will flash continuously.
(b) The system has 2 modes: active arming mode (refer to "ACTIVE ARMING MODE") and passive arming mode (refer to "PASSIVE ARMING MODE"). Passive arming mode can be turned on and off.
(c) Each mode has 4 states: disarmed state, arming preparation state, armed state and alarm sounding state.
(1) Disarmed state:

- The alarm function is not operating.
- The theft deterrent system is not operating.
(2) Arming preparation state:
- The theft deterrent system is not operating.
(3) Armed state:
- The theft deterrent system is operating.
(4) Alarm sounding state:
- The theft deterrent system is operating (60 +-5 seconds).

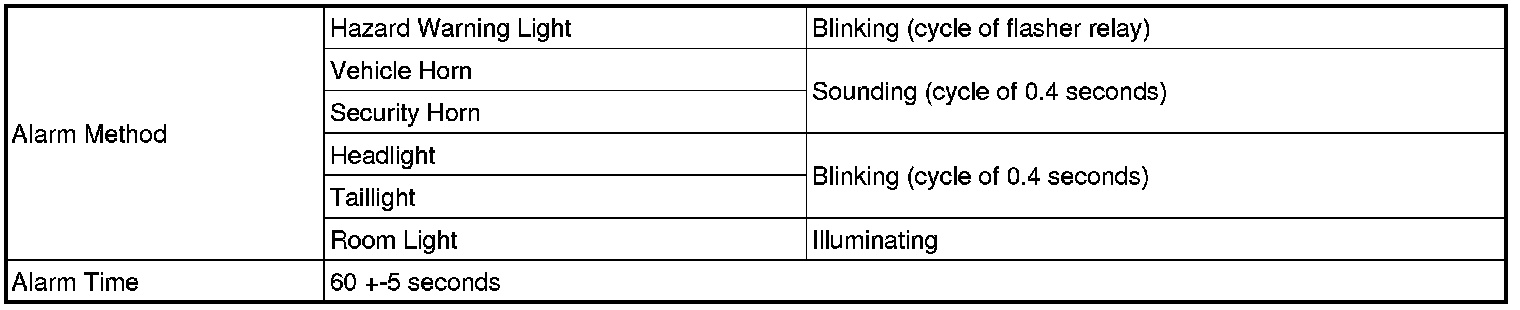

Refer to table below for alarm method and time:





HINT: If, during the alarm sounding state, one of the doors is unlocked and no key is in the key slot, a forced door lock signal will be output (refer to "FORCED DOOR LOCK CONTROL").

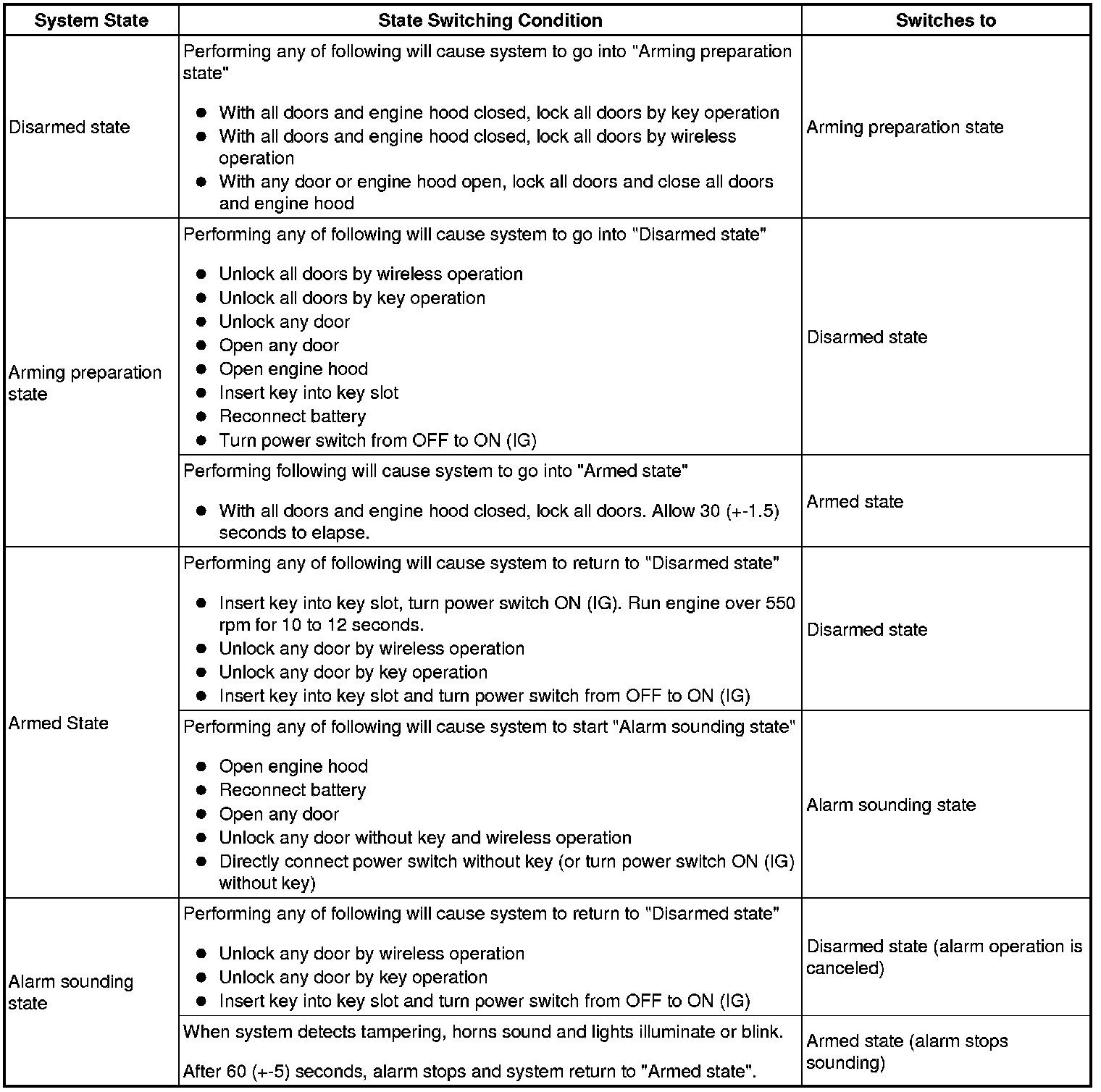

2. ACTIVE ARMING MODE
HINT: Active arming mode starts the alarm control immediately after the doors are locked.





3. PASSIVE ARMING MODE
HINT:
- Passive arming mode can be turned on and off (refer to "METHOD FOR CHANGING OF PASSIVE MODE (ON OR OFF)).
- The vehicle's initial alarm setting is active arming mode.
- During passive arming mode, the theft deterrent system enters the armed state even if the doors are not locked.
- Passive arming mode starts the alarm control after the doors are closed.
- Detecting that the doors are unlocked does not set off the alarm during passive arming mode.
- A forced door lock signal is not output during passive arming mode (refer to "FORCED DOOR LOCK CONTROL").
- When the theft deterrent system detects that the doors are opened during passive arming mode, the alarm is not set off immediately depending on the entry delay time setting.
- If one of the following conditions is fulfilled during passive arming mode, the theft deterrent system will be changed to active arming mode.

- With all doors and engine hood closed, lock all doors by wireless operation.
- With all doors and engine hood closed, lock all doors by key operation.
- With any doors or engine hood open, lock all doors and close all doors and engine hood.

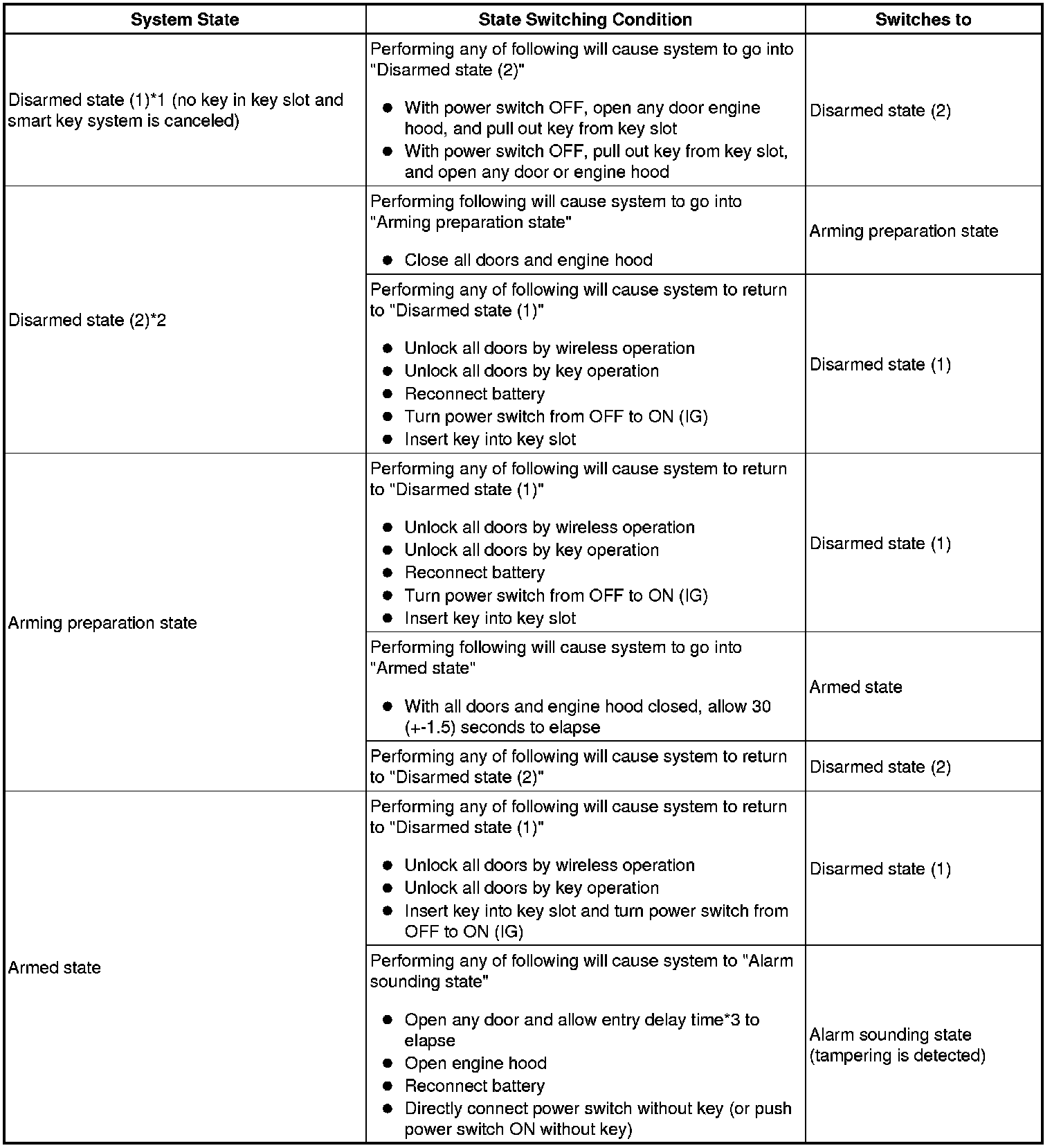

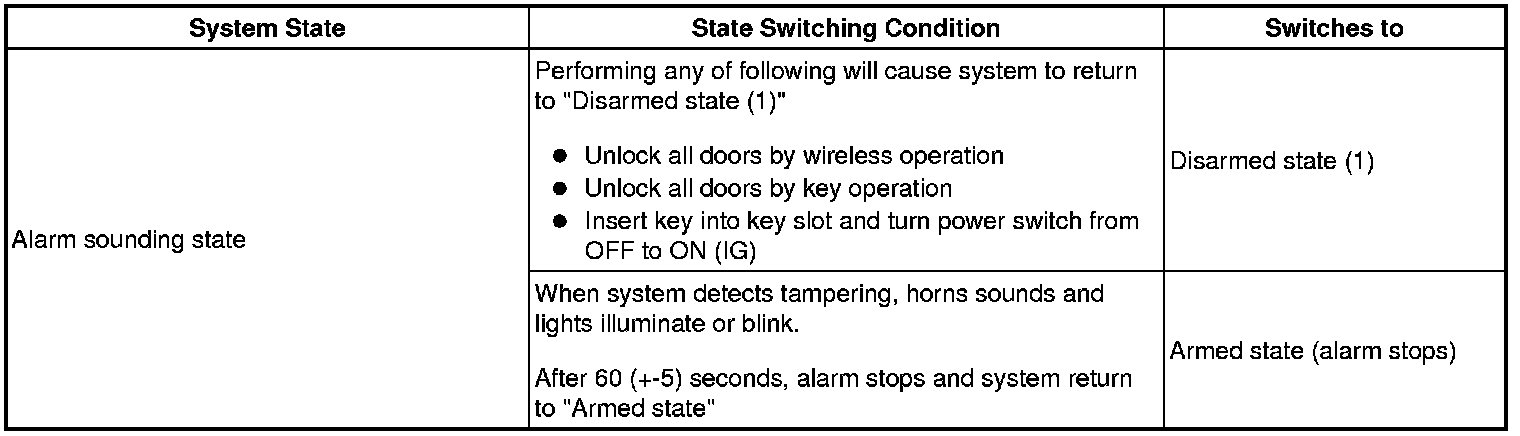

HINT: *1: "Disarmed state (1)" is the normal disarmed state.
*2: "Disarmed state (2)" is set from either the "Disarmed state (1)" or the "Arming preparation state".
*3: When a door is opened while all doors are closed during passive arming mode, the entry delay time starts. If the state switching condition [from armed state to disarmed state (1)] is fulfilled during the entry delay time, the theft deterrent system will return to disarmed state (1). However, if the state switching condition is not fulfilled, the theft deterrent system will assume that a break-in or theft is occurring and sound the alarm.
The entry delay time can be selected among the following: 0, 14 or 30 seconds.

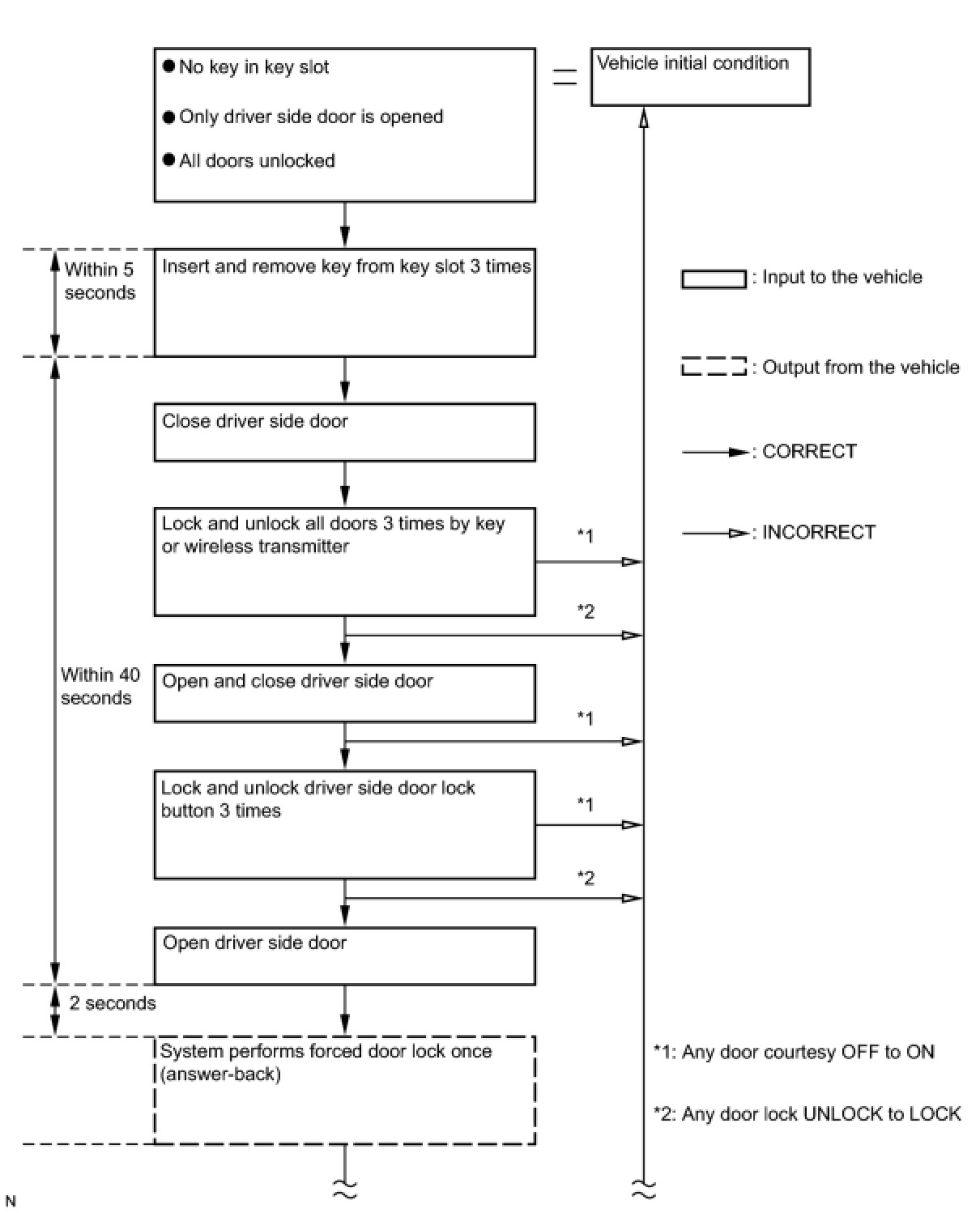

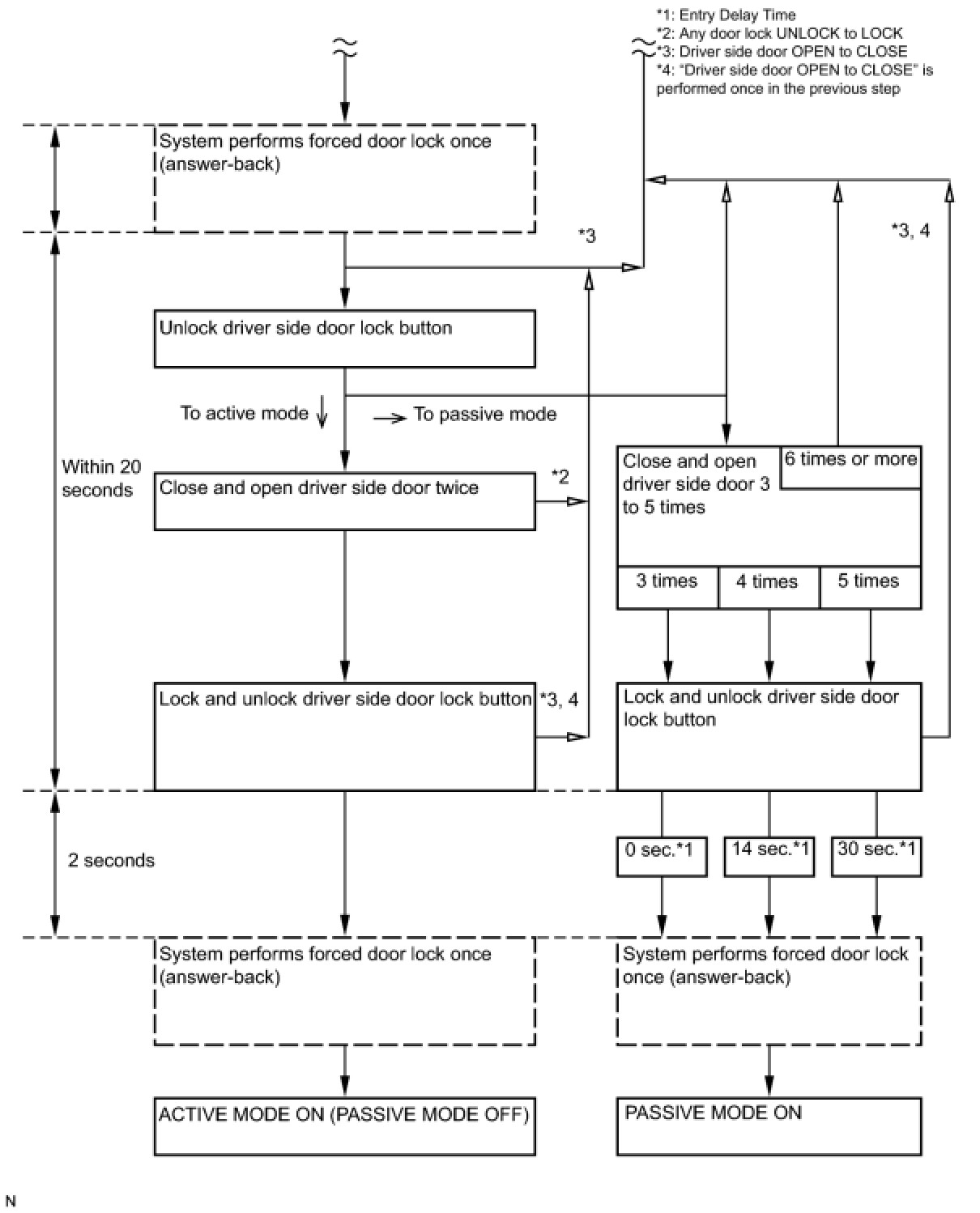

4. METHOD FOR CHANGING OF PASSIVE MODE (ON OR OFF)









5. FORCED DOOR LOCK CONTROL
(a) The forced door lock control also helps to prevent the vehicle from being tampered with. When a door is unlocked and the alarm starts, the door is forced to lock by a forced door lock signal.
(1) Conditions that force the doors to lock:

- No key is in the key slot.
- 0.4 seconds have elapsed after the previous output of a forced door lock signal.
- The theft deterrent system is in the alarm sounding state of active arming mode.
- Any door is unlocked.

6. ALARM MEMORY FUNCTION
(a) If the alarm is set off (tampering is detected) while the theft deterrent system is in the armed state, the alarm memory function will record it. Whenever the theft deterrent system is canceled, the alarm memory function causes the taillights to illuminate for 2 seconds in order to inform you that the alarm has been set off.
(1) Conditions of the alarm memory function that cause the taillights to illuminate:
When the theft deterrent system has entered into the alarm sounding state (tampering has been detected) even once, the taillights will illuminate for 2 seconds if any of the following conditions is fulfilled:

- Switched to the disarmed state from the armed state during active arming mode.
- Switched to the disarmed state (1) from the armed state during passive arming mode.
HINT: For mode information about the active arming mode, refer to "ACTIVE ARMING MODE". For more information about the passive arming mode, refer to "PASSIVE ARMING MODE".

7. PANIC ALARM CONTROL
(a) The panic alarm control activates the panic alarm when the wireless transmitter PANIC switch is pressed. The panic alarm control operates independently from the theft deterrent system's alarm control's change from the armed state to the alarm sounding state.
(1) Conditions that cause the panic alarm control to set off the panic alarm:
The panic alarm control sets off the panic alarm when the PANIC switch on the wireless transmitter is pressed for over 2.4 seconds under the following conditions.

- The power switch is OFF or ON (ACC).
- The theft deterrent system is not in the alarm sounding state (same for active arming mode and passive arming mode).
- The panic alarm control is not operating (the alarm is not set OFF).
(2) Conditions that cause the panic alarm control to shut the alarm:

- Turn the power switch ON (IG).
- Any of the wireless transmitter switches are pressed.
- 60 +- 5 seconds have pressed and the panic alarm has ended.
- The theft deterrent system switches to the alarm sounding state (same for active arming mode and passive arming mode). However, the alarm is still sounding, because the theft deterrent system has switched to the alarm sounding state. Conditions for canceling the panic alarm are the same as for the alarm control.
HINT: For mode information about the active arming mode, refer to "ACTIVE ARMING MODE". For more information about the passive arming mode, refer to "PASSIVE ARMING MODE".

8. SECURITY INDICATOR LIGHT OUTPUT
(a) The security indicator light turns on and off based on output signals from the main body ECU. However, in some cases the actual status of the security indicator light is different from the output signals of the main body ECU.

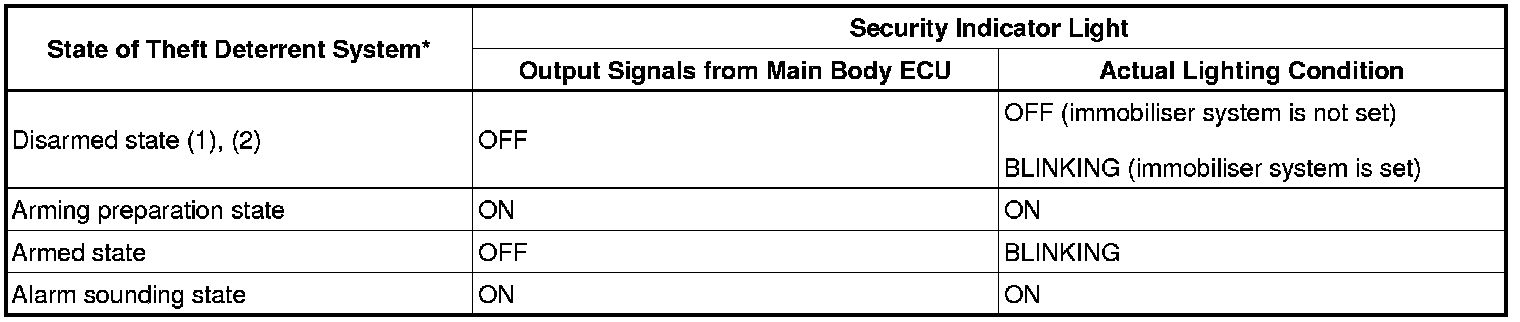

Output:

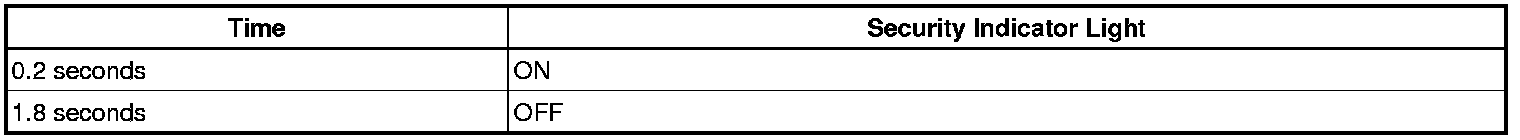

Flashing cycle:





HINT:
- *: Same for active arming mode and passive arming mode.
- When the immobiliser system is set, the security indicator blinks during the disarmed state and the armed state due to the output signals from the immobiliser system.
