AUDIO / VISUAL: MICROPHONE AMPLIFIER: INSTALLATION

INSTALLATION

1. INSTALL MICROPHONE AMPLIFIER ASSEMBLY
(a) Install the microphone amplifier.





(b) Connect the connector.





(c) Attach the 4 claws to install the amplifier cover.

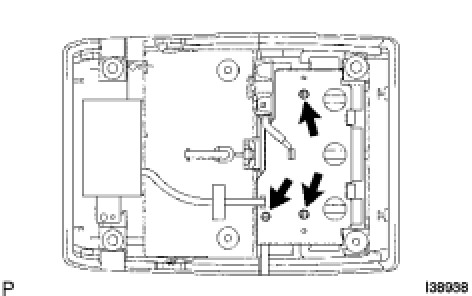

(d) Install the print board with the 3 screws.
2. INSTALL MAP LIGHT ASSEMBLY Installation
3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
4. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
