Removal

AUDIO / VISUAL: MICROPHONE AMPLIFIER: REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE MAP LIGHT ASSEMBLY Removal
3. REMOVE MICROPHONE AMPLIFIER ASSEMBLY

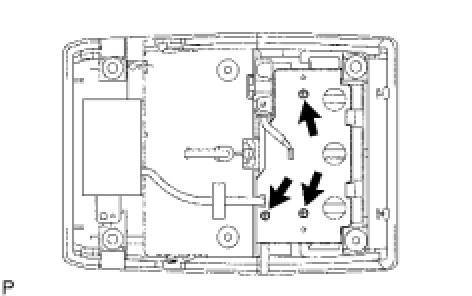

(a) Remove the 3 screws and print board.

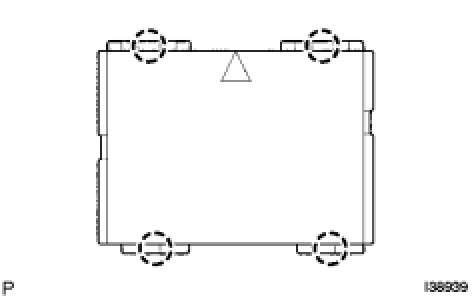

(b) Detach the 4 claws and remove the amplifier cover.

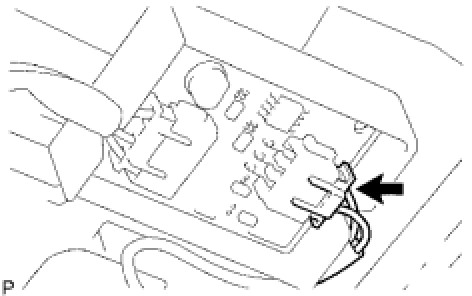

(c) Disconnect the connector.





(d) Remove the microphone amplifier.
