NAVIGATION:
NAVIGATION SYSTEM
: PROBLEM SYMPTOMS TABLE

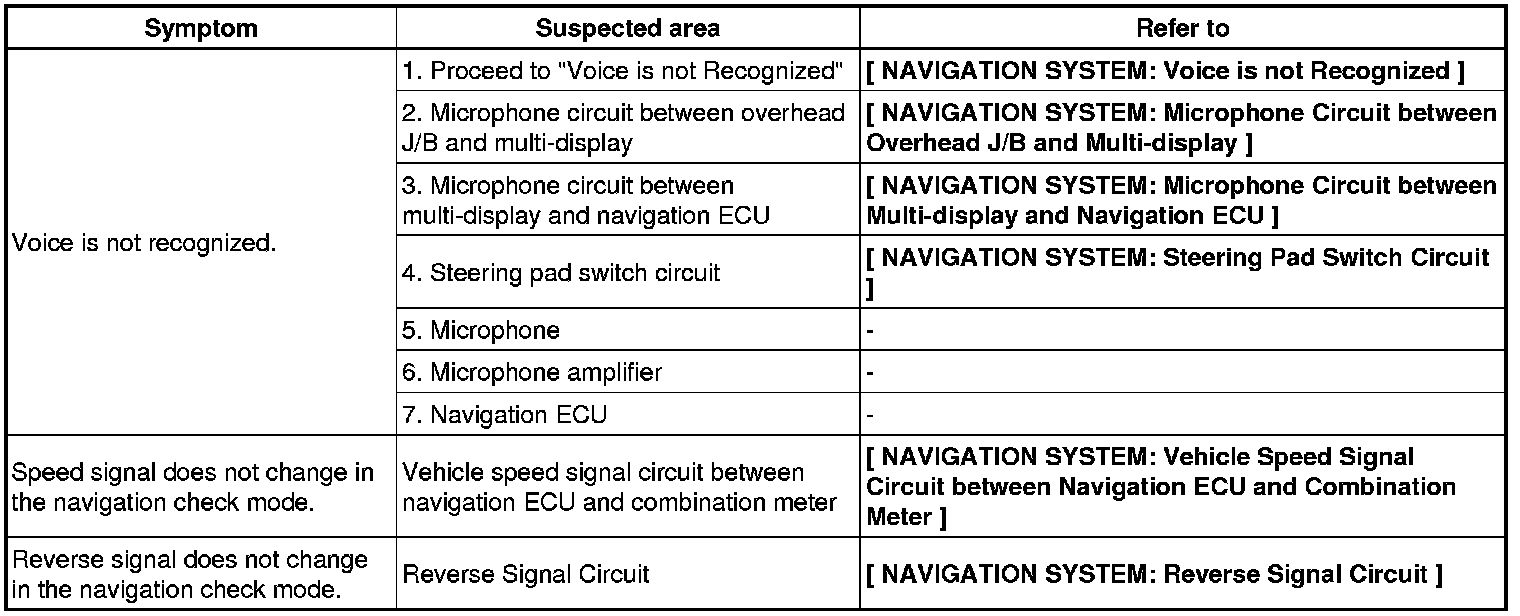

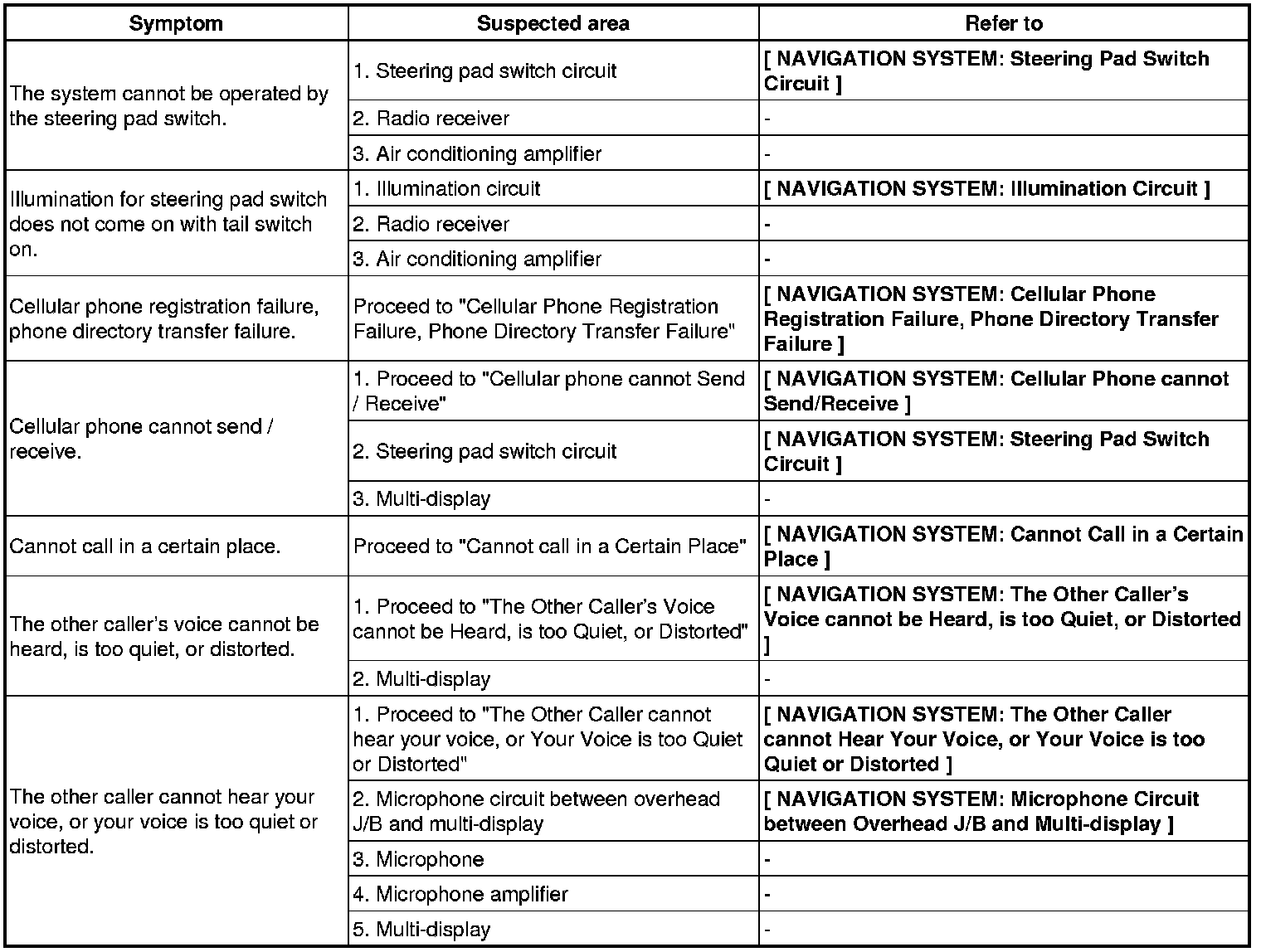

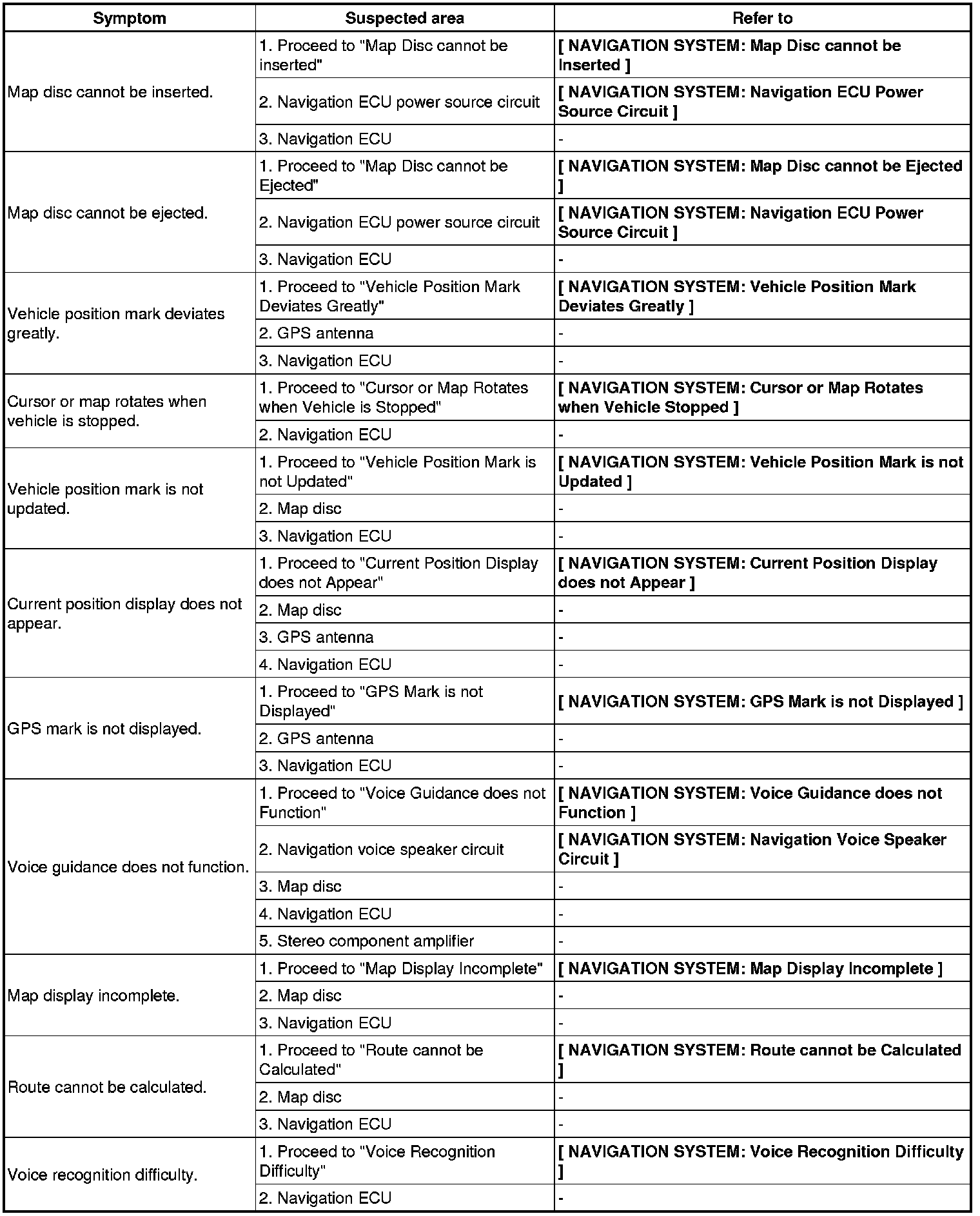

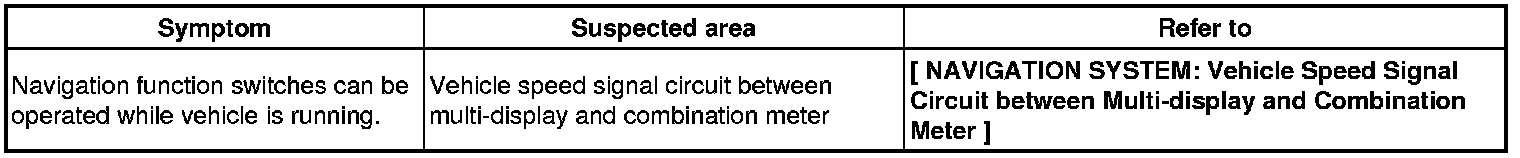

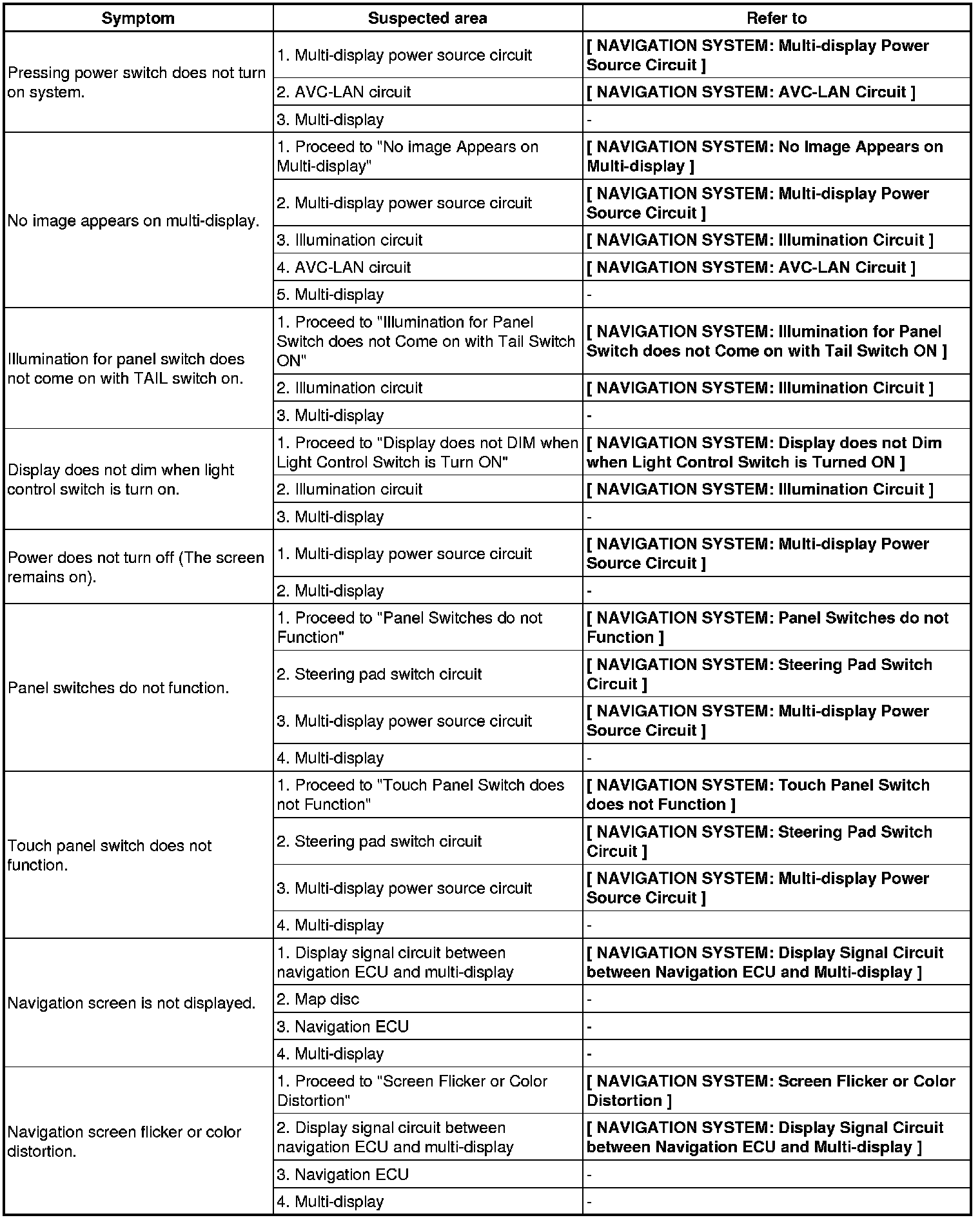

PROBLEM SYMPTOMS TABLE
Display function
Navigation function
Steering pad switch function
