Removal

AUDIO / VISUAL: STEREO COMPONENT AMPLIFIER: REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE FRONT SEAT ASSEMBLY RH Removal

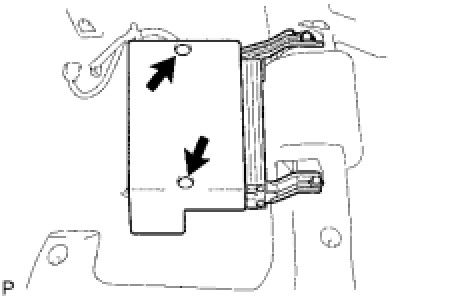

3. REMOVE AUDIO AMPLIFIER COVER





(a) Detach the 2 clips and amplifier cover.

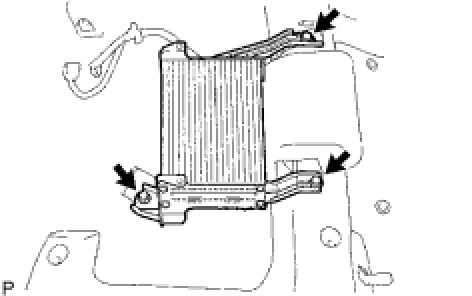

4. REMOVE STEREO COMPONENT AMPLIFIER ASSEMBLY





(a) Disconnect the connector.
(b) Remove the 3 bolts and stereo component amplifier.
