Home >> Toyota >> 2009 >> Prius L4-1.5L (1NZ-FXE) Hybrid >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Locations

Radio, Stereo, and Compact Disc: Locations

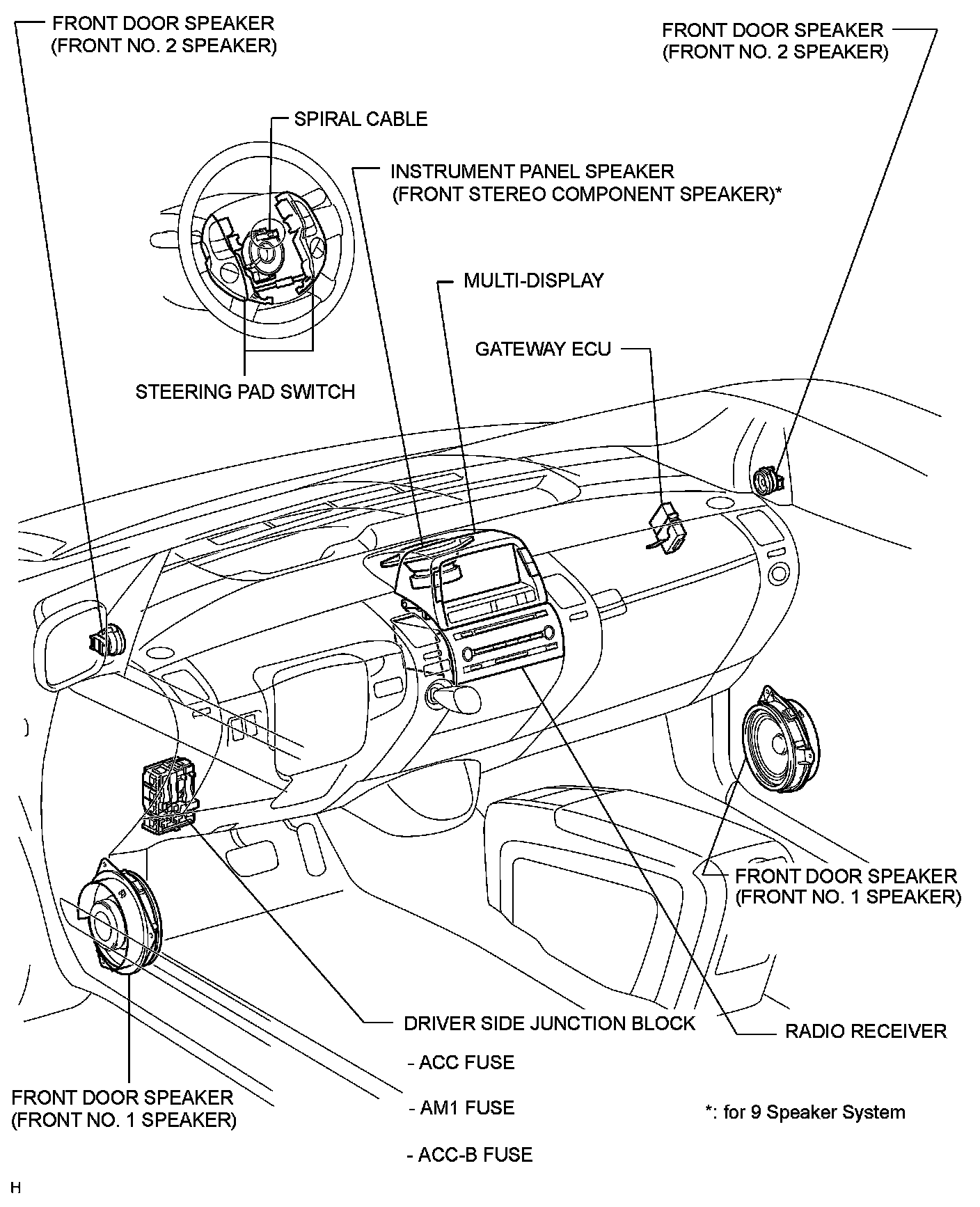

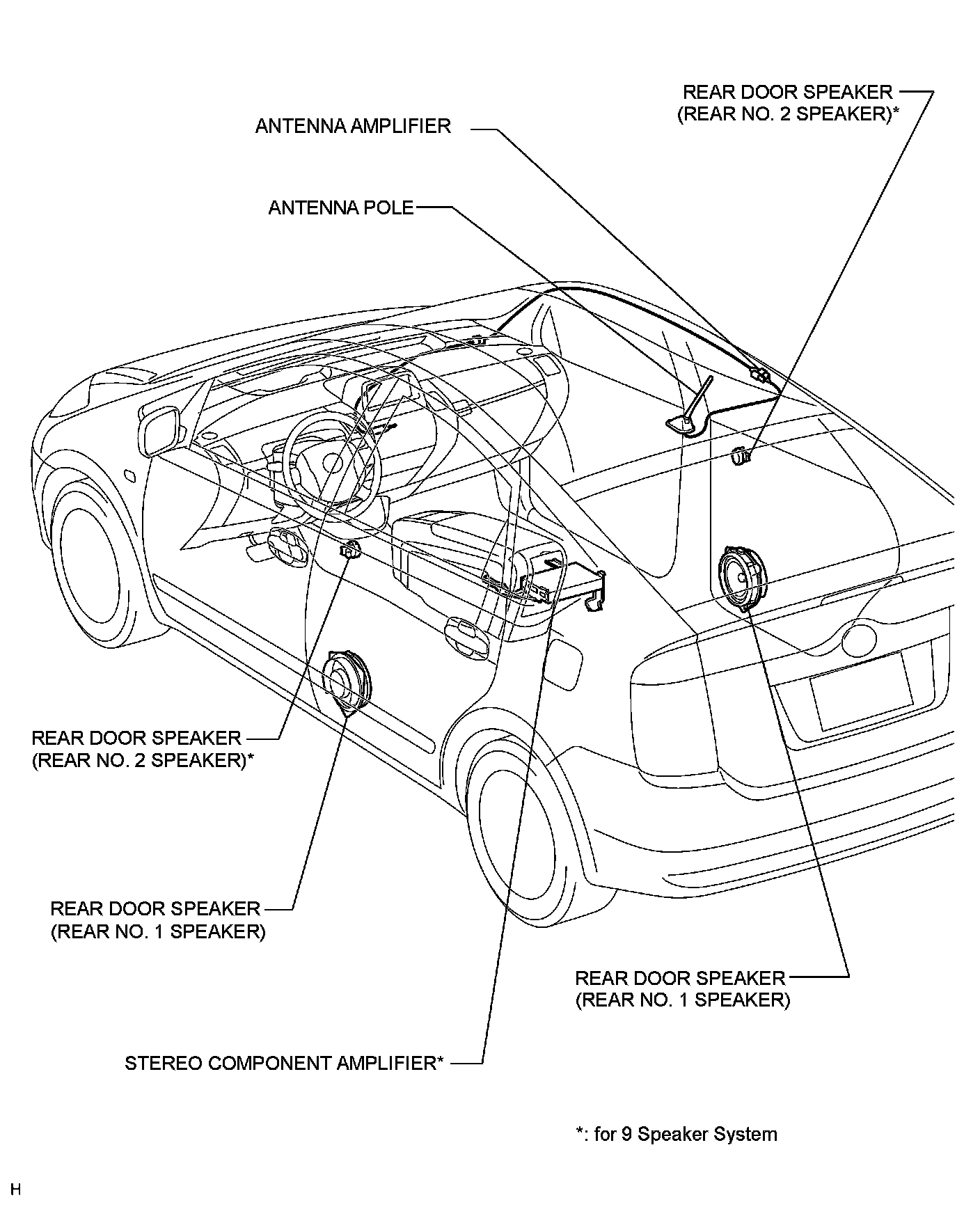

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM: PARTS LOCATION

PARTS LOCATION

ILLUSTRATION
