AUDIO / VISUAL: STEERING PAD SWITCH: INSTALLATION

INSTALLATION

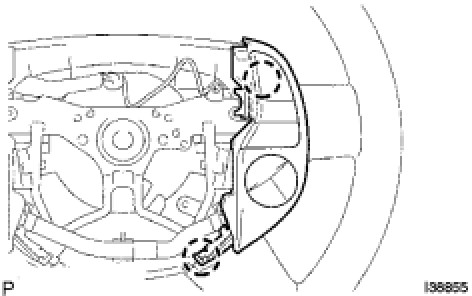

1. INSTALL STEERING PAD SWITCH LH
(a) Connect the connector.
(b) Attach the 2 claws to install the steering pad switch.

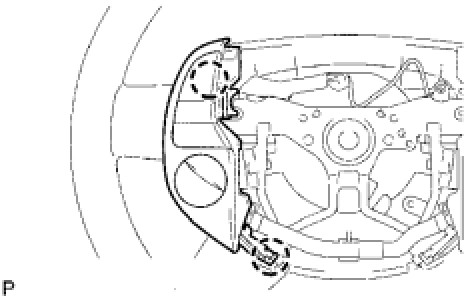

2. INSTALL STEERING PAD SWITCH RH
(a) Connect the connector.
(b) Attach the 2 claws to install the steering pad switch.
3. INSTALL STEERING PAD ASSEMBLY Installation
4. INSTALL NO. 2 STEERING WHEEL COVER LOWER
5. INSTALL NO. 3 STEERING WHEEL COVER LOWER
6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
7. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

8. INSPECT STEERING PAD ASSEMBLY Installation
9. CHECK SRS WARNING LIGHT Installation
