Installation

AUDIO / VISUAL: RADIO RECEIVER: INSTALLATION

INSTALLATION





1. INSTALL NO. 2 RADIO BRACKET

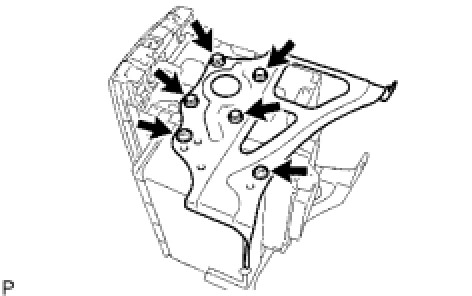

(a) Install the No. 2 radio bracket to the radio receiver with the 6 screws.





2. INSTALL NO. 1 RADIO BRACKET

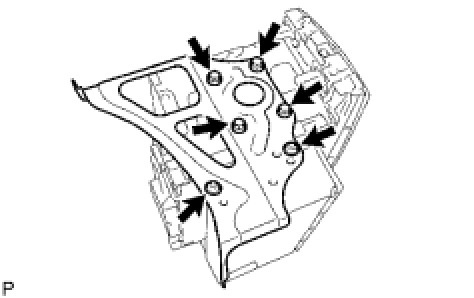

(a) Install the No. 1 radio bracket to the radio receiver with the 6 screws.





3. INSTALL RADIO RECEIVER WITH BRACKET
(a) Connect all the connectors and install the radio receiver.

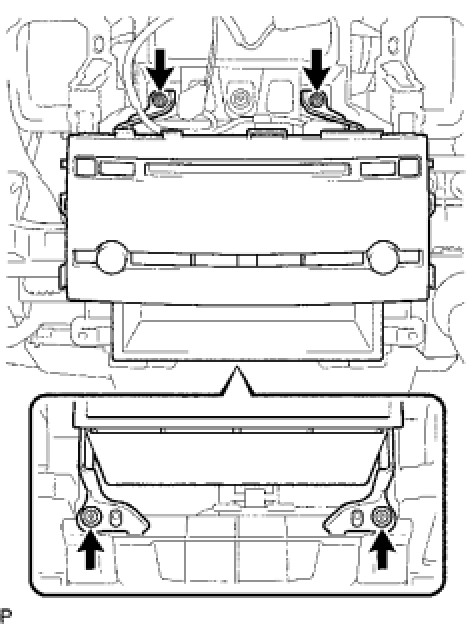

(b) Install the 4 screws.
4. INSTALL MULTI-DISPLAY ASSEMBLY Installation
5. INSTALL INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY CENTER Installation
6. INSTALL NO. 4 INSTRUMENT PANEL REGISTER ASSEMBLY Installation
7. INSTALL NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY Installation
8. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
9. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
