Installation

AUDIO / VISUAL: INSTRUMENT PANEL SPEAKER: INSTALLATION

INSTALLATION

1. INSTALL FRONT STEREO COMPONENT SPEAKER ASSEMBLY

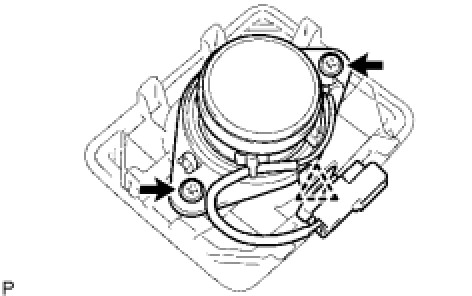

(a) Install the speaker with the 2 screws and clamp.
(b) Connect the connector.

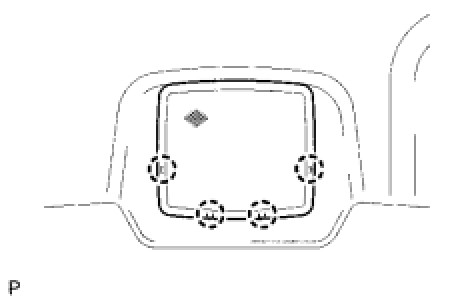

(c) Attach the 4 claws to install the speaker panel.
