Installation

AUDIO / VISUAL: REAR DOOR SPEAKER: INSTALLATION

INSTALLATION
HINT:
- Use the same procedures for the RH and LH sides.
- The procedures listed below are for the LH side.

1. INSTALL REAR SPEAKER ASSEMBLY
(a) Using an air riveter or hand riveter, install the speaker with 3 new rivets.

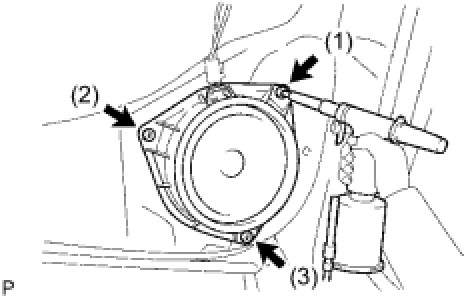

HINT: Install the new strike rivets in the order shown in the illustration.
NOTICE:

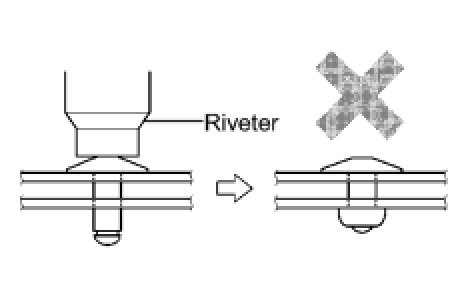

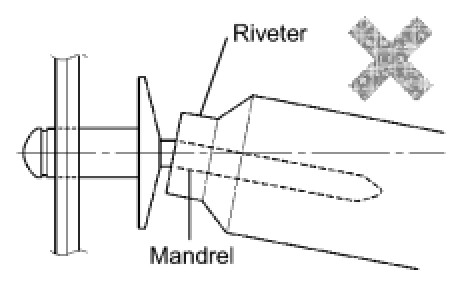

- Do not pry the rivet with the riveter, as this will cause damage to the riveter and mandrel.

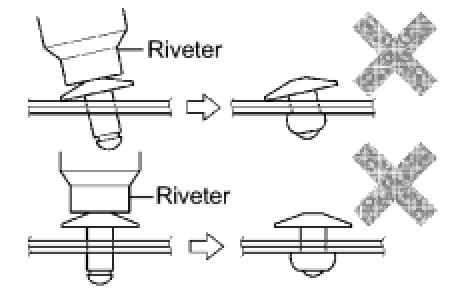

- Confirm that the rivets are seated properly against the speaker. Do not tilt the riveter when installing the rivet to the speaker. Do not leave any space between the rivet head and speaker.




- Do not leave any space between the speaker and door. Firmly hold together the 2 items while installing the rivet.





(b) Connect the connector.
2. INSTALL REAR NO. 2 SPEAKER ASSEMBLY





(a) Attach the 3 claws to install the speaker.
3. INSTALL REAR DOOR TRIM BOARD SUB-ASSEMBLY LH Reassembly
4. INSTALL REAR DOOR ARMREST BASE PANEL UPPER LH Reassembly
5. INSTALL DOOR PULL HANDLE Reassembly
6. INSTALL REAR DOOR INSIDE HANDLE BEZEL LH Reassembly
