Removal

AUDIO / VISUAL: REAR DOOR SPEAKER: REMOVAL

REMOVAL
HINT:
- Use the same procedures for the RH side and LH sides.
- The procedures listed below are for the LH side.

1. REMOVE REAR DOOR INSIDE HANDLE BEZEL LH Disassembly
2. REMOVE DOOR PULL HANDLE Disassembly
3. REMOVE REAR DOOR ARMREST BASE PANEL UPPER LH Disassembly
4. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY LH Disassembly
5. REMOVE REAR SPEAKER ASSEMBLY





(a) Disconnect the connector.

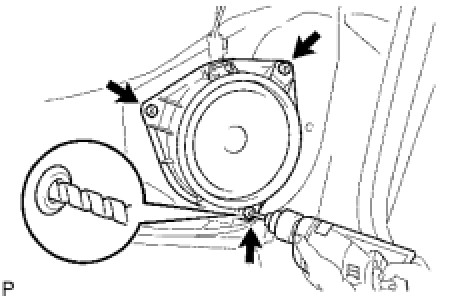

(b) Using a drill bit with a diameter of less than 4 mm (0.16 in.), drill out the 3 rivet heads and remove the speaker.
NOTICE:
- Do not drill the rivet at an angle as this will cause damage to the drill and drill hole. Line up the drill and rivet, and carefully drill out the rivet head.
- Be careful as the cut rivet will be very hot.

(c) Continue drilling and push out the remaining rivet fragments.
(d) Using a vacuum cleaner, remove the rivet fragments and shavings from the inside of the door.
6. REMOVE REAR NO. 2 SPEAKER ASSEMBLY

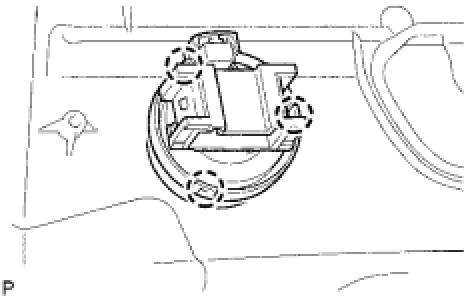

(a) Detach the 3 claws and remove the speaker.
