Stereo Component Amplifier Power Source Circuit

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM: Stereo Component Amplifier Power Source Circuit

Stereo Component Amplifier Power Source Circuit

DESCRIPTION

This circuit provides power to the stereo component amplifier.

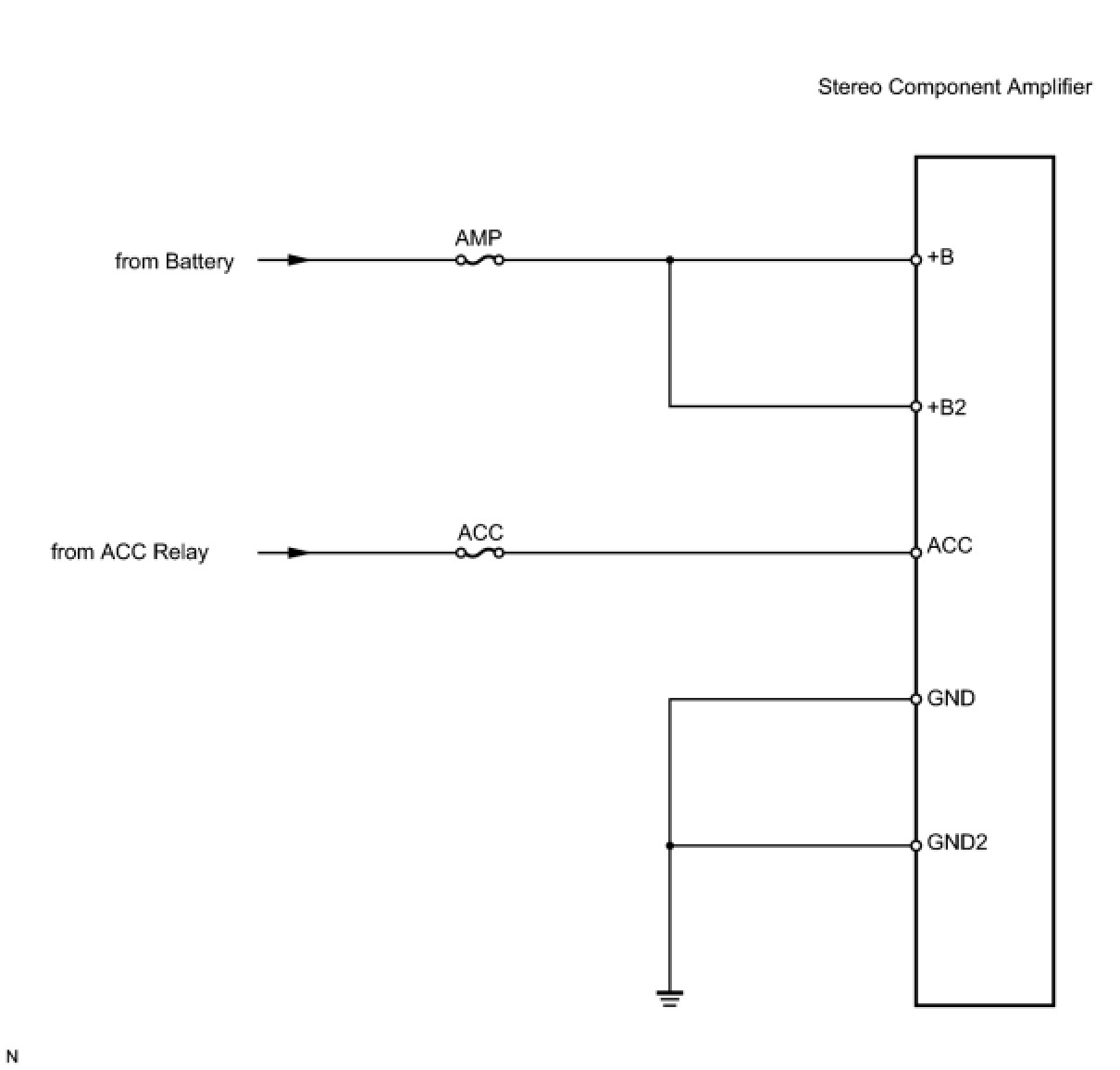

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. INSPECT FUSE (AMP, ACC)
(a) Disconnect the AMP fuse from the engine room junction block.
(b) Disconnect the ACC fuse from the driver side junction block.
(c) Measure the resistance of the fuses.
Standard resistance:
Below 1 Ohms
NG -- REPLACE FUSE
OK -- Continue to next step.

2. CHECK WIRE HARNESS (AMPLIFIER - BATTERY AND BODY GROUND)

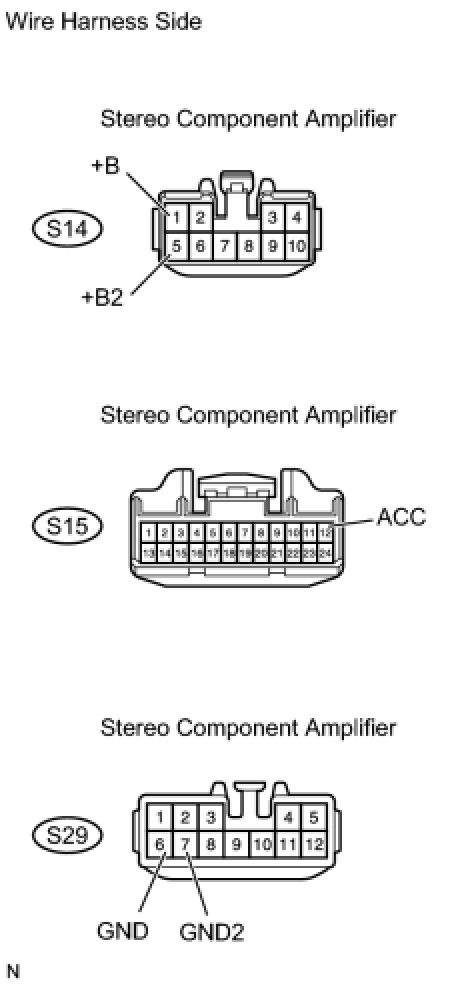

(a) Disconnect the S14, S15 and S29 amplifier connectors.

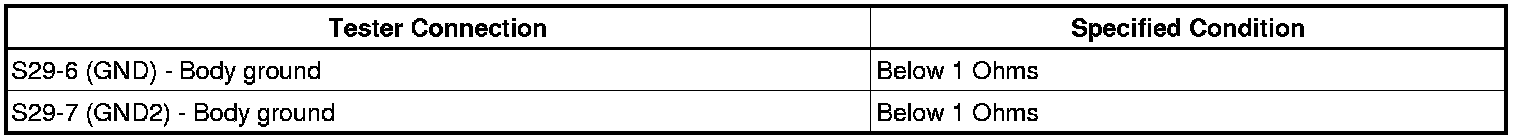

(b) Measure the resistance of the wire harness side connector.
Standard resistance:

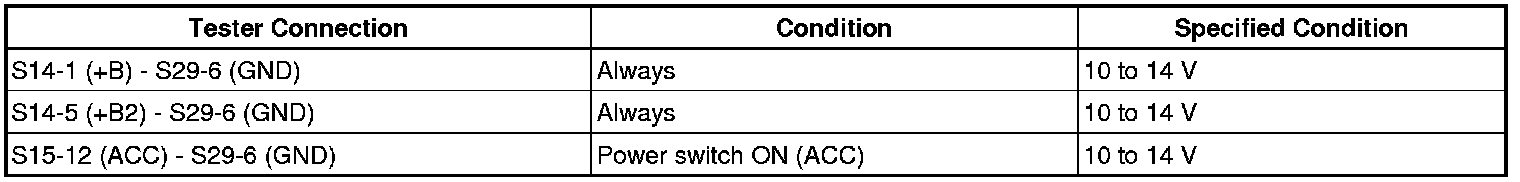

(c) Measure the voltage of the wire harness side connectors.
Standard voltage:






NG -- REPAIR OR REPLACE HARNESS AND CONNECTOR
OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
