ENGINE IMMOBILISER: CERTIFICATION ECU (w/ Smart Key System): REMOVAL

REMOVAL

1. REMOVE INSTRUMENT PANEL SAFETY PAD
Removal

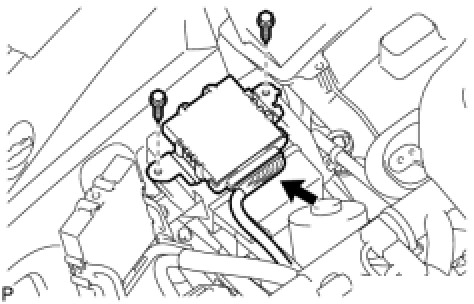

2. REMOVE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)





(a) Disconnect the connector.
(b) Remove the 2 screws and the certification ECU (smart key ECU assembly).
