Installation

EXTERIOR: FRONT BUMPER: INSTALLATION

INSTALLATION
HINT: A bolt without a torque specification is shown in the standard bolt chart Standard Bolt - Specified Torque For Standard Bolts.

1. INSTALL FRONT BUMPER SIDE SUPPORT LH
(a) Install the side support with 2 screws.
2. INSTALL FRONT BUMPER SIDE SUPPORT RH
(a) Install the side support with 2 screws.
3. INSTALL FRONT BUMPER REINFORCEMENT
(a) Install the reinforcement with the 4 nuts.
Torque: 67 Nm (683 kgf-cm, 49 ft-lbf)
(b) Install the 4 wire harness clamps.
4. INSTALL FRONT BUMPER ENERGY ABSORBER

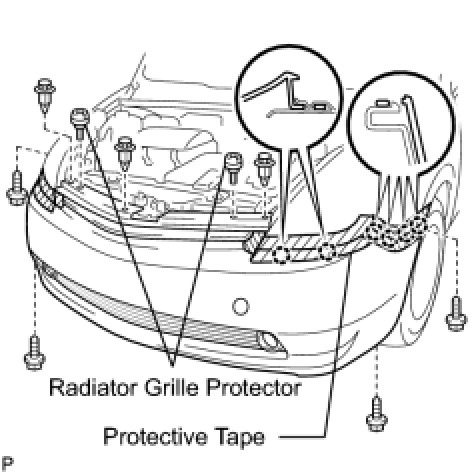

5. INSTALL FRONT BUMPER COVER





(a) Put protective tape under the front fender.
(b) w/ Fog light:
Connect the 2 fog light connectors.
(c) Attach the 12 claws to install the bumper cover.
(d) Install the 4 screws and 3 clips.
(e) Install the 2 radiator grille protectors.
Torque: 5.0 Nm (51 kgf-cm, 44 in-lbf)

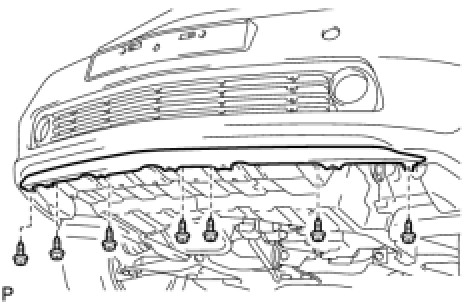

6. INSTALL FRONT SPOILER COVER





(a) Install the spoiler cover with the 7 screws.

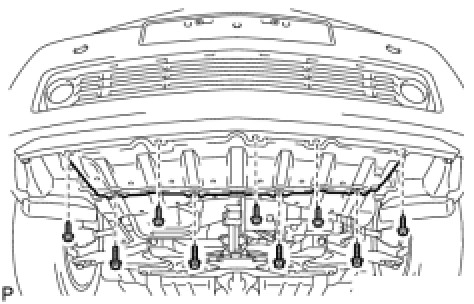

7. INSTALL CENTER NO. 4 ENGINE UNDER COVER





(a) Install the under cover with the 5 screws and 4 bolts.

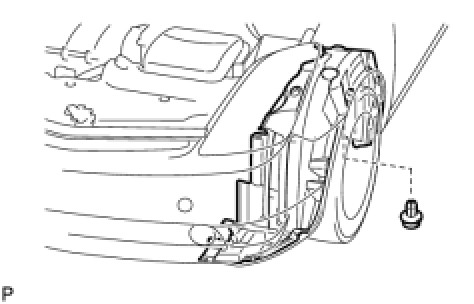

8. INSTALL FRONT FENDER LINER LH





(a) Install the fender liner with the clip.
9. INSTALL FRONT FENDER LINER RH
HINT: Use the same procedure described for the LH side.

10. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
11. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
