AERODYNAMICS

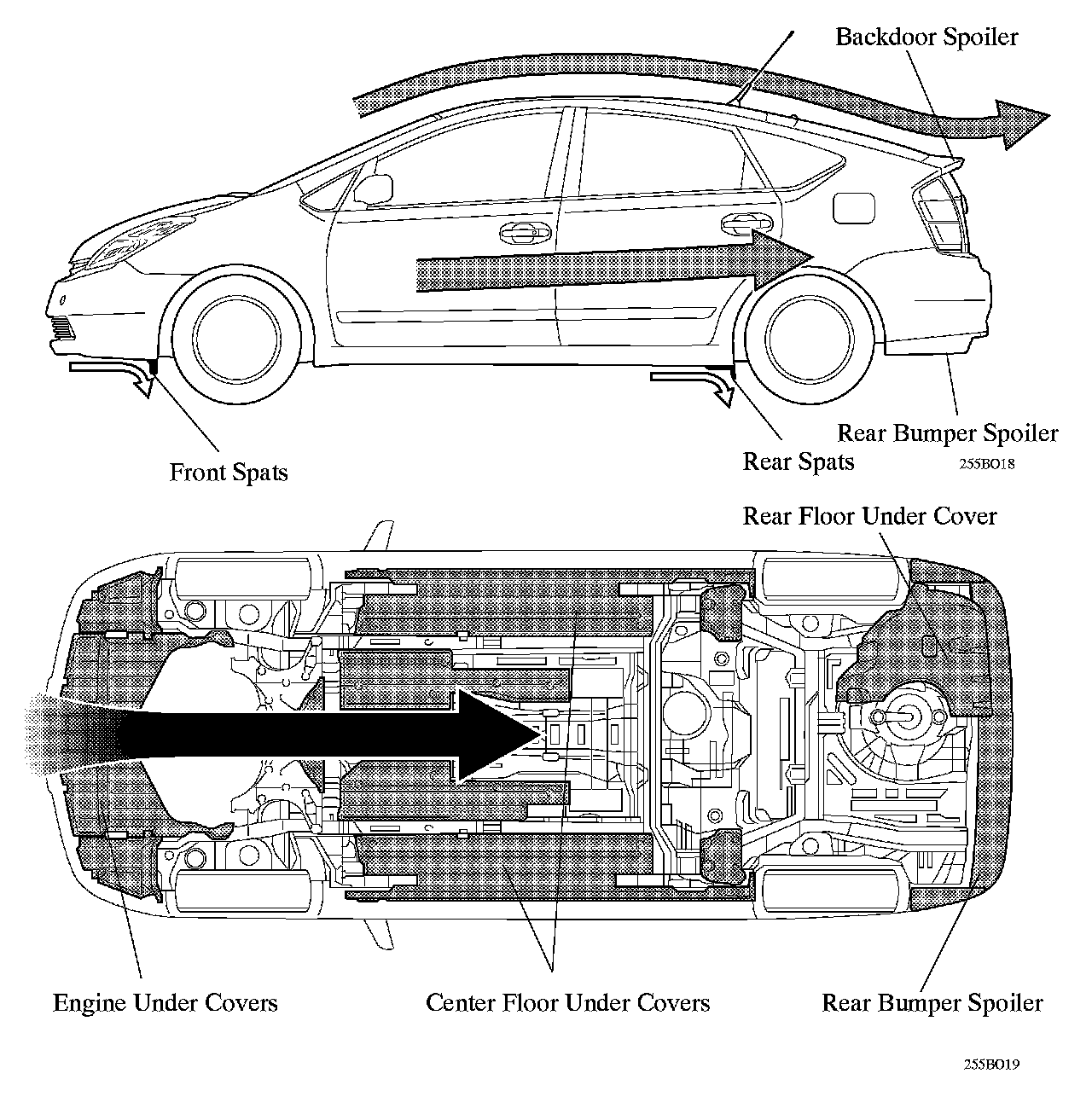

To improve aerodynamic performance, the following features have been taken. As a result, an aerodynamic resistance coefficient with a Cd value of O.26 has been achieved.

^ A rear spoiler that is integrated with the back door has been adopted.

^ To aerodynamically regulate air after the rear tire, the bumper spoiler has been provided under the rear bumper.

^ The engine under cover and front fender liner has been redesigned to the aerodynamically optimum shape.

^ The spats and front spoiler are provided to smooth out the airflow around the tires and reduce the air resistance while the vehicle is in motion.
