Rust Resistant

RUST-RESISTANT BODY

1. General

Rust-resistant performance is enhanced by extensive use of anti-corrosion sheet steel, as well as by an anti-corrosion treatment, which includes the application of anti-rust wax, sealer and anti-chipping paint to easily corroded parts such as the doors and rocker panels.

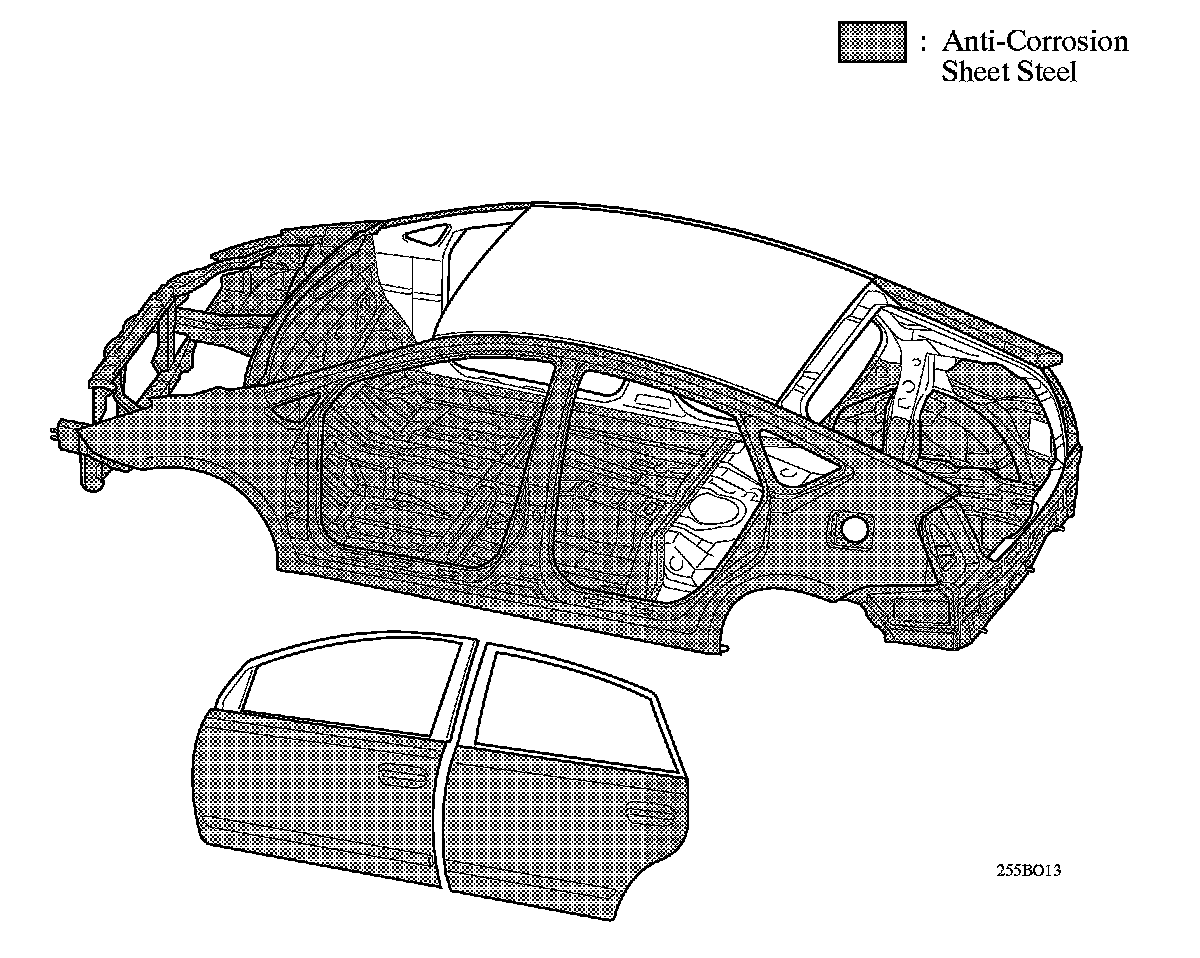

2. Anti-Corrosion Sheet Steel





Anti-corrosion sheet steel is used as the following illustration.

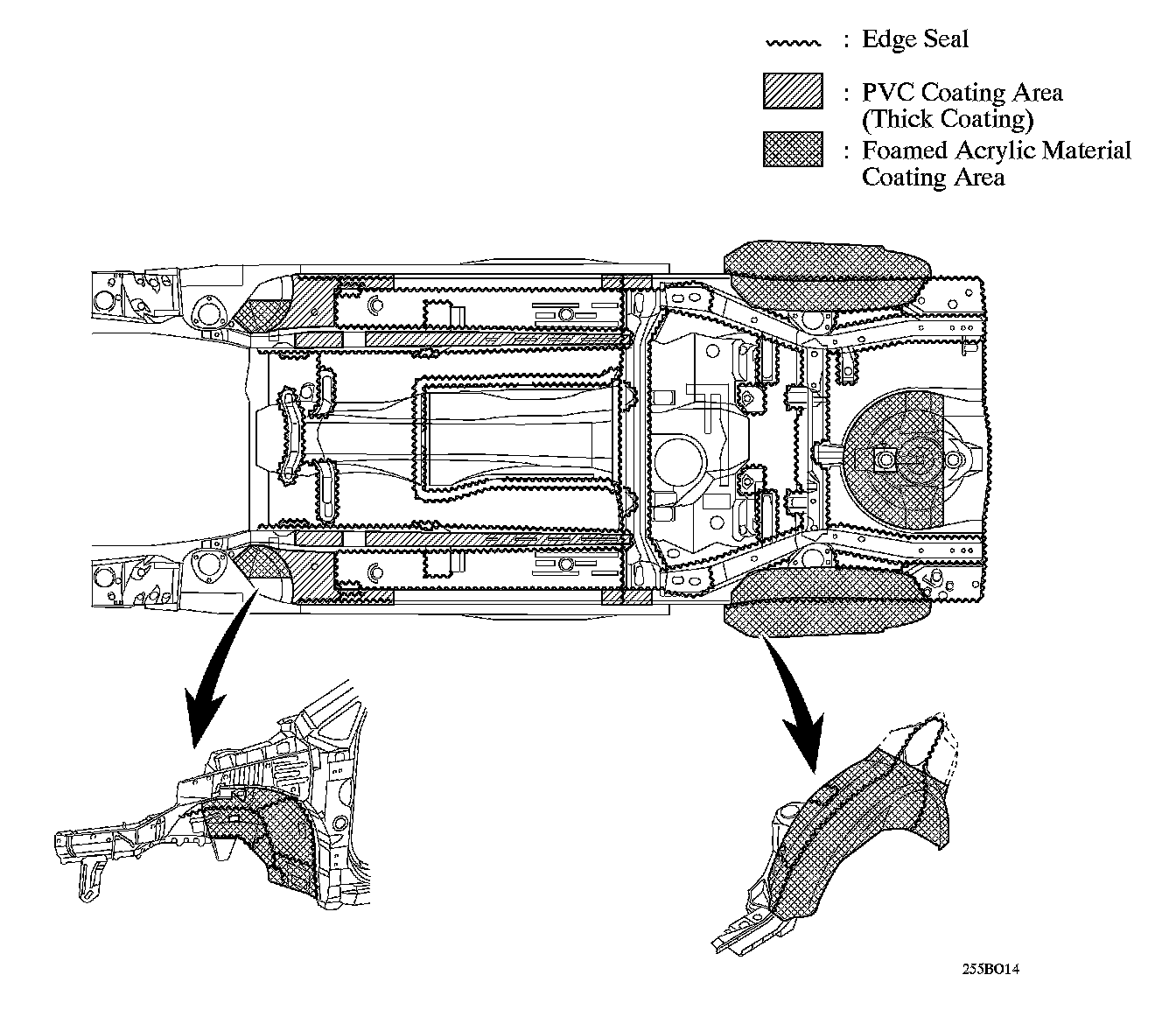

3. Under Coat





PVC (Polyvinyl Chloride) and foamed acrylic material are applied to the underside of the body and other parts that are susceptible to stone chipping damage in order to improve the rust-resistance performance of these areas.
