Front Door: Testing and Inspection

ENGINE HOOD / DOOR: FRONT DOOR: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

1. INSPECT FRONT DOOR SUB-ASSEMBLY

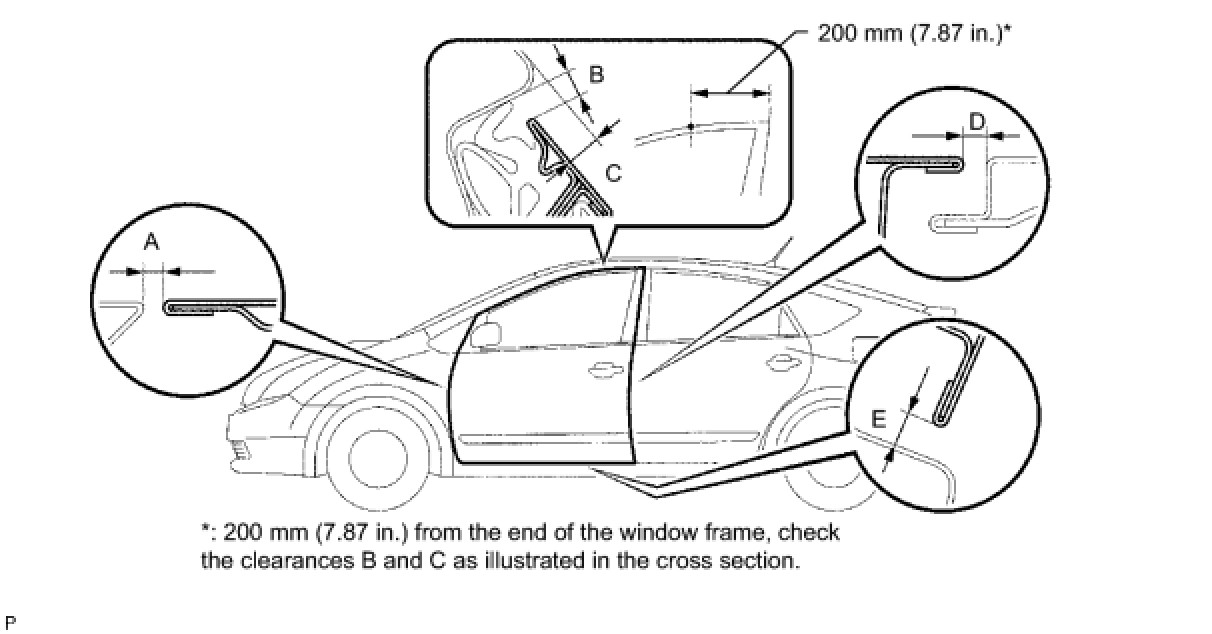

(a) Check that the clearance measurements of areas A to E are within the standard range.

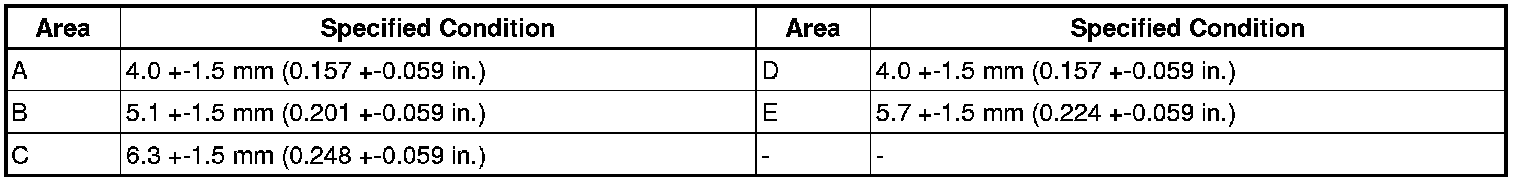

Standard measurement:
