Trunk / Liftgate: Adjustments

ENGINE HOOD / DOOR: BACK DOOR: ADJUSTMENT

ADJUSTMENT
HINT: A bolt without a torque specification is shown in the standard bolt chart Standard Bolt - Specified Torque For Standard Bolts.

1. ADJUST BACK DOOR





(a) Loosen the door side's hinge bolts and adjust the back door panel's top end.
(b) Tighten the door side's hinge bolts after the adjustment.
Torque: 15 Nm (153 kgf-cm, 11 ft-lbf)

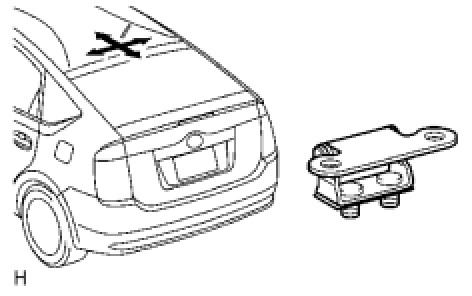

(c) Loosen the back door's lock bolts and change the position of the back door lock to adjust back door panel's end.
NOTE: Tap the base of the back door lock to change its position.

(d) Tighten the 3 back door lock bolts after the adjustment.
Torque: 7.5 Nm (76 kgf-cm, 75 in-lbf)
