Reassembly

ENGINE HOOD / DOOR: BACK DOOR: REASSEMBLY

REASSEMBLY
HINT: A bolt without a torque specification is shown in the standard bolt chart Standard Bolt - Specified Torque For Standard Bolts.

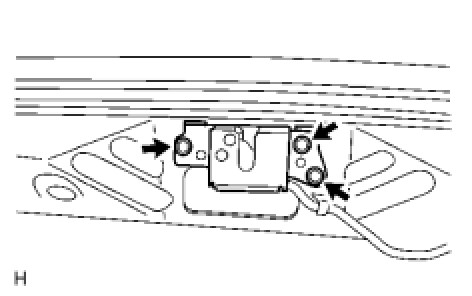

1. INSTALL BACK DOOR LOCK ASSEMBLY
(a) Install the door lock with the 3 bolts.
Torque: 7.5 Nm (76 kgf-cm, 75 in-lbf)
(b) Adjust the door lock Adjustments.

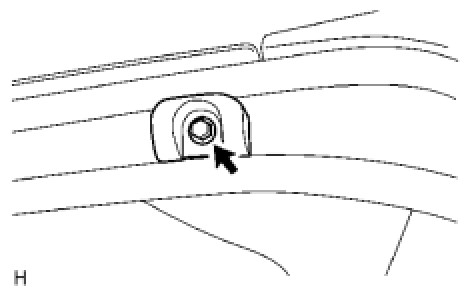

2. INSTALL BACK DOOR LOWER STOPPER
(a) Install the stopper LH and RH with the 2 bolts.
Torque: 8.0 Nm (82 kgf-cm, 71 in-lbf)
3. INSTALL REAR DECK TRIM COVER Installation
4. INSTALL BACK DOOR STAY ASSEMBLY LH Removal
5. INSTALL BACK DOOR STAY ASSEMBLY RH
HINT: Use the same procedures for the LH side.

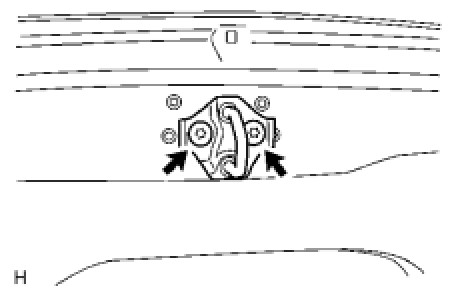

6. INSTALL BACK DOOR LOCK STRIKER ASSEMBLY





(a) Using a T40 "torx" wrench, install the striker with the 2 screws.
Torque: 23 Nm (235 kgf-cm, 16 ft-lbf)

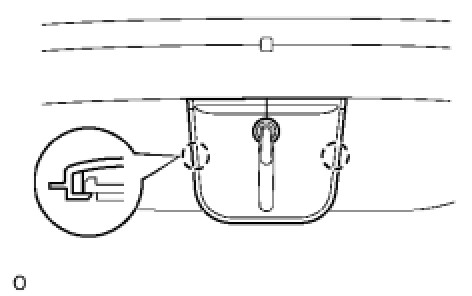

(b) Attach the 2 claws to install the cover.
7. INSTALL LICENSE PLATE LIGHT ASSEMBLY Removal

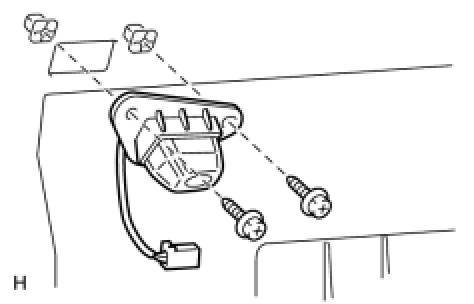

8. INSTALL TELEVISION CAMERA ASSEMBLY
(a) Connect the connector.
(b) Install the camera with the 2 screws.
9. INSTALL BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY
10. INSTALL REAR SPOILER SUB-ASSEMBLY Installation
11. INSTALL REAR WIPER MOTOR ASSEMBLY Installation
12. INSTALL BACK DOOR SIDE GARNISH RH
(a) Attach the 3 clips to install the garnish.
13. INSTALL BACK DOOR SIDE GARNISH LH
(a) Attach the 3 clips to install the garnish.





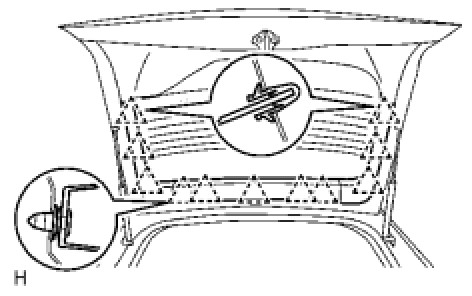

14. INSTALL BACK DOOR TRIM UPPER PANEL ASSEMBLY
(a) Attach the 11 clips to install the trim panel.

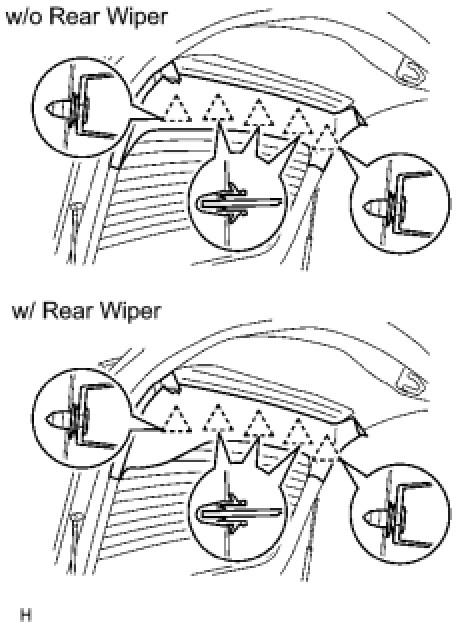

15. INSTALL BACK DOOR UPPER TRIM BOARD ASSEMBLY
(a) Attach the 5 clips to install the upper trim board.

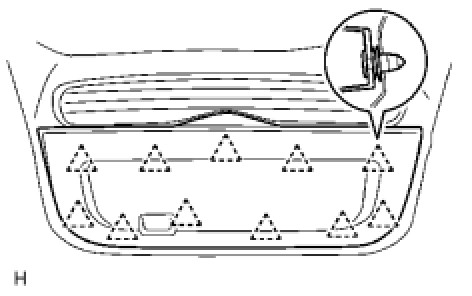

16. INSTALL BACK DOOR LOWER TRIM BOARD ASSEMBLY
(a) Attach the 11 clips to install the lower trim board.
17. INSTALL REAR WIPER ARM ASSEMBLY Installation
18. CONNECT CABLE TO BATTERY NEGATIVE TERMINAL
19. INSTALL NO. 3 REAR FLOOR BOARD
20. INSTALL REAR DECK FLOOR BOX
21. INSTALL NO. 2 REAR FLOOR BOARD
22. INSPECT SRS WARNING LIGHT
(a) Inspect the SRS warning light Diagnosis System.
23. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
