Trunk / Liftgate: Testing and Inspection

ENGINE HOOD / DOOR: BACK DOOR: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

1. INSPECT BACK DOOR

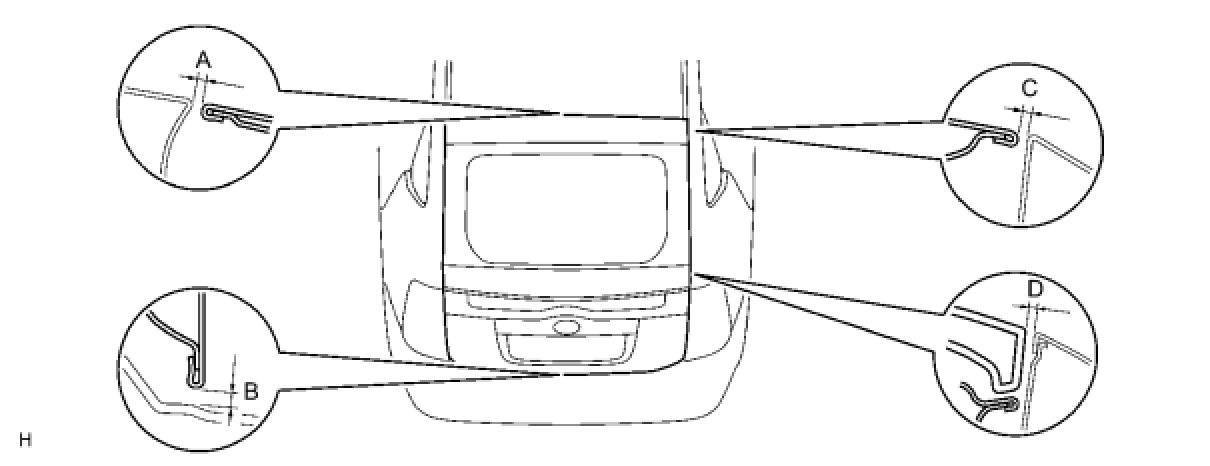

(a) Check that the clearance measurements of areas A to D are within the standard range.

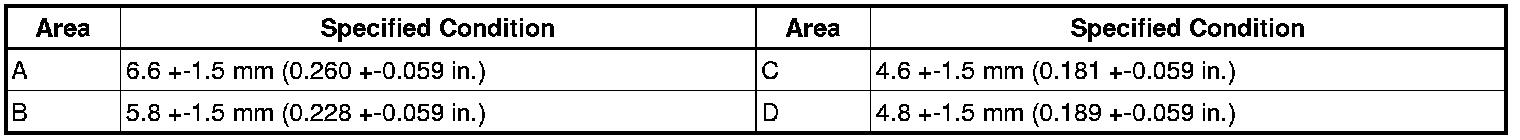

Standard measurement:
