ENGINE HOOD / DOOR: BACK DOOR SUPPORT: INSTALLATION

INSTALLATION
HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.

1. INSTALL BACK DOOR STAY ASSEMBLY LH

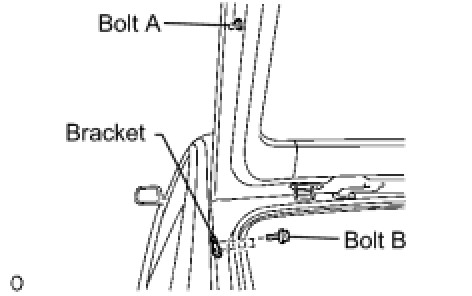

(a) Install the stay bracket with the 2 bolts.
Torque: 7.0 Nm (71 kgf-cm, 62 in-lbf)
(b) Install the back door stay bolt to the back door.
Torque: 22.0 Nm (224 kgf-cm, 16 ft-lbf) for bolt labeled A
(c) Install the stay with the 2 stop rings.
