Body Emblem: Service and Repair








EXTERIOR: NAME PLATE: REPLACEMENT

REPLACEMENT

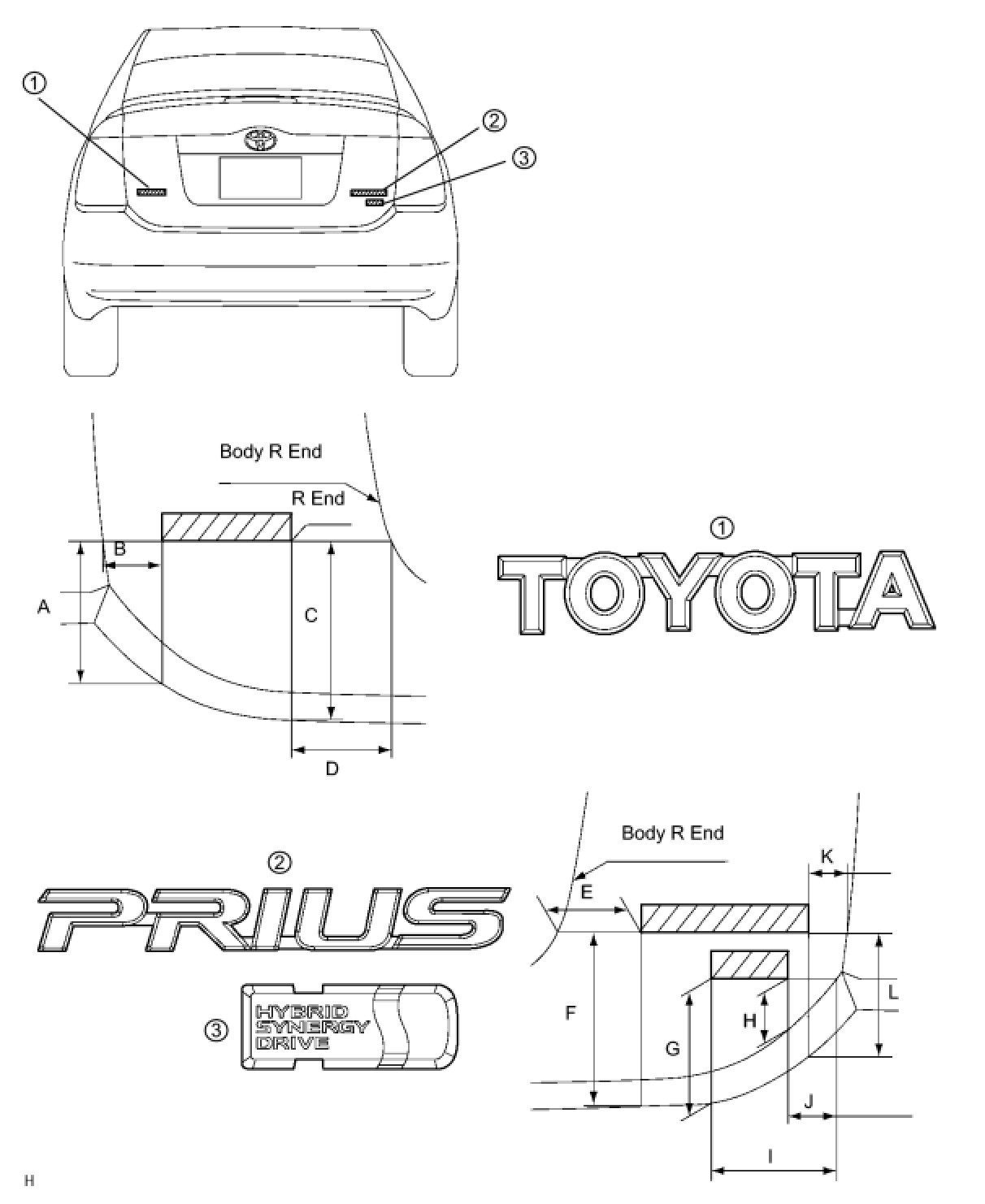

1. INSTALL NAME PLATE

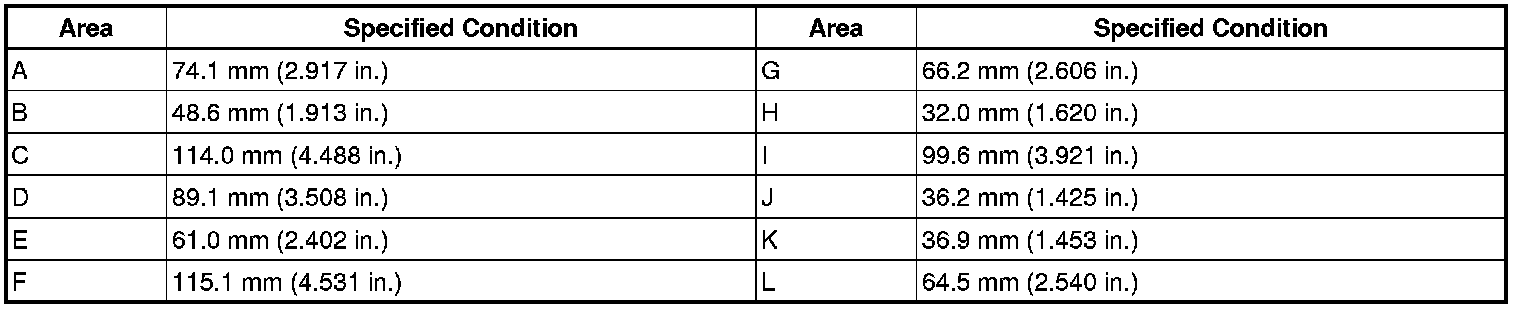

Standard measurement:
