Disassembly

INSTRUMENT PANEL: REAR CONSOLE BOX: DISASSEMBLY

DISASSEMBLY

1. REMOVE NO. 4 INSTRUMENT PANEL WIRE
2. REMOVE REAR POWER POINT SOCKET ASSEMBLY
3. REMOVE REAR POWER POINT SOCKET COVER





4. REMOVE REAR CONSOLE COMPARTMENT DOOR SUB-ASSEMBLY
HINT: While the console compartment door sub-assembly rear is part of the console box, it may be replaced on its own. Refer to the procedure below when removing it.

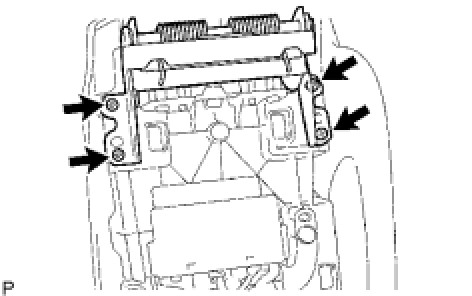

(a) Remove the 4 screws and console compartment door.
NOTE: If the screws are removed while the door is closed, the hinge spring may cause the screws to fly out. Because of this, be sure to remove the screws while the door is open.
