Removal








INTERIOR: FRONT FLOOR FOOTREST: REMOVAL

REMOVAL

1. REMOVE FRONT FLOOR FOOTREST

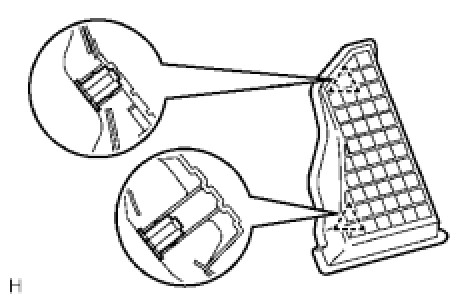

(a) Using a screwdriver, detach the 2 clips and remove the footrest.
