Front Door Lock

DOOR LOCK: FRONT DOOR LOCK: INSPECTION

INSPECTION

1. INSPECT FRONT DOOR LOCK LH

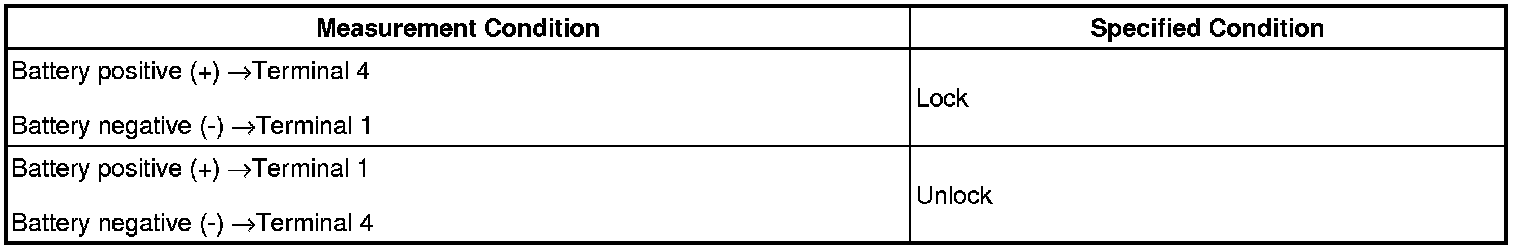

(a) Apply battery voltage to the door lock and check operation of the door lock motor.
OK:





If the result is not as specified, replace the door lock assembly.

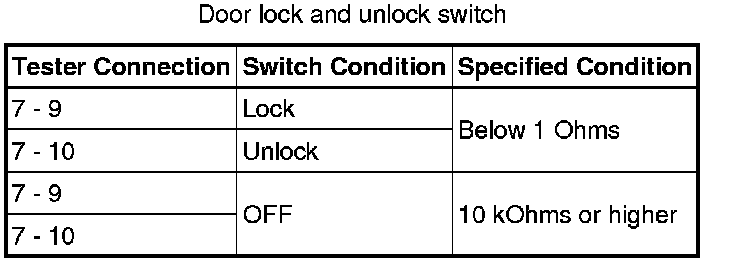

(b) Measure the resistance of the door lock and unlock switch and position switch.
Standard resistance :

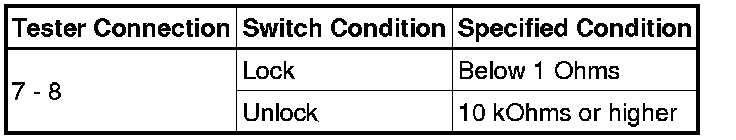

Position switch:





If the result is not as specified, replace the door lock assembly.
2. INSPECT FRONT DOOR LOCK RH





(a) Apply battery voltage to the door lock and check operation of the door lock motor.
OK:





If the result is not as specified, replace the door lock assembly.

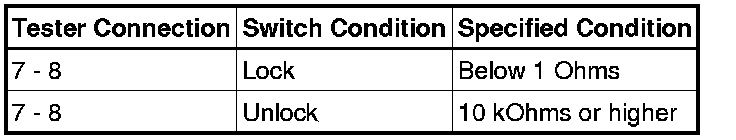

(b) Measure the resistance of the position switch.
Standard resistance :





If the result is not as specified, replace the door lock assembly.
