Rear Door Lock

DOOR LOCK: REAR DOOR LOCK: INSPECTION

INSPECTION

1. INSPECT REAR DOOR LOCK LH

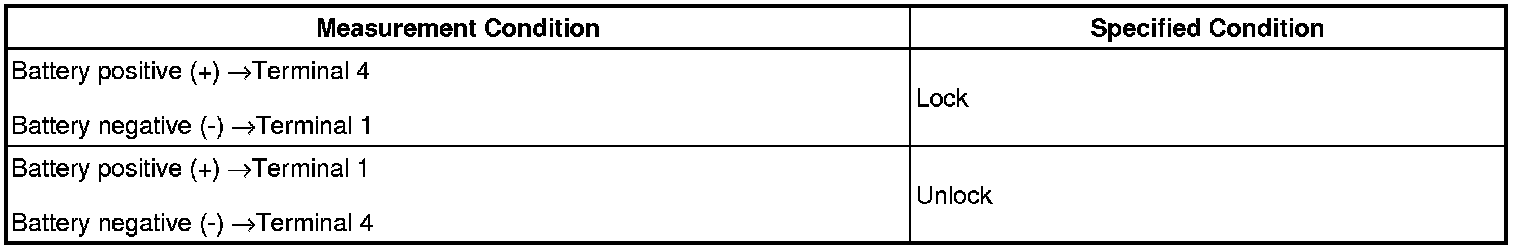

(a) Apply battery voltage to the door lock and check operation of the door lock motor.
OK:





If the result is not as specified, replace the door lock assembly.

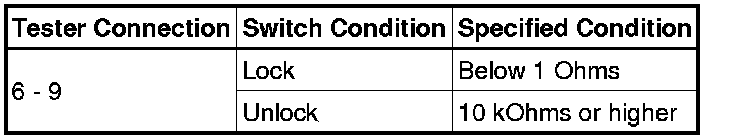

(b) Measure the resistance of the position switch.
Standard resistance:





If the result is not as specified, replace the door lock assembly.
2. INSPECT REAR DOOR LOCK RH





(a) Apply battery voltage to the door lock and check operation of the door lock motor.
OK:





If the result is not as specified, replace the door lock assembly.





(b) Measure the resistance of the position switch.
Standard resistance:





If the result is not as specified, replace the door lock assembly.
