Installation

MIRROR: INNER REAR VIEW MIRROR: INSTALLATION

INSTALLATION

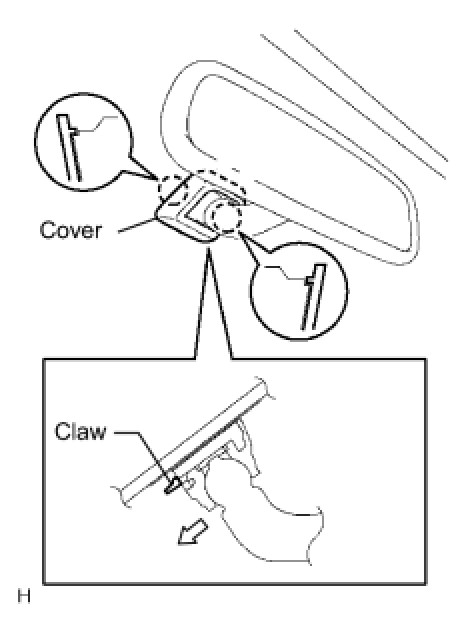

1. INSTALL INNER REAR VIEW MIRROR ASSEMBLY (w/o EC Mirror)
(a) Install the mirror in the direction of the white arrow.
(b) Install the cover as shown in the illustration.

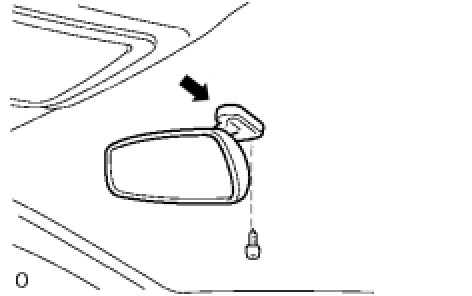

2. INSTALL INNER REAR VIEW MIRROR ASSEMBLY (w/ EC Mirror)
(a) Install the mirror.
(b) Install the screw.
(c) Install the inner rear view mirror cover.
