MIRROR: OUTER REAR VIEW MIRROR: INSTALLATION

INSTALLATION

1. INSTALL OUTER MIRROR COVER LH

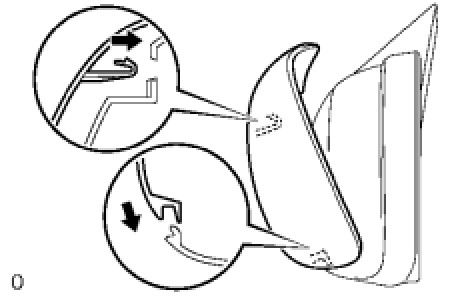

(a) Install the mirror cover as shown in the illustration.

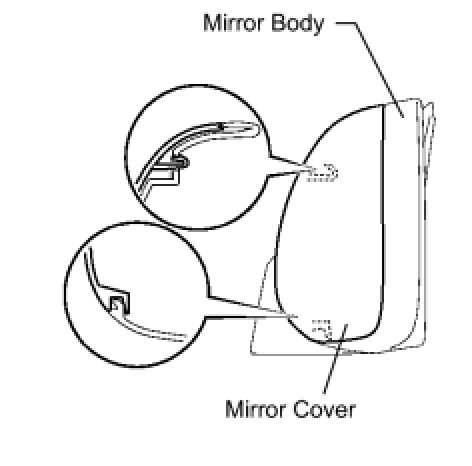

(b) Check that there is no gap between the cover and mirror body.
HINT: If there is a gap between the cover and body, noise will occur during driving.





(c) Connect the 2 connectors.

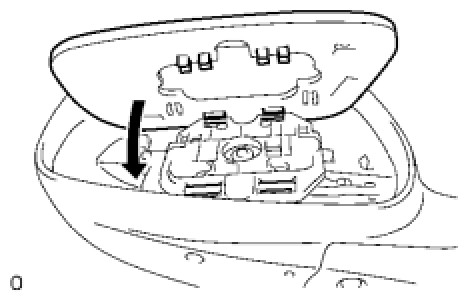

(d) Attach the 4 claws to install the mirror.





2. INSTALL OUTER REAR VIEW MIRROR ASSEMBLY LH
(a) Install the mirror with the 3 nuts.
Torque: 5.5 Nm (56 kgf-cm, 49 in-lbf)
(b) Connect the connector.
3. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH Reassembly
4. INSTALL FRONT DOOR ARMREST BASE PANEL UPPER LH Reassembly
5. INSTALL DOOR PULL HANDLE Reassembly
6. INSTALL FRONT DOOR LOWER FRAME BRACKET GARNISH LH Reassembly
7. INSTALL FRONT DOOR INSIDE HANDLE BEZEL LH Reassembly
8. PERFORM INITIALIZATION
(a) Perform initialization Standard Bolt - Specified Torque For Standard Bolts.
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
