Removal

MIRROR: OUTER REAR VIEW MIRROR: REMOVAL

REMOVAL
HINT:
- Use the same procedures for the LH side and RH side.
- The procedures listed below are for the LH side.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE FRONT DOOR INSIDE HANDLE BEZEL LH Disassembly
3. REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH LH Disassembly
4. REMOVE DOOR PULL HANDLE Disassembly
5. REMOVE FRONT DOOR ARMREST BASE PANEL UPPER Disassembly
6. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH Disassembly

7. REMOVE OUTER REAR VIEW MIRROR ASSEMBLY LH
(a) Disconnect the mirror connector.
(b) Remove the 3 nuts and mirror.
8. REMOVE OUTER REAR VIEW MIRROR ASSEMBLY LH

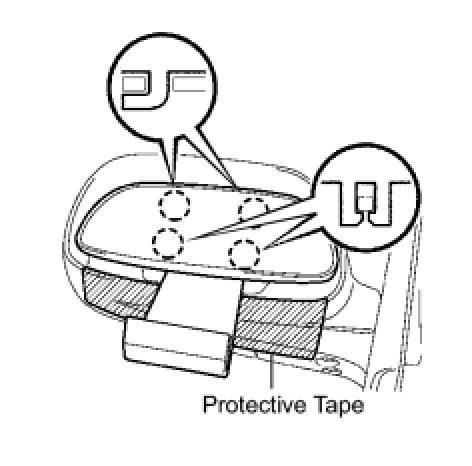

(a) Using a moulding remover, detach the 4 claws and outer rear view mirror.
HINT: Apply protective tape to the mirror body.

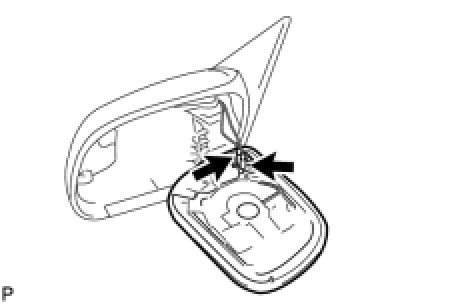

(b) Disconnect the 2 connectors and remove the mirror.
