Inner Rear View Mirror

MIRROR: INNER REAR VIEW MIRROR: INSPECTION

INSPECTION





1. INSPECT INNER REAR VIEW MIRROR ASSEMBLY (w/ EC Mirror)

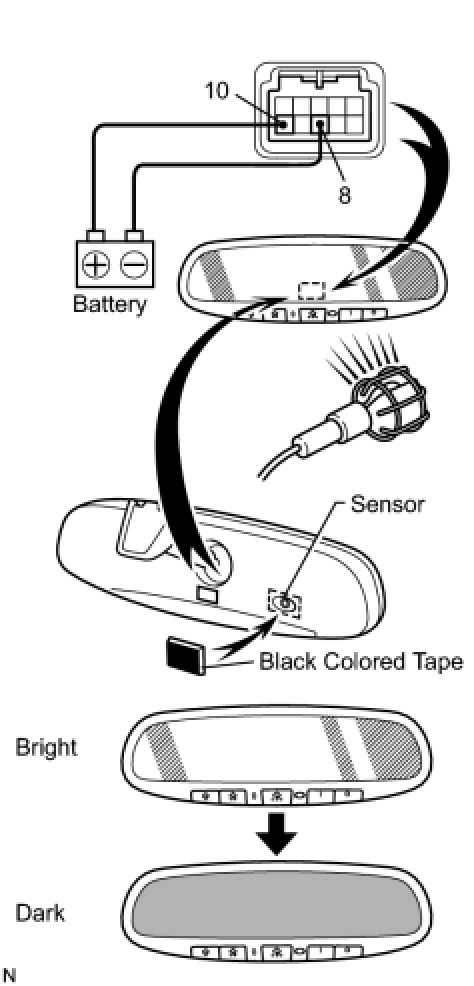

(a) Check operation of the electrochromic inner mirror.
(1) Connect the battery's positive (+) lead to terminal 10 and the negative (-) lead to terminal 8.
(2) Attach black colored tape to the forward sensor to block it.
(3) Light up the mirror with an electric light, and check that the mirror surface changes from bright to dark.
If the result is not as specified, replace the mirror assembly.
