Outer Rear View Mirror

MIRROR: OUTER REAR VIEW MIRROR: INSPECTION

INSPECTION

1. INSPECT OUTER REAR VIEW MIRROR ASSEMBLY LH





(a) Disconnect the mirror connector.

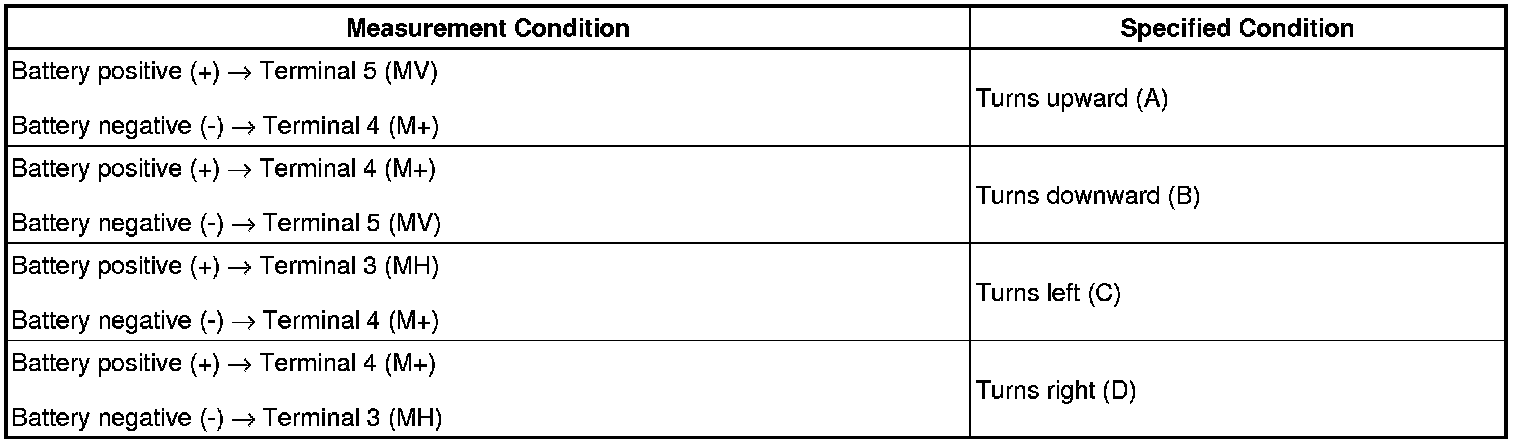

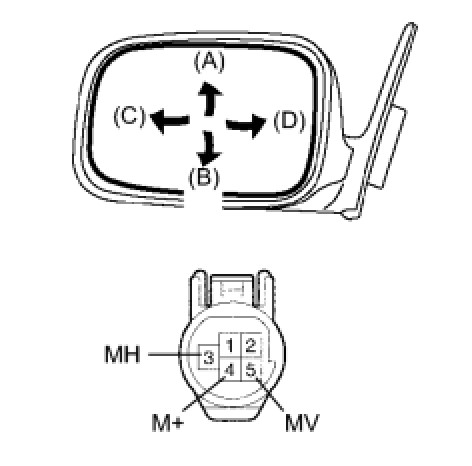

(b) Apply battery voltage and check the operation of the mirror.
OK:





If the result is not as specified, replace the mirror assembly.

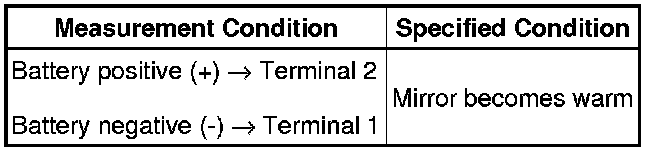

(c) Apply battery voltage to the mirror terminals and check the operation of the mirror heater.
OK:





If the result is not as specified, replace the mirror assembly.
2. INSPECT OUTER REAR VIEW MIRROR ASSEMBLY RH





(a) Disconnect the mirror connector.

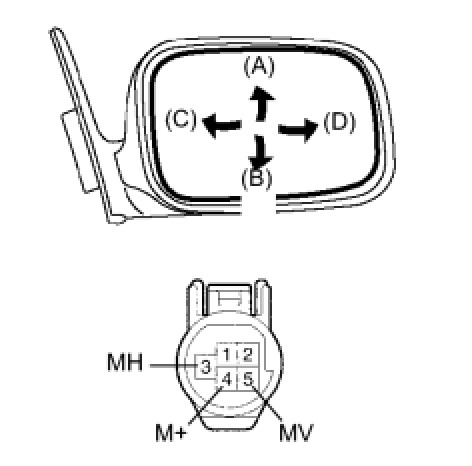

(b) Apply battery voltage and check the operation of the mirror.
OK:





If the result is not as specified, replace the mirror assembly.





(c) Apply battery voltage to the mirror terminals and check the operation of the mirror heater.
OK:





If the result is not as specified, replace the mirror assembly.
