Disassembly

SEAT: FRONT SEAT ASSEMBLY: DISASSEMBLY

DISASSEMBLY
HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.
CAUTION: Wear protective gloves. Sharp surfaces on the seat adjuster may injure your hands.

1. REMOVE RECLINING ADJUSTER RELEASE HANDLE LH

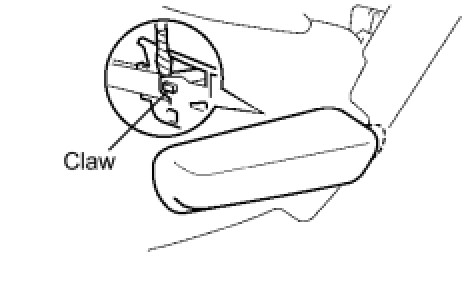

(a) Raise the reclining adjuster release handle to reveal the claw.
(b) Using a screwdriver, detach the claw and remove the release handle.
HINT: Tape the screwdriver tip before use.

2. REMOVE FRONT SEAT CUSHION SHIELD LH

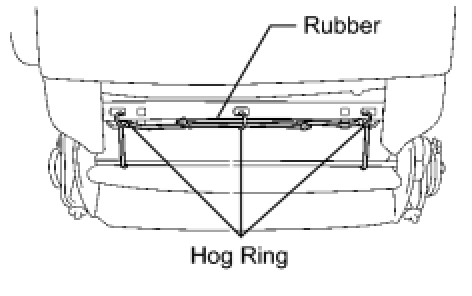

(a) Remove the 2 rubber bands from the back of the front seatback cover.





(b) Remove the 2 screws.
(c) Using a screwdriver, detach the 2 claws and clip, and remove the seat cushion shield.
HINT: Tape the screwdriver tip before use.

3. REMOVE FRONT SEAT INNER BELT ASSEMBLY LH Removal

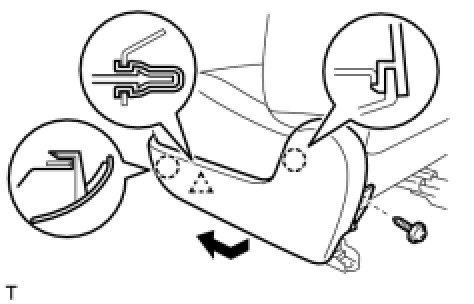

4. REMOVE FRONT SEAT CUSHION INNER SHIELD LH

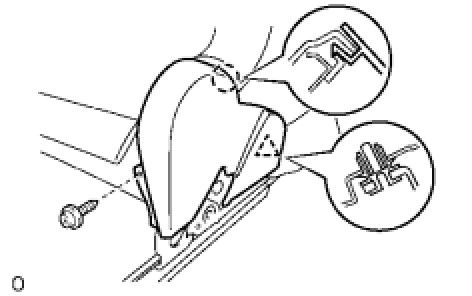

(a) Remove the screw.
(b) Using a screwdriver, detach the claw and clip, and remove the seat cushion inner shield.
HINT: Tape the screwdriver tip before use.

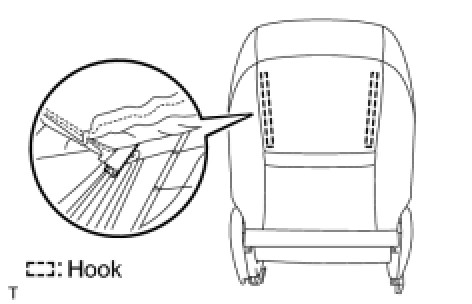

5. REMOVE FRONT SEAT CUSHION COVER
(a) Detach the hooks and remove the 2 hog rings and seat cushion cover (with pad) from the seat adjuster.

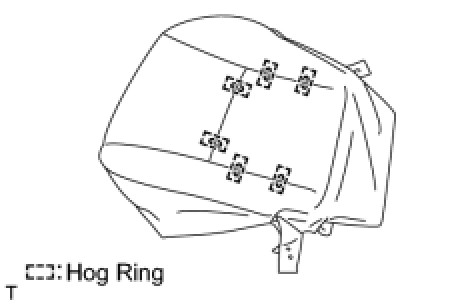

(b) Remove the 6 hog rings and seat cushion cover from the seat cushion pad.
6. REMOVE FRONT SEATBACK COVER

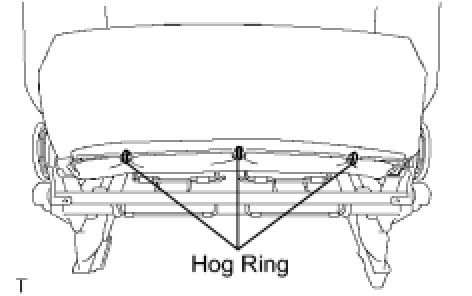

(a) Lift up the seatback cover and remove the 3 hog rings shown in the illustration.





(b) Remove the 3 hog rings shown in the illustration.





(c) Using a screwdriver, detach the 2 hooks.





(d) w/ Front Seat Side Airbag:

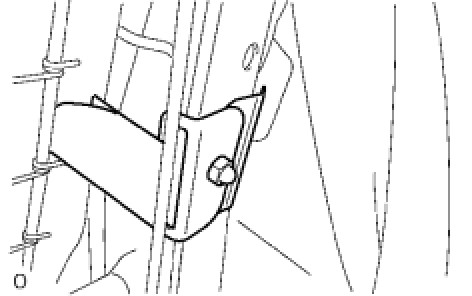

Remove the nut and 2 seatback cover brackets.

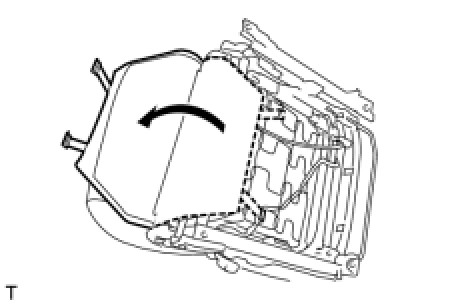

(e) Roll up the seatback cover.

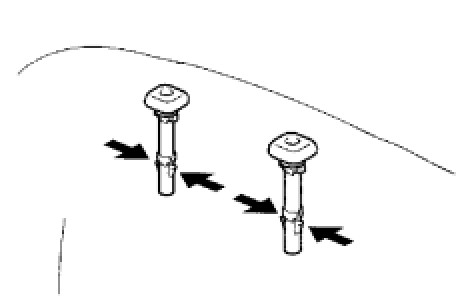

(f) Detach the 4 claws and remove the 2 headrest supports.
(g) Remove the seatback cover (with pad) from the seat adjuster.

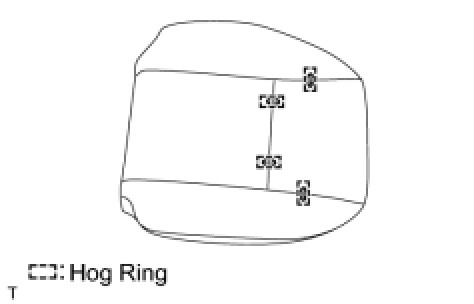

(h) Remove the 4 hog rings and seatback cover from the seatback pad.
7. REMOVE RECLINING ADJUSTER UPPER INSIDE COVER LH
(a) Remove the screw and inside cover.
8. REMOVE RECLINING ADJUSTER UPPER INSIDE COVER RH
(a) Remove the screw and inside cover.
9. REMOVE RECLINING ADJUSTER LOWER INSIDE COVER LH
(a) Remove the screw and inside cover.
10. REMOVE RECLINING ADJUSTER LOWER INSIDE COVER RH
(a) Remove the screw and inside cover.
11. REMOVE FRONT SEAT CUSHION LOWER SHIELD LH
(a) Detach the claw and remove the lower shield.
12. REMOVE FRONT SEAT CUSHION LOWER SHIELD RH
(a) Detach the claw and remove the lower shield.
13. REMOVE SEAT POSITION AIRBAG SENSOR (for Driver Side) Removal
14. REMOVE OCCUPANT DETECTION ECU (for Front Passenger Side)
