Removal

SEAT: REAR SEAT ASSEMBLY: REMOVAL

REMOVAL

1. REMOVE REAR SEAT CUSHION ASSEMBLY





(a) Detach the seat cushion's 2 front hooks from the vehicle body.
NOTE: Follow the instructions below carefully as the cushion frame deforms easily.

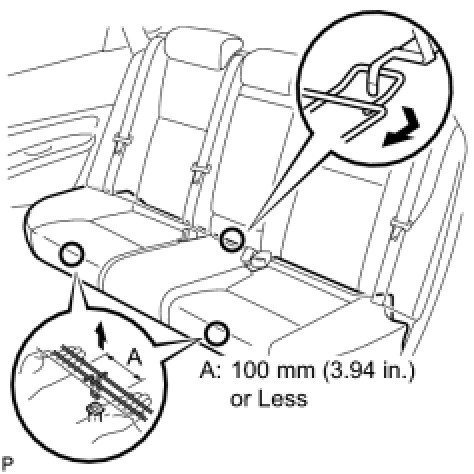

(1) Choose a hook to detach first. Place your hands near the hook as shown in the illustration. Then lift the seat cushion to detach the hook.
(2) Repeat for the other hook.
(b) Detach the seat cushion's rear hook.
(c) Remove the seat cushion.
2. REMOVE REAR SEATBACK ASSEMBLY LH
(a) Open the front part of the rear No. 1 floor deck board.
(b) Tilt the seatback down toward the front of the vehicle.

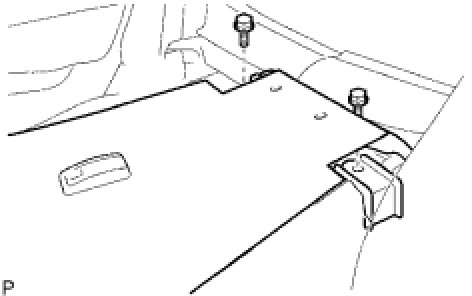

(c) Remove the 2 bolts and seatback.
3. REMOVE REAR SEATBACK ASSEMBLY RH
(a) Remove the bolt and disconnect the rear seat outer belt floor anchor.
(b) Open the front part of the rear No. 1 floor deck board.
(c) Tilt the seatback down toward the front of the vehicle.





(d) Remove the 2 bolts and seatback.
4. REMOVE REAR DOOR SCUFF PLATE LH Removal
5. REMOVE REAR DOOR SCUFF PLATE RH Removal
6. REMOVE REAR SIDE SEATBACK ASSEMBLY LH
(a) Remove the bolt and side seatback.
7. REMOVE REAR SIDE SEATBACK ASSEMBLY RH
(a) Remove the bolt and side seatback.
8. REMOVE REAR SEATBACK HINGE SUB-ASSEMBLY LH
(a) Remove the bolt and hinge.
9. REMOVE REAR SEATBACK HINGE SUB-ASSEMBLY RH
(a) Remove the bolt and hinge.
10. REMOVE REAR SEATBACK CENTER HINGE SUB-ASSEMBLY

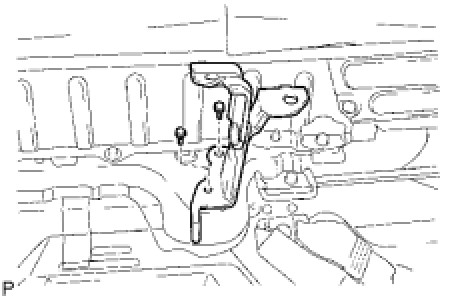

(a) Remove the 2 bolts and hinge.
