Removal

INTERIOR: FUEL LID LOCK CONTROL: REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE FRONT SEAT ASSEMBLY LH
(a) Remove the seat Removal.
3. REMOVE REAR SEAT CUSHION ASSEMBLY Removal
4. REMOVE REAR SIDE SEATBACK ASSEMBLY LH Removal
5. REMOVE FRONT DOOR SCUFF PLATE LH Removal
6. REMOVE REAR DOOR SCUFF PLATE LH Removal
7. REMOVE CENTER PILLAR LOWER GARNISH LH Removal
8. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH Removal
9. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY LH Removal
10. REMOVE FUEL LID LOCK OPEN LEVER SUB-ASSEMBLY





(a) Remove the screw while holding the lever.
(b) Disconnect the cable and remove the lever.
11. REMOVE FUEL LID LOCK CONTROL CABLE SUB-ASSEMBLY
(a) Disconnect the cable from the clamps at the location shown in the illustration.

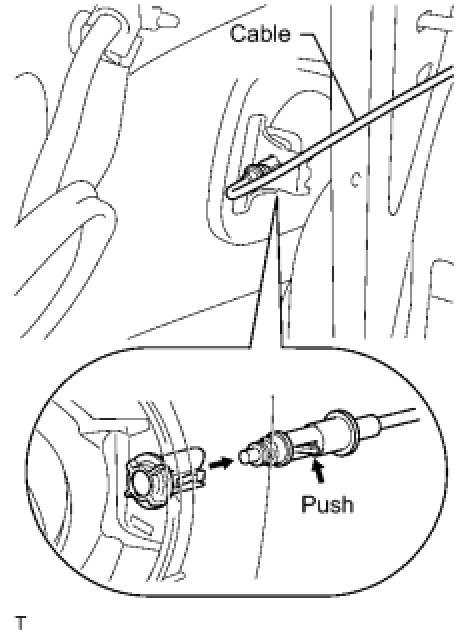

(b) Push the claw and pull out the cable.
12. REMOVE FUEL FILLER OPENING LID LOCK RETAINER





(a) Turn the lock retainer counterclockwise and remove the lock retainer as shown in the illustration.
