Removal

EXTERIOR: SIDE MUDGUARD: REMOVAL

REMOVAL
HINT:
- Use the same procedures for the LH side and RH side.
- The procedures listed below are for the LH side.

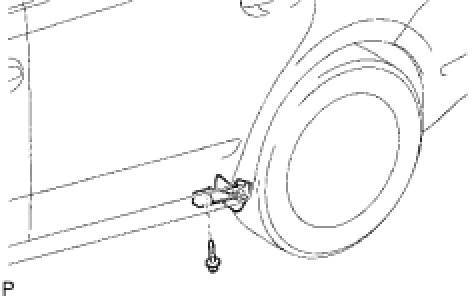

1. REMOVE REAR WHEEL HOUSE FRONT PLATE LH





(a) Remove the screw and front plate.

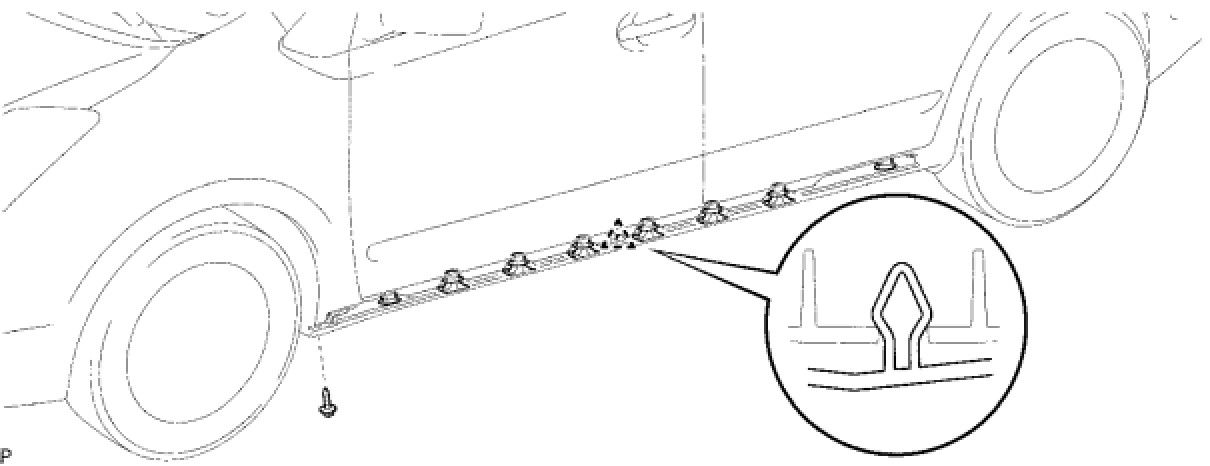

2. REMOVE SIDE MUDGUARD LH
(a) Remove the screw and 8 retainers.
(b) Detach the clip and remove the mudguard.
