Installation

BRAKE CONTROL: BRAKE CONTROL POWER SUPPLY: INSTALLATION

INSTALLATION

1. INSTALL NO. 1 BRAKE CONTROL POWER SUPPLY BRACKET
2. INSTALL NO. 2 BRAKE CONTROL POWER SUPPLY BRACKET
3. INSTALL NO. 3 BRAKE CONTROL POWER SUPPLY BRACKET

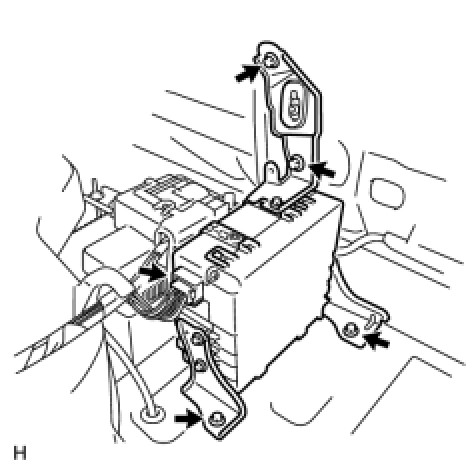

4. INSTALL BRAKE CONTROL POWER SUPPLY ASSEMBLY





(a) Install the brake control power supply with the 4 bolts.
Torque: 19 Nm (194 kgf-cm, 14 ft-lbf)
(b) Connect the brake control power supply connector.
5. INSTALL DECK TRIM SIDE PANEL ASSEMBLY RH
(a) Install the deck trim side panel RH Installation.
HINT: Refer to the procedures from the installation of the deck trim side panel assembly RH up until the installation of the rear door scuff plate RH.

6. INSTALL REAR SEAT CUSHION ASSEMBLY Installation
7. CHECK AND CLEAR DTC
(a) Check and clear the DTC Reading and Clearing Diagnostic Trouble Codes.
