VSC Warning Light Does Not Come ON

BRAKE CONTROL: ELECTRONICALLY CONTROLLED BRAKE SYSTEM: VSC Warning Light does not Come ON

VSC Warning Light does not Come ON

INSPECTION PROCEDURE

PROCEDURE

1. CHECK CAN COMMUNICATION SYSTEM
(a) Check if a CAN communication system DTC is output Diagnosis System.

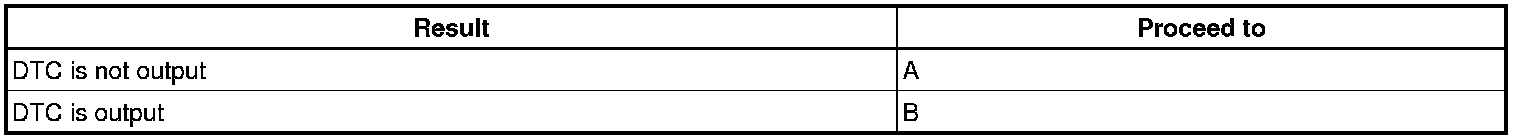

Result





B -- REPAIR CAN COMMUNICATION SYSTEM
A -- Continue to next step.

2. CHECK MULTIPLEX COMMUNICATION SYSTEM
(a) Check if a multiplex communication system DTC is output Reading and Clearing Diagnostic Trouble Codes.

Result





B -- REPAIR MULTIPLEX COMMUNICATION SYSTEM
A -- REPAIR OR REPLACE COMBINATION METER ASSEMBLY
